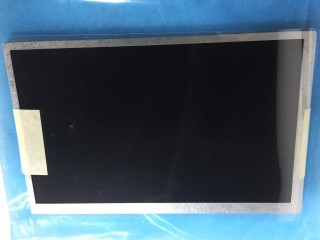

7 Inch Hight Brightness LCD Panel G070VVN01.2 WLED Backlight U/D,L/R Reverse 6/8 bit Matte
1. Main Information:
AU Optronics Corp. G070VVN01.2 is a 7Inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²).
It's general features are following: Hight Brightness, WLED Backlight, U/D,L/R Reverse, 6/8 bit, Matte , DE/HV mode selectable. Based on its features, this model be applied to Industrial etc.
2. AUO G070VVN01.2 Optical Details:
| Basic Information : | Luminance | 600 cd/m² (Typ.) | Contrast Ratio | 1500 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 10/25 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AMVA3, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.309 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6673K | White Uniformity | 1.25 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 76% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 56% coverage |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3. AUO G070VVN01.2 Mechanical Details:
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0635×0.1905 mm | Pixel Pitch(W×H) | 0.1905×0.1905 mm [133PPI] |
| Physical Size : | Active Viewing | 152.4(W)×91.44(H) mm | Overall Dim. | 164.55(W)×104.71(H) mm |
| Bezel Opening | 154.2(W)×93.24(H) mm | Overall Depth | 8.0±0.15 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 15:9 | Shape Style | - |
| Fixation : | Without |
| Other Detail : | Mass | 143g (Typ.) | Surface | Antiglare, Hard coating (3H) |
4. AUO G070VVN01.2 Interface Details:
| Signal Electrical : | Input Current | 160/197mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 528/650mW (Typ./Max.) | Signal Interface | Parallel RGB (1 ch, 6/8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FA5B050HP1 | 1 pcs | 0.5 mm | 50 pins |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
