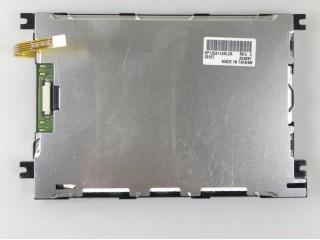

SP12Q01L0ALZA 4.7 Inch 1S7P WLED FSTN LCD Display 45/45/35/45 (Typ.)(CR≥2)

Brand Name : HITACHI

Model Number : SP12Q01L0ALZA

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Price : 70USD

Payment Terms : T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW

Supply Ability : 500PCS

Delivery Time : 1 DAY

Packaging Details : With Origianl Factory Package

Size : 4.7 Inch

Resolution : 320*240

Luminance : 200 cd/m² (Typ.)

Viewing Angle : 45/45/35/45 (Typ.)(CR≥2)

Good View at : 6 o'clock

Color Depth : Monochrome

Signal Type : Parallel Data (4-bit) , 12 pins Connector

Work Mode : STN, Black/White mode, Transmissive

Backlight : 1S7P WLED , 40K hours , No Driver

Max. Ratings : Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C

Contact Now

4.7 Inch 1S7P WLED Monochrome FSTN-LCD SP12Q01L0ALZA For Industrial

1. Main Information:
     Kaohsiung Opto-Electronics Inc.SP12Q01L0ALZA is a 4.7 inch diagonal FSTN-LCD display panel product, with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.2G (11.76 m/s²).
    It's general features are following: WLED Backlight, Matte . Based on its features,this model be applied to Industrial etc.

2. KOE SP12Q01L0ALZA Mechanical Details:
Pixel Features : Pixel Format 320×240 [QVGA] Dot Pitch 0.300×0.300 mm (H×V)
Configuration Rectangle Pixel Pitch 0.300×0.300 mm (H×V) [84PPI]
Mechanical Size : Display Area 95.97×71.97 mm (H×V) Bezel Area 104.0×79.5 mm (H×V)
Outline Dim. 129.6×92.6 mm (H×V) Outline Depth 7.5 (Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style -
Holes & Brackets : Face mounting holes (4-R1.5)
Other Features : Weight 110g (Typ.) Surface Antiglare



3.  KOE SP12Q01L0ALZA Optical Details:

Basic Information : Brightness 200 cd/m² (Typ.) Contrast Ratio 20:1 (Typ.) (Transmissive)
Viewing Angle 45/45/35/45 (Typ.)(CR≥2) Optical Mode STN, Black/White mode, Transmissive
Viewing Direction 6 o'clock Response Time 280/280 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity - Color Numbers Monochrome



4.  KOE SP12Q01L0ALZA Backlight Details:

Back-light Features: Lamp Shape Parallel Lamp Type WLED Life Time 40K(Typ.) (Hours)
Replacement - Amount 1S7P Position Edge light type
Lamp Electrical : Voltage Input 5.0±0.2V Current Input 80mA (Typ.)
Interface Features  Type Included in panel signal interface Position - Lamp Driver No



5. FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
