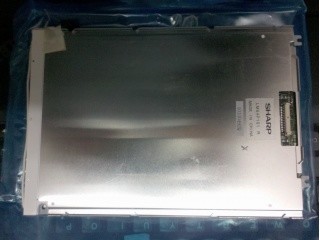

LM64P101R 7.2 INCH SHARP TFT-LCD 640×480, VGA, 110PPI PIXEL Industrial LCD Panel
1. Main Information:
The LM64P101R is a 7.2 inch diagonal FSTN-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system. Based on its features, Panelook recommend that this model be applied to Industrial etC
2. Sharp LM64P101R Mechanical Features
| Panel Size : | 7.2 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 640×480, VGA | Rectangle | 0.23×0.23 mm | 0.23×0.23 mm [110PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 147.18×110.38 mm | - | - | - |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - |
3. Sharp LM64P101R Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 70 cd/m² (Typ.) | STN, Black/White mode, Transmissive | 18:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| - | - | - |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | Monochrome | - |
4. Sharp LM64P101R Interface Features
| Interface Features : | Position | Type | Interface |
| - | Connector | Parallel Data |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| molex | 53261-1510 | 1 pcs | 1.25 mm | 15 pins |
