1. Main Information:

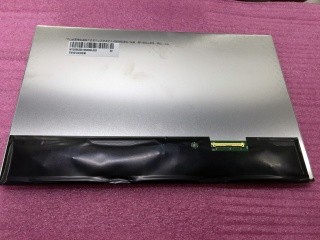

TM101JDHG30 is a 10.1" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd.with an integral WLED backlight system, With LED Driver , without touch screen.
It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are following: WLED Backlight, Life ≥ 50K hours, With LED Driver, Reverse I/F, 6/8 bit . Based on its features,this model be applied to Industrial, Medical Imaging, VOIP Phone etc.
2. TIANMA TM101JDHG30 Mechanical Features:
| Screen Size : | 10.1 Inch |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.0565×0.1695 mm | 0.1695×0.1695 mm [149PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 216.96×135.6 mm | 219.96×138.6 mm | 231.22×150.6 mm | 4.4/6.6 (Typ./Max.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | Landscape type | - |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 280g (Typ.) | - | Hard coating |
| Holes & Brackets : | Without |
3. TIANMA TM101JDHG30 Optical Features:
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 500 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 10/15 (Typ.)(Tr/Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7125K | 262K/16.7M (6-bit / 8-bit) | X:0.302; Y:0.327 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 51% | 72% | 54% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 53% | 38% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) |
4. TIANMA TM101JDHG30 Interface Features:
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 3.3V (Typ.) | 280mA (Typ.) | 924mW (Typ.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| LVDS (1 ch, 6/8-bit) | Connector | |
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | HD1S040HA1 | 1 pcs | 40 pins | 0.5 mm |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
