1. Main Information:

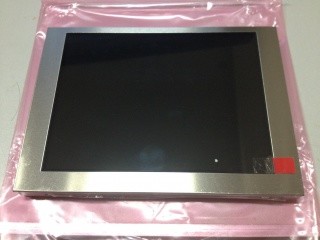

TM057KBH01 is a 5.7" diagonal a-Si TFT-LCD display panel product from Tianma Microelectronics Co., Ltd. with an integral WLED backlight system, without backlight driver, touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 85°C . It's general features are following: With Touch, WLED Backlight, Life ≥ 50K hours, U/D,L/R Reverse, Matte . Based on its features,this model be applied to Industrial etc.
2. TIANMA TM057KBH01 Mechanical Features:
| Panel Size : | 5.7 Inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 115.2×86.4 mm | 117.6×88.8 mm | 144×104.6 mm | 14.0 (Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | - |
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| - | - | - | 4-wire Resistive Touch |
| Fixation : | Rear mounting poles (4-Ф2.6) |
| Other Features : | Panel Cover | Weight | Surface |
| - | TBD | Antiglare, Hard coating (3H) |
3. TIANMA TM057KBH01 Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 320 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 70/70/70/60 (Typ.)(CR≥10) | 6 o'clock | 20 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 5814K | 262K (6-bit) | X:0.324; Y:0.362 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 73% | 56% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 55% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
4. TIANMA TM057KBH01 Interface Features:
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 145/225mA (Typ./Max.) | 3.3V (Typ.) | - |
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
| Interface Features : | Position | Type | Interface |
| - | Connector | Parallel RGB (1 ch, 6-bit) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| STARCONN | 089H33-000100-G2-R | 1 pcs | 0.5 mm | 33 pins | DRGB-33P1C6B-020B |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
