1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industria
2.NLT NL12880AC20-20D Mechanical Details:
| Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch(mm) | 0.068×0.204 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.204×0.204 (H×V) [124PPI] |
| Mechanical Size : | Active Area(mm) | 261.12(H) × 163.2(V) | Bezel Area(mm) | 265.12(H) × 167.2(V) |
| Outline Dim.(mm) | 277.7(H) × 180.6(V) | Depth(mm) | 8.7±0.5 |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4 pcs) on left, right bezel |
| Other Spec : | Weight | 500g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
3.NLT NL12880AC20-20D Optical Details:
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | UA-SFT, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 12/13 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 40% | sRGB | 56% coverage |
| Adobe RGB | 42% coverage | DCI-P3 | 41% coverage |
| Rec.2020 | 30% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.NLT NL12880AC20-20D Backlight Details:
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
| Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-S6P-HFE | 1 pcs | 6 pins | 1.25 mm | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 470/580mA (Typ./Max.) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

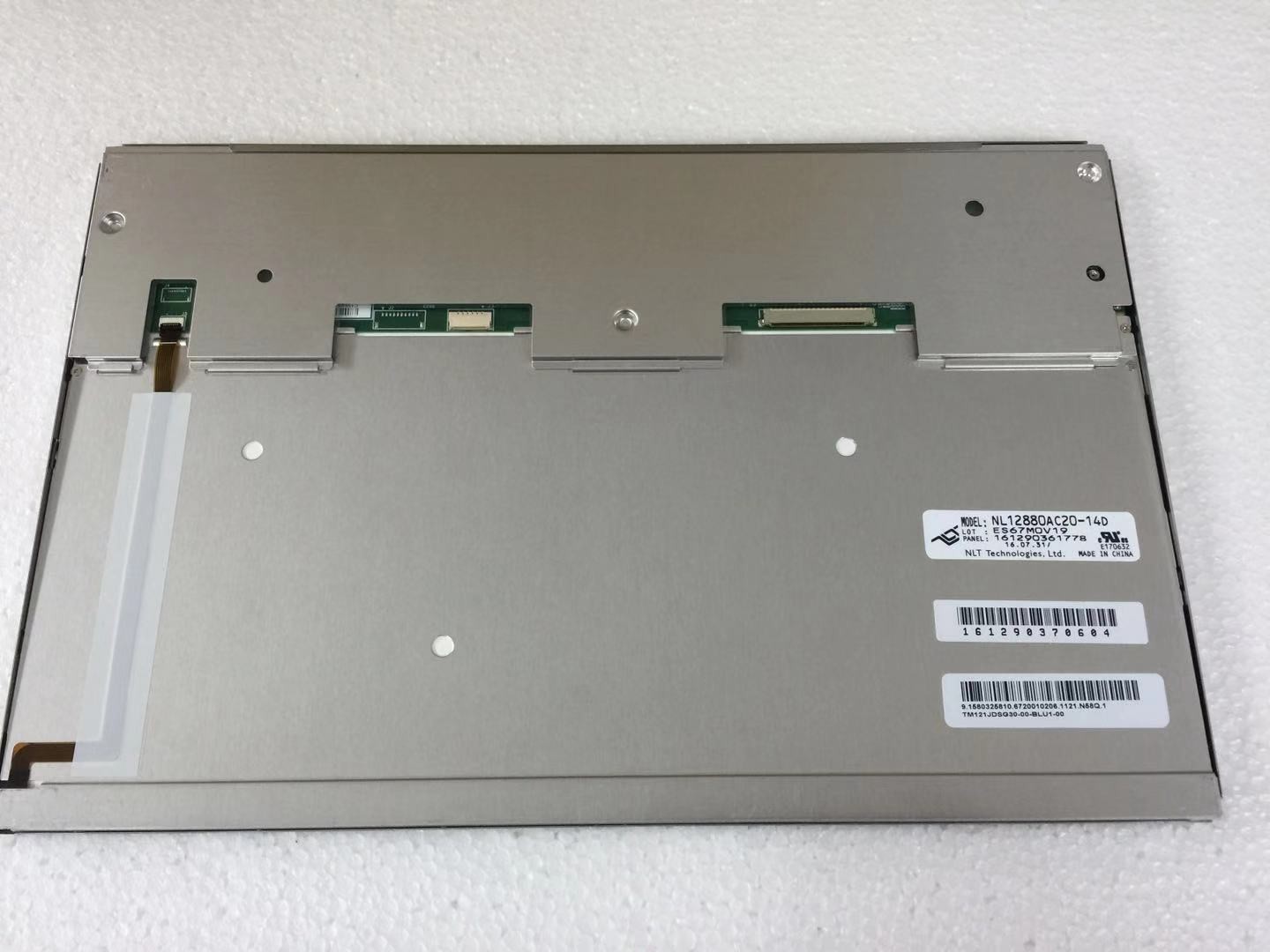

12.1 Inch 1280*8000 TFT Display NL12880AC20-20D With LED Driver Images
|
