15 Inch TFT Display NL10276BC30-17 UA-SFT 4 PCS CCFL Used For Industrial

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

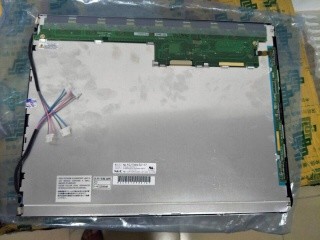

15 Inch TFT Display NL10276BC30-17 UA-SFT 4 PCS CCFL Used For Industrial

  • 1
  • 2
  • 3

Brand Name : NEC

Model Number : NL10276BC30-17

Certification : ISO9001

Place of Origin : Japan

MOQ : 1

Payment Terms : TT / Escrow 10 / Paypal / WesternUnion

Supply Ability : 500PCS

Delivery Time : 1-3 Working Day

Packaging Details : With Original Factory Package

Price : 50USD

Size : 15 Inch

Resolution : 1024(RGB)×768 (XGA) 85PPI

Panel Type : a-Si TFT-LCD , LCM

Pixel Format : RGB Vertical Stripe

Brightness : 350 cd/m² (Typ.)

Contrast Ratio : 700 : 1 (Typ.) (TM)

Viewing Angle : 88/88/88/88 (Typ.)(CR≥10)

Environment : Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 55 °C

Voltage Supply : 3.3V (Typ.)

Contact Now

1.HIGHEST QUALITY STANDARD DISPLAYS


As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.



Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.





2.NEC NL10276BC30-17 Optical Details:

Basic Information : Luminance 350 cd/m² (Typ.) Contrast Ratio 700 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 14/11 (Typ.)(Tr/Td) (ms)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10)  Operating Mode UA-SFT, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.10/1.30 (Typ./Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 75% sRGB 96% coverage
Adobe RGB 78% coverage DCI-P3 78% coverage
Rec.2020 56% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



3.NEC NL10276BC30-17 Mechanical Details:

Pixel Features : Number of Pixel 1024(RGB)×768 [XGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.099×0.297 mm Pixel Pitch(W×H) 0.297×0.297 mm [85PPI]
Physical Size : Active Viewing 304.128(W)×228.096(H) mm Overall Dim. 326.5(W)×253.5(H) mm
Bezel Opening 307.4(W)×231.3(H) mm Overall Depth 17.0 (Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 4:3 Shape Style -
Fixation : Side mounting holes (6-M3) on left, right bezel
Other Detail : Mass 1.30/1.43Kgs (Typ./Max.) Surface Antiglare, Hard coating (3H)



4.NEC NL10276BC30-17 Lightting Details:

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top and Bottom)
Exchange Replaceable (150LHS25) Amount 4 pcs Life -
Lamp Electrical : Input Current 3.0/6.0/6.5mA (Min./Typ./Max.) Input Voltage 580V (Typ.)
Frequency 38/43/48KHz (Min./Typ./Max.) Turn-on Voltage 1550/1690V (Ta=+25/0℃)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST BHR-03VS-1 4 pcs 4.0 mm 3 pins BLL-3PINS-HNL
Backlight Driver : No



  • 5. FAQ:



Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.



Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.



Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.



Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
