1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for the development of every type and class of LCD, from the design stage right through to the production phase, while guaranteeing the highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2.NEC NL10276BC20-12 Mechanical Details:
| Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.0685×0.2055 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2055×0.2055 mm (H×V) [123PPI] |
| Mechanical Size : | Display Area | 210.4×157.8 mm (H×V) | Bezel Area | 214.4×161.8 mm (H×V) |
| Outline Dim. | 231.2×174.6 mm (H×V) | Outline Depth | 5.3±0.5 mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | - |
| Holes & Brackets : | No mounting hole |
| Other Features : | Weight | 160/170g (Typ./Max.) | Surface | Clear, Hard coating (3H) |
3.NEC NL10276BC20-12 Optical Details:
| Basic Information : | Brightness | 150 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
| Viewing Angle | 45/45/40/20 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | 6 o'clock | Response Time | 3/15 (Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 39% | sRGB | 53% coverage |
| Adobe RGB | 40% coverage | DCI-P3 | 40% coverage |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.NEC NL10276BC20-12 Backlight Details:
| Back-light Features: | Lamp Shape | 5 strings | Lamp Type | WLED | Life Time | 30K(Typ.) (Hours) |
| Replacement | Replaceable (104LHS53) | Amount | - | Position | Edge light type (Bottom side) |
| Lamp Electrical : | Voltage Input | 27.9/31.5V (Typ./Max.) | Current Input | 15/15.4mA (Typ./Max.) |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM10B-SRSS-TB | 1.0 mm | 10 pins | 1 pcs | BLE-10PINS-ACACACACAC |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

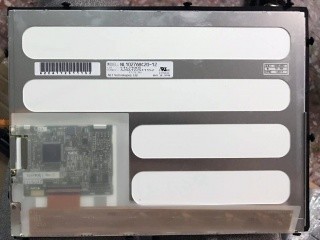

10.4 Inch TFT Display NL10276BC20-12 Lamp Repaceable Good View at 6 o'clock Images
|
