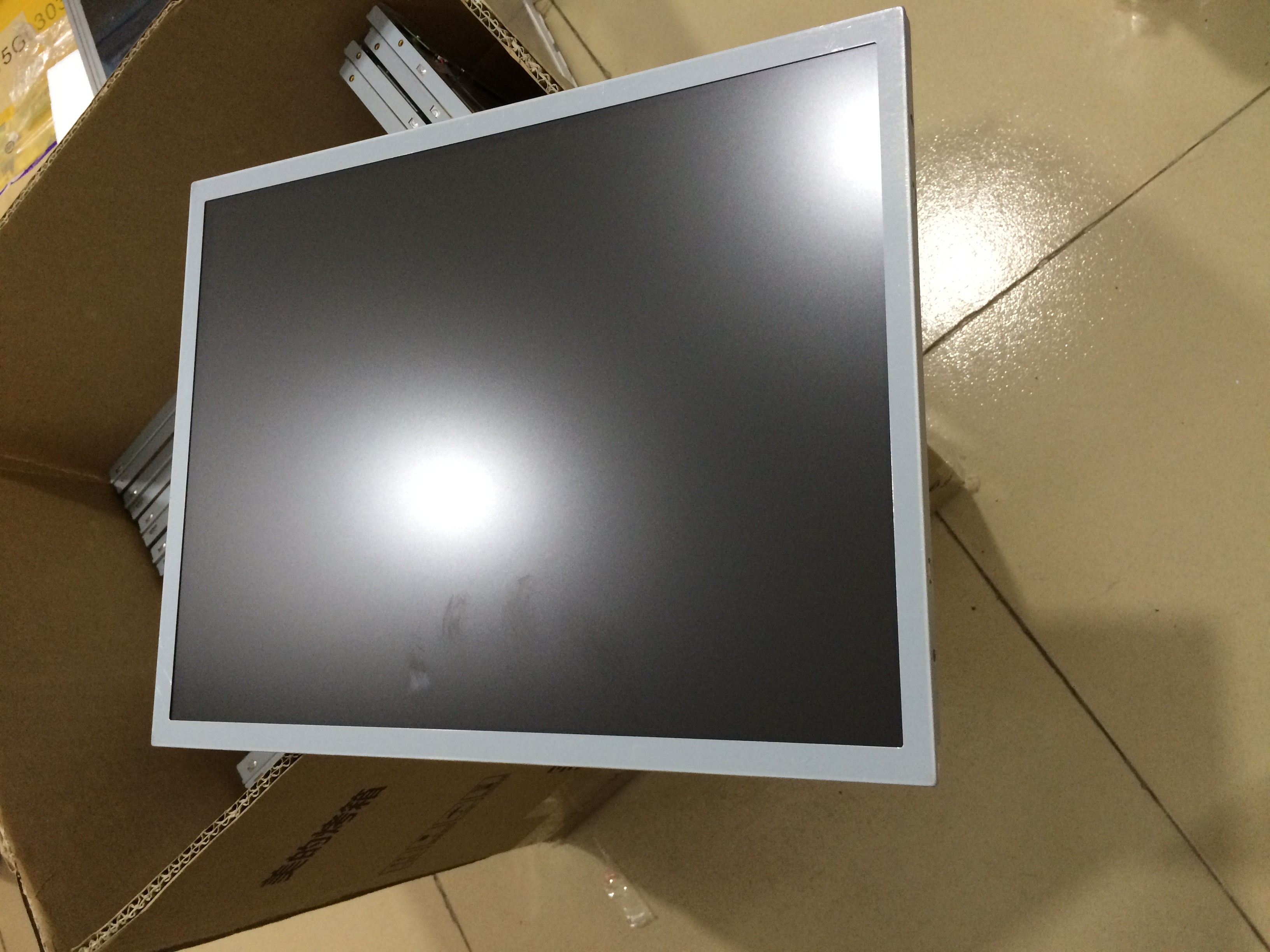

NLT NLB150XG02L-01 Application Details
| Basic Info : | Panel Brand Panel Model NLB150XG02L-01 Diagonal Size Application Panel Type a-Si TFT-LCD , LCM Model Alias - |
| Reliability : | Operating Temp. -20 ~ 70 °C Storage Temp. -30 ~ 80 °C RoHS State Vibration Rating 1.2G (11.76 m/s²) |
NLT NLB150XG02L-01 Mechanical Details
| Pixel Features : | Pixel Format 1024(RGB)×768, XGA Dot Pitch 0.099×0.297 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.297×0.297 mm (H×V) [85PPI] |
| Mechanical Size : | Display Area 304.128×228.096 mm (H×V) Bezel Area 307.4×231.3 mm (H×V) Outline Dim. 326.5×253.5 mm (H×V) Outline Depth 11.8±0.3 mm |
| Outline Features : | Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 4:3 (H:V) Shape Style |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight 930/980g (Typ./Max.) Surface Antiglare, Hard coating (3H) |
NLT NLB150XG02L-01 Optical Details
| Basic Information : | Brightness 400 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction - Response Time 3/5 (Typ.)(Tr/Td) ms |
| Color Performance : | Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K/16.7M (6-bit / 6-bit + Hi-FRC) Color Temperature 6485K Uniformity 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio 62% sRGB 84% coverage Adobe RGB 65% coverage DCI-P3 65% coverage Rec.2020 46% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
NLT NLB150XG02L-01 Backlight Details
| Back-light Features : | Lamp Type WLED Amount - Life Time 50K(Typ.) (Hours) Replacement Replaceable (150LHS204) Lamp Shape - Position Edge light type (Bottom side) |
| Interface Features : | Type Connector Position - Lamp Driver With LED Driver |
| Interface Detail : | Brand Model Pin Pitch Pins Amount Configuration STM 1.25 mm 5 pins 1 pcs |
| Driver Electrical : | Voltage Input 10.8/12.0/12.6V (Min./Typ./Max.) Current Input 480/650mA (Typ./Max.) |
NLT NLB150XG02L-01 Interface Detail
| Signal Systerm : | LVDS (1 ch, 6/8-bit) Logic Voltage - |
| Signal Electrical : | Voltage Input 3.3V (Typ.) Current Input 400/780mA (Typ./Max.) |
| Interface Features : | Type Connector Position - |
| Connector Detail : | Brand Model Pin Pitch Pins Amount Configuration P-TWO 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-080A |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|
NLB150XG02L-01 NLT 15INCH 400CD/M2 LCM 1024×768 1024×768RGB WLED LVDS Operating Temp.: -20 ~ 70 °C INDUSTRIAL LCD DISPLA Images
|
