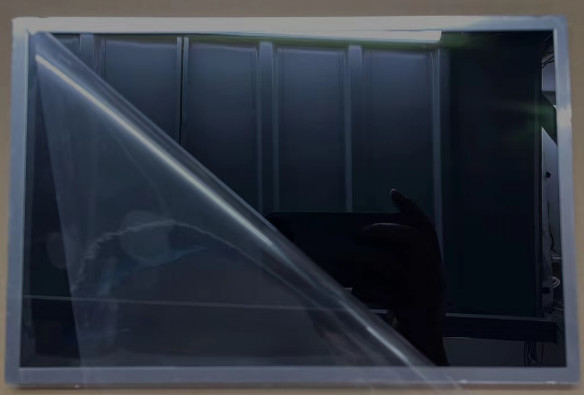

NLT NLB150XG01L-01 Application Features
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
| | NLB150XG01L-01 | a-Si TFT-LCD , LCM | - |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| | -20 ~ 70 °C | -30 ~ 80 °C | - |
NLT NLB150XG01L-01 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
| 400 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 3/5 (Typ.)(Tr/Td) |
| Best View on | Display Mode | Contrast Ratio |
| 6 o'clock | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 62% | 80% | 62% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
NLT NLB150XG01L-01 Mechanical Features
| Panel Size : | 15.0" |
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.297×0.297 [85PPI] | 0.099×0.297 |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 304.128(H) × 228.096(V) | 307.4(H) × 231.3(V) | 326.5(H) × 253.5(V) | 11.8±0.3 mm |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Detail : | Weight | Panel Cover | Treatment |
| 1.00/1.05Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) |
NLT NLB150XG01L-01 Backlight Features
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
| WLED | Edge light type (Bottom side) | - | - | 50K(Typ.) | Replaceable (150LHS201) |
| Interface Features : | Position | Backlight Driver | Type |
| - | With LED Driver | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| STM | MSB24038P5 | 1.25 mm | 5 pins | 1 pcs | |
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption |
| 10.8/12.0/12.6V (Min./Typ./Max.) | 480/650mA (Typ./Max.) | - |
NLT NLB150XG01L-01 Interface Features
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power |
| 3.3V (Typ.) | 400/780mA (Typ./Max.) | - |
| Interface Features : | Position | Signal | Type |
| - | LVDS (1 ch, 6/8-bit) | Connector |
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| P-TWO | 185083-20121 | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010K |
