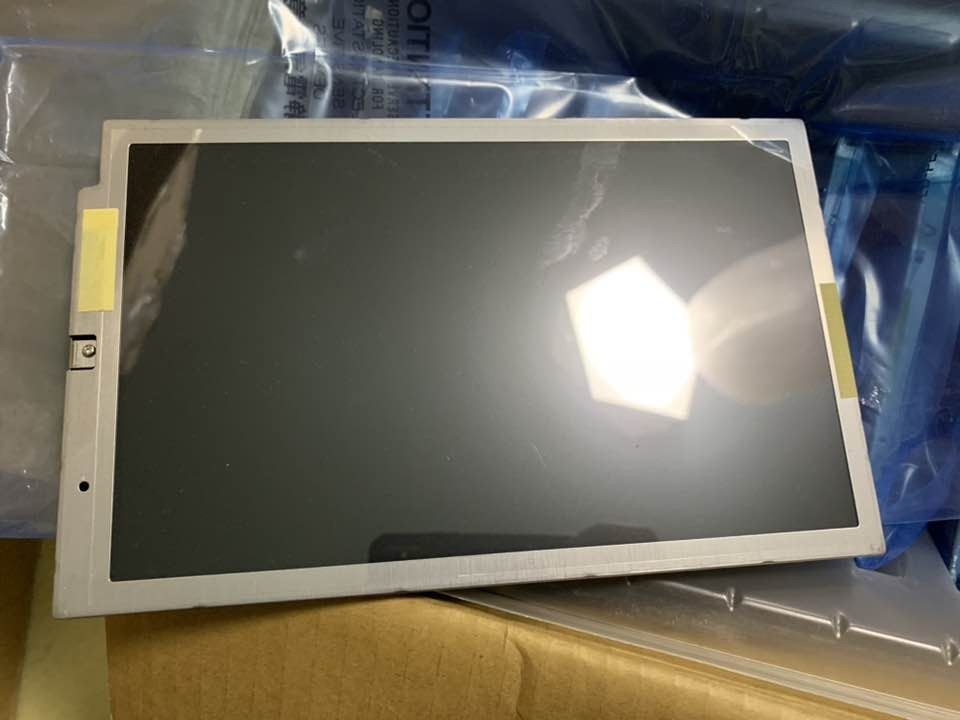

NEC NL192120AC25-02 Application Details
| Basic Detail : | Manufacturer | | Model Name | NL192120AC25-02 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - |
| Panel Size | 22.5 inch | Designed For | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.2G (11.76 m/s²) | RoHS | |
NEC NL192120AC25-02 Optical Details
| Basic Information : | Luminance | 420 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 6/6 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | UA-SFT, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (10-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Typ.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 94% | sRGB | 99% coverage |
| Adobe RGB | 97% coverage | DCI-P3 | 87% coverage |
| Rec.2020 | 70% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
NEC NL192120AC25-02 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.084×0.252 mm | Pixel Pitch(W×H) | 0.252×0.252 mm [100PPI] |
| Physical Size : | Active Viewing | 483.84(W)×302.4(H) mm | Overall Dim. | 542(W)×362(H) mm |
| Bezel Opening | 489.2(W)×306.6(H) mm | Overall Depth | 55.0±0.5 mm |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:10 | Shape Style | Normal bezel |
| Fixation : | Side mounting holes (7-M3) |
| Other Detail : | Mass | 3.45/3.65Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (2H) |
NEC NL192120AC25-02 Interface Details
| Signal Electrical : | Input Current | 0.8/1.5A (Typ./Max.) | Input Voltage | 12.0V (Typ.) |
| Consumption | - | Signal Interface | LVDS (4 ch, 10-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | |
| JAE | FI-RE41S-HF | 1 pcs | 0.5 mm | 41 pins | |
| JAE | IL-Z-12PL1-SMTYE | 1 pcs | 1.25 mm | 12 pins |
NEC NL192120AC25-02 Lightting Details
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Direct light type |
| Exchange | - | Amount | 12 pcs | Life | 45K(Typ.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF3Z-10P-2H | 1 pcs | 2.0 mm | 10 pins | |
| JAE | IL-Z-9PL-SMTYE | 1 pcs | 1.25 mm | 9 pins | |
| Backlight Driver : | With Inverter |
| Driver Electrical : | Input Current | 4.5/5.0A (Typ./Max.) | Input Voltage | 12.0V (Typ.) |
