NL6448AC33-24 10.4 NEC Lamp Repaceable INDUSTURIAL DISPLAY Storage Temp.-20 ~ 60 °C

Brand Name : NEC

Model Number : NL6448AC33-24

Certification : ISO9001

Place of Origin : Japan

MOQ : 1PCS

Payment Terms : TT / Escrow 10 / Paypal / WesternUnion

Supply Ability : 500PCS

Delivery Time : 1-3 Working Day

Packaging Details : With Original Factory Package

Resolution : 640(RGB)×480 [VGA] 76PPI

Panel Type : a-Si TFT-LCD , LCM

Pixel Format : RGB Vertical Stripe

Brightness : 190 cd/m² (Typ.)

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

Max. Ratings : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C ; Vibration Level: 2.0G (19.6 m/s²)

Contact Now

NEC NL6448AC33-24 Summary

The NL6448AC33-24 is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, With Inverter , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 2.0G (19.6 m/s²).

NEC NL6448AC33-24 Application Details

Basic Detail :	Manufacturer Model Name NL6448AC33-24 Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 10.4 inch Designed For
Maximum Ratings :	OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C RoHS Vibration Level 2.0G (19.6 m/s²)
Features :

NEC NL6448AC33-24 Optical Details

Basic Detail :	Luminance 190 cd/m² (Typ.) Contrast Ratio 150:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 50 (Typ.)(Tr+Td) ms Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode SFT, Normally Black, Transmissive
Color Performance :	Chromaticity - Support Color 262K (6-bit) Color Temperature - White Variation 1.25/1.40 (Typ./Max.)(5 points)

NEC NL6448AC33-24 Mechanical Details

Pixel Features :	Number of Pixel 640(RGB)×480, VGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.110×0.330 mm Pixel Pitch(W×H) 0.330×0.330 mm [76PPI]
Physical Size :	Active Viewing 211.2(W)×158.4(H) mm Overall Dim. 243(W)×185.1(H) mm Bezel Opening 215.4(W)×161.8(H) mm Overall Depth 10.7±0.5 mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail :	Mass 510g (Typ.)(With inverter) Surface -

NEC NL6448AC33-24 Interface Detail

Signal Electrical :	Input Current 400/300mA (Typ.)(ICC) Input Voltage 3.3/5.0V (Typ.)(VCC) Consumption - Signal Interface CMOS (1 ch, 6-bit)
Logic Voltage :	0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment HRS DF9C-31P-1V 1.0 mm 31 pins 1 pcs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

NL6448AC33-24 10.4 NEC Lamp Repaceable INDUSTURIAL DISPLAY Storage Temp.-20 ~ 60 °C

Product Tags:

LVDS TFT LCD Display

Transmissive NEC TFT Display

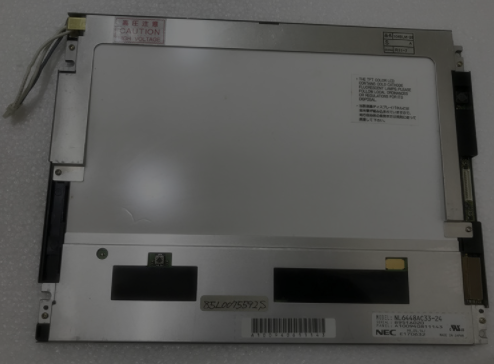

NL6448AC33-24 10.4 NEC Lamp Repaceable INDUSTURIAL DISPLAY Storage Temp.-20 ~ 60 °C Images
