NL10276BC20-18C 10.4 NEC Lamp Repaceable，WLED Backlight，Life ≥ 70K hours，180° Reverse，6/8 bit T-EVT

Brand Name : NEC

Model Number : NL10276BC20-18C

Certification : ISO9001

Place of Origin : Japan

MOQ : 1PCS

Payment Terms : TT / Escrow 10 / Paypal / WesternUnion

Supply Ability : 500PCS

Delivery Time : 1-3 Working Day

Packaging Details : With Original Factory Package

Resolution : 1024(RGB)×768 [XGA] 123PPI

Panel Type : a-Si TFT-LCD , LCM

Pixel Format : RGB Vertical Stripe

Brightness : 800 cd/m² (Typ.)

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

Max. Ratings : Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)

Panel Size : 10.4 inch

Contact Now

NEC NL10276BC20-18C Overview

NL10276BC20-18C is a 10.4" diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²).

NEC NL10276BC20-18C Mechanical Features

Panel Size :	10.4 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1024(RGB)×768, XGA	RGB Vertical Stripe	0.0685×0.2055 mm	0.2055×0.2055 mm [123PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	210.4×157.8 mm	215.4×161.8 mm	228×178.5 mm	8.7±0.5 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	380/400g (Typ./Max.)	Clear, Hard coating (2H), Antireflection

NEC NL10276BC20-18C Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	800 cd/m² (Typ.)	TN, Normally White, Transmissive	900:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	80/80/80/80 (Typ.)(CR≥10)	6 o'clock	3/15 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	262K/16.7M (6-bit / 8-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	38%	54%	40%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	40%	29%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.25/1.40 (Typ./Max.)(5 points)
Performance :	3D Type	Outdoor Visibility	Reflectance
Performance :	-	Sunlight Readable	-

NEC NL10276BC20-18C Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type (Top side)	5 strings	5 strings	70K(Typ.)	Replaceable (104LHS50)
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	50/55mA (Typ./Max.)		21.2/24.0/27.2V (Min./Typ./Max.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	SM10B-SRSS-TB	1 pcs	1.0 mm	10 pins	BLE-10PINS-ACACACACAC

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

NL10276BC20-18C 10.4 NEC Lamp Repaceable，WLED Backlight，Life ≥ 70K hours，180° Reverse，6/8 bit T-EVT

Product Tags:

LVDS TFT LCD Display

Transmissive NEC TFT Display

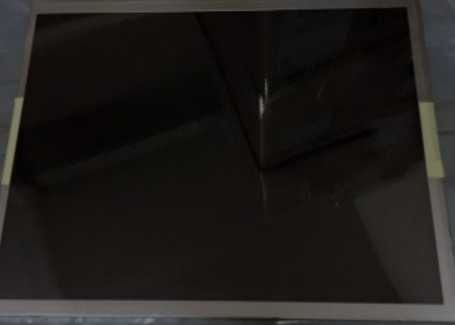

NL10276BC20-18C 10.4 NEC Lamp Repaceable，WLED Backlight，Life ≥ 70K hours，180° Reverse，6/8 bit T-EVT Images
