NL10276BC20-06Y 10.4 NEC TN, Normally White, Transmissive LVDS (1 ch, 6-bit) , 20 pins Connector

Brand Name : NEC

Model Number : NL10276BC20-06Y

Certification : ISO9001

Place of Origin : Japan

MOQ : 1PCS

Payment Terms : TT / Escrow 10 / Paypal / WesternUnion

Supply Ability : 500PCS

Delivery Time : 1-3 Working Day

Packaging Details : With Original Factory Package

Resolution : 1024(RGB)×768 [XGA] 123PPI

Panel Type : a-Si TFT-LCD, LCM

Pixel Format : RGB Vertical Stripe

Brightness : 300 cd/m² (Typ.)

Viewing Angle : 60/60/45/60 (Typ.)(CR≥10)

Diagonal Size : 10.4 Inch

Power Supply : 3.3V

Contact Now

NEC NL10276BC20-06Y Summary

The NL10276BC20-06Y is a 10.4 inch diagonal a-Si TFT-LCD display panel product from NEC LCD Technologies, Ltd. (hereafter called NEC), with an integral CCFL backlight system, without backlight driver, without touch screen. It's general features are summarized by Panelook in the following: Lamp Repaceable, 180° Reverse . Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in Panelook this model mass production on Q4, 2002, Now this model is discontinued. There are 4 items stock and 4 suppliers of this model on Panelook. We inputted this model's specification on Jan 5 2011 for the first time, and the latest update on Feb 14 2017. If you want to embed NL10276BC20-06Y LCM in your future product, Panelook strongly recommend that you should contact with NEC or it's agent to learn lateast production and specification detail. The NL10276BC20-06Y production status marked on Panelook.com is for reference only and should not be used as the basis for the user's decision making. All specification details are inputted by Panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

NEC NL10276BC20-06Y Mechanical Features

Panel Size :	10.4 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1024(RGB)×768, XGA	RGB Vertical Stripe	0.0685×0.2055 mm	0.2055×0.2055 mm [123PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	210.4×157.8 mm	-	243×185.1 mm	17.6 (Typ.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Fixation :	Face mounting holes (2-Φ3.5, 2-R1.75)
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	TBD	Clear, Hard coating (3H)

NEC NL10276BC20-06Y Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	300 cd/m² (Typ.)	TN, Normally White, Transmissive	300:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	60/60/45/60 (Typ.)(CR≥10)	6 o'clock	10/40 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	-	262K (6-bit)	-

NEC NL10276BC20-06Y Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	CCFL	Edge light type (Top side)	Straight	2 pcs	-	Replaceable (104LHS35)
CCFL Electrical :	Current Input		Voltage Input			Consumption
	2.0/5.0/5.5mA (Min./Typ./Max.)		520V (Typ.)			5.21W (Typ.)
	Turn-on Voltage		Lamp Frequency
	850/1100V (Min.)(Ta=+25/0℃)		60/65/70KHz (Min./Typ./Max.)
Interface Features :	Position	Type	CCFL Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	BHR-03VS-1	1 pcs	4.0 mm	3 pins	BLL-3PINS-LHH

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

NL10276BC20-06Y 10.4 NEC TN, Normally White, Transmissive LVDS (1 ch, 6-bit) , 20 pins Connector

Product Tags:

LVDS TFT LCD Display

Transmissive NEC TFT Display

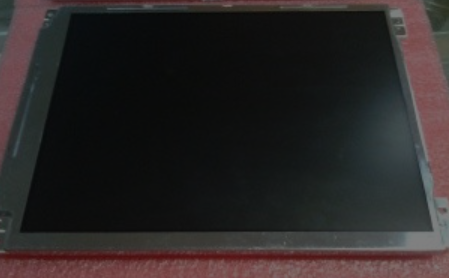

NL10276BC20-06Y 10.4 NEC TN, Normally White, Transmissive LVDS (1 ch, 6-bit) , 20 pins Connector Images
