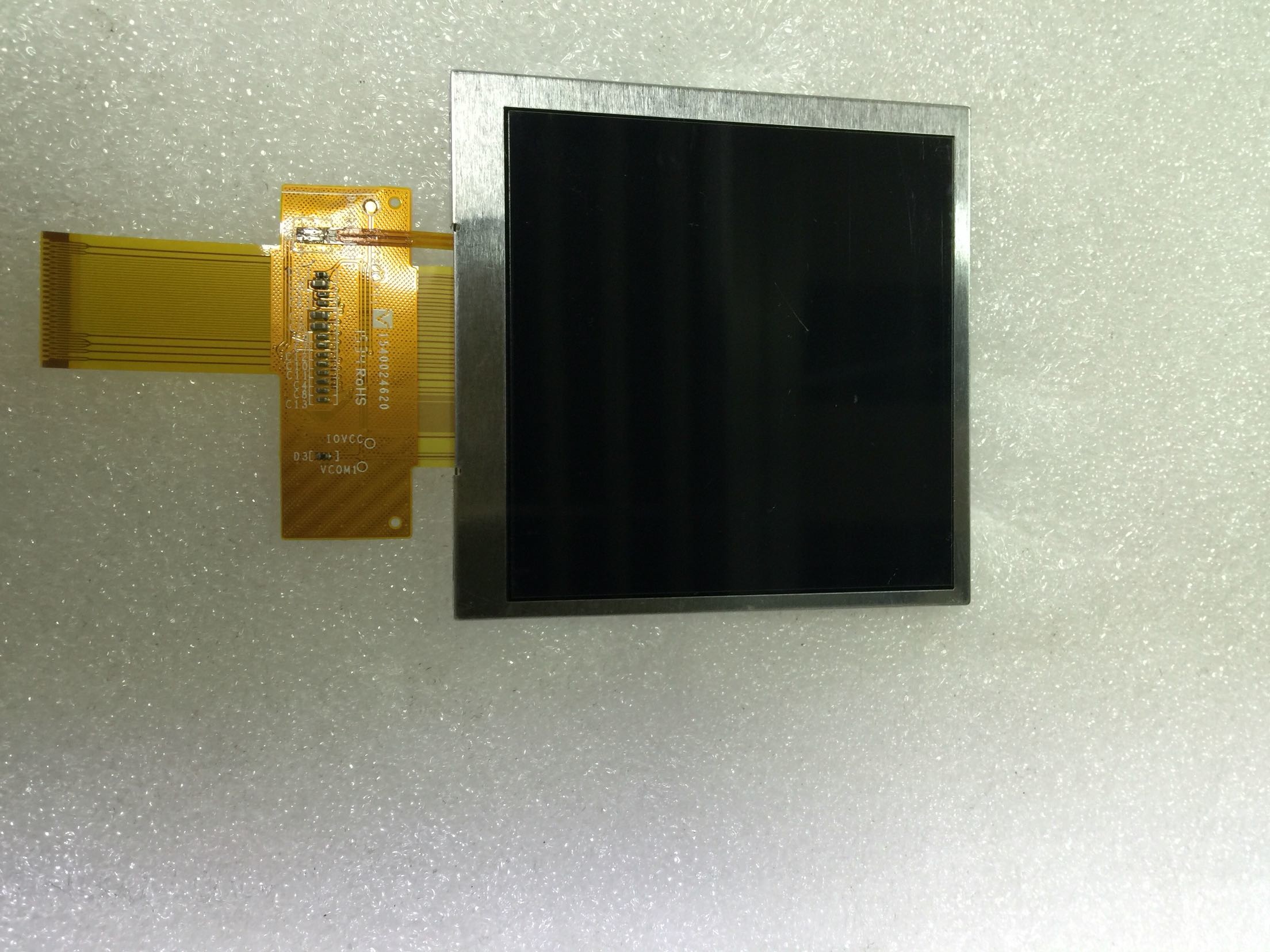

TIANMA TM030ZDHG01 Application Details
| Basic Info : | Panel Brand | | Panel Model | TM030ZDHG01 |
| Diagonal Size | 3.0" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
| Reliability : | Operating Temp. | -30 ~ 70 °C | Storage Temp. | -40 ~ 85 °C |
TIANMA TM030ZDHG01 Mechanical Details
| Pixel Features : | Pixel Format | 320(RGB)×320 | Dot Pitch | 0.056×0.168 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.168×0.168 mm (H×V) [151PPI] |
| Mechanical Size : | Display Area | 53.76×53.76 mm (H×V) | Bezel Area | 54.76×54.76 mm (H×V) |
| Outline Dim. | 68.5×66.6 mm (H×V) | Outline Depth | 3.6±0.2 mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 1:1 (H:V) | Shape Style | |
| Holes & Brackets : | Without |
| Other Features : | Weight | 30.0g (Typ.) | Surface |
TIANMA TM030ZDHG01 Optical Details
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | - | Response Time | 20 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.328 | Color Numbers | 262K (6-bit) |
| Color Temperature | 7231K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 70% | sRGB | 97% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 73% coverage |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM030ZDHG01 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 330mW (Typ.) |
| D-IC Detail : | COG Built-in ILI9488 |
TIANMA TM030ZDHG01 Backlight Details
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 20K(Typ.) (Hours) |
| Replacement | - | Amount | 4S1P | Position | Edge light type |
| Lamp Electrical : | Voltage Input | 15V (Typ.) | Current Input | 20mA (Typ.) |
| Consumption | 300mW (Typ.) |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | No |
TIANMA TM030ZDHG01 Interface Details
| Signal Systerm : | CPU/RGB/SPI | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 1.8/2.8V (Typ.)(IOVCC/VCC) | Current Input | - |
| Consumption | 33.6/42mW (Typ./Max.) |
| Interface Features : | Type | FPC | Position | - | |
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| | | 0.3 mm | 45 pins | 1 pcs | |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.76(W)×53.76(H) mm, outline size of 68.5(W)×66.6(H)×3.8(D) mm, viewing area size of 54.76(W)×54.76(H) mm, net weight of 30.0g (Typ.). As a TN, Normally White, Transmissive LCM product, TM030ZDHG01 can provides 450 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 70% (NTSC). This product adopted 4S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM030ZDHG01 utilizes CPU/RGB/SPI as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 1.8/2.8V (Typ.)(IOVCC/VCC)
