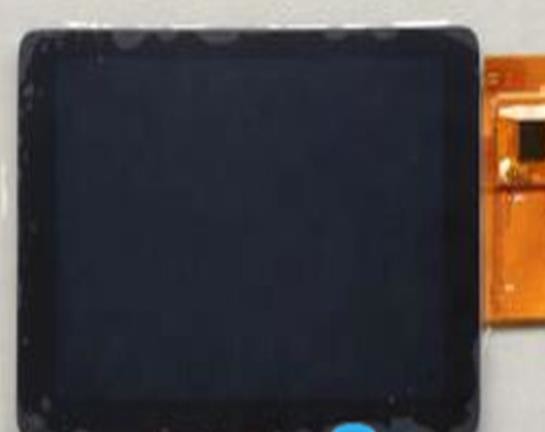

TM041XDHC02 TIANMA 4.1" 720(RGB)×720 300 cd/m² INDUSTRIAL LCD DISPLAY

Name: TM041XDHC02 TIANMA 41quot 720RGB720 300 cdm INDUSTRIAL LCD DISPLAY
Brand: TIANMA
Price: 1 USD

Buy cheap TM041XDHC02 TIANMA 4.1" 720(RGB)×720 300 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : TIANMA

Model Number : TM041XDHC02

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 300PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM041XDHC02

BRAND : TIANMA

SIZE : 4.1INCH

RESOLUTION : 720(RGB)×720, 247PPI

BRIGHTNESS : 300CD/M2

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM041XDHC02 Application Details

Basic Detail :	Manufacturer		Model Name	TM041XDHC02
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	4.1 inch	Designed For
Maximum Ratings :	OP Temperature	-20 ~ 70 °C	ST Temperature	-30 ~ 80 °C
Maximum Ratings :	Vibration Level	-	RoHS
Features :

TIANMA TM041XDHC02 Optical Details

Basic Information :	Luminance	300 cd/m² (Typ.)	Contrast Ratio	1200 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	35 (Typ.)(Tr+Td) (ms)
	Viewing Angle	80/80/80/80 (Typ.)(CR≥10)	Operating Mode	SFT, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.279; Wy:0.295	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	9816K	White Uniformity	1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	68%	sRGB	94% coverage
	Adobe RGB	71% coverage	DCI-P3	70% coverage
	Rec.2020	51% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM041XDHC02 Mechanical Details

Pixel Features :	Number of Pixel	720(RGB)×720	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.03425×0.10275 mm	Pixel Pitch(W×H)	0.10275×0.10275 mm [247PPI]
Physical Size :	Active Viewing	73.98(W)×73.98(H) mm	Overall Dim.	77.98(W)×82(H) mm
Physical Size :	Bezel Opening	74.78(W)×74.78(H) mm	Overall Depth	2.13 (Typ.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	1:1	Shape Style
Touchscreen :	TP Controller	With touch controller	TP Interface	I²C
Touchscreen :	Touch Points	2 points	TP Technology	In-Cell Touch
Other Detail :	Mass	27.5g (Typ.)	Surface	Hard coating

TIANMA TM041XDHC02 Electronics Details

Reverse Scan :	No
Driver IC :	COG Built-in ILI9881H

TIANMA TM041XDHC02 Interface Details

Signal Electrical :	Input Current	-		Input Voltage	1.8/3.3/5.7/-5.7V (Typ.)(IOVCC/VCCB/AVDD/AVEE)
Signal Electrical :	Consumption	80mW (Typ.)	Signal Interface	MIPI (4 data lanes)
Interface Features :	Position	-	Physical Type	FPC
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :			1 pcs	0.5 mm	40 pins

TIANMA TM041XDHC02 Lightting Details

Lamp Features:	Lamp Shape	Array	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	3S4P	Life	30K(Typ.) (Hours)
Lamp Electrical :	Input Current	80/100mA (Typ./Max.)		Input Voltage	9.8/11.05V (Typ./Max.)
Lamp Electrical :	Consumption	0.78/1.11W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Included in panel signal interface
Backlight Driver :	No

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours
