6.5" RGB 640×480 400cd/m2 Tianma LCD TFT TM065QDHG01-00 VGA 122PPI

Brand Name : TIANMA

Model Number : TM065QDHG01-00

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM065QDHG01-00

BRAND : TIANMA

SIZE : 6.5 inch

RESOLUTION : 640(RGB)×480, VGA, 122PPI

BRIGHTNESS : 400 cd/m² (Typ.)

Viewing Angle : 70/70/60/70 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM065QDHG01-00 Application Features

Basic Information : Brand Model Type Model Alias
  TM065QDHG01-00 a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  -20 ~ 70 °C -30 ~ 80 °C -
Designed For :
Specific Features :







TIANMA TM065QDHG01-00 Mechanical Features

Panel Size : 6.5 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
640(RGB)×480, VGA RGB Vertical Stripe 0.069×0.207 mm 0.207×0.207 mm [122PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
132.48×99.36 mm 135.48×102.36 mm 158×120.04 mm 7.0 (Typ.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Fixation : Rear mounting holes (4-R1.75)
Other Features : Panel Cover Weight Surface
- TBD Antireflection



TIANMA TM065QDHG01-00 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
400 cd/m² (Typ.) TN, Normally White, Transmissive 500:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
70/70/60/70 (Typ.)(CR≥10) 12 o'clock 20 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
7592K 262K (6-bit) X:0.293; Y:0.332
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
53% 73% 56%
DCI-P3 Coverage Rec.2020 Coverage Remarks
55% 40% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation : 1.25 (Typ.)(5 points)



TIANMA TM065QDHG01-00 Electronics Features

Frame Rate : 60Hz
Reverse Scan : Yes (180°)



TIANMA TM065QDHG01-00 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
- 3.3/5.0V (Typ.)(VCC) -
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Position Type Interface
- Connector Parallel RGB (1 ch, 6-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
HRS DF9B-31P-1V 1 pcs 1.0 mm 31 pins

DRGB-31P1C6B-010F





TIANMA TM065QDHG01-00 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type Array 6S3P 50K(Typ.) -
WLED Electrical : Current Input Voltage Input Consumption
75mA (Typ.) 20V (Typ.)
Interface Features : Position Type WLED Driver
- Connector No
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
JST BHSR-02VS-1 1 pcs 3.5 mm 2 pins BLE-2PINS-AC



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

6.5" RGB 640×480 400cd/m2 Tianma LCD TFT TM065QDHG01-00 VGA 122PPI


Product Tags:

RGB 640×480 Tianma LCD TFT



400cd/m2 Tianma LCD TFT



VGA 122PPI Tianma Panel


Buy cheap 6.5" RGB 640×480 400cd/m2 Tianma LCD TFT TM065QDHG01-00 VGA 122PPI product

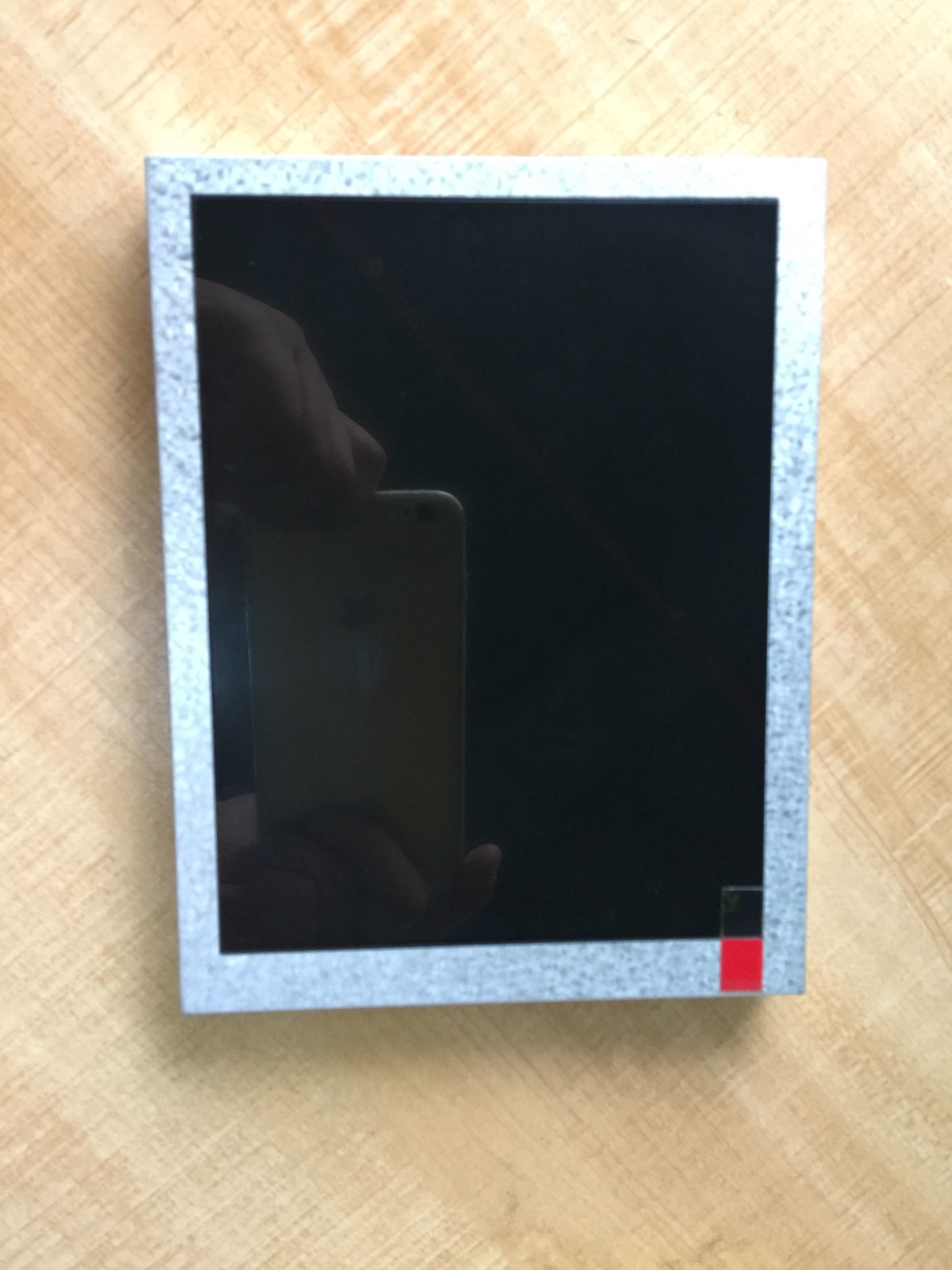

6.5" RGB 640×480 400cd/m2 Tianma LCD TFT TM065QDHG01-00 VGA 122PPI Images
