TM101JDHG38 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : TIANMA

Model Number : TM101JDHG38

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM101JDHG38

BRAND : TIANMA

SIZE : 10.41inch

RESOLUTION : 1280(RGB)×800 [WXGA] 149PPI

BRIGHTNESS : 400 cd/m² (Typ.)

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Contact Now



TIANMA TM101JDHG38 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  TM101JDHG38 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -20 ~ 70 °C -30 ~ 80 °C



TIANMA TM101JDHG38 Mechanical Features

Screen Size : 10.1"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1280(RGB)×800, WXGA RGB Vertical Stripe 0.0565×0.1695 mm 0.1695×0.1695 mm [149PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
216.96×135.6 mm 219.96×138.6 mm 231.22×150.6 mm 4.4/6.6 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:10 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
276g - Hard coating
Holes & Brackets : Without



TIANMA TM101JDHG38 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
400 cd/m² (Typ.) SFT, Normally Black, Transmissive 800:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 85/85/85/85 (Typ.)(CR≥10) 25 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
7236K 262K/16.7M (6-bit / 8-bit) X:0.303; Y:0.315
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
55% 77% 58%
DCI-P3 Coverage Rec.2020 Coverage Remarks
57% 41% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.33 (Typ./Max.)(9 points)





TIANMA TM101JDHG38 Electronics Features

Refresh Rate : 60Hz
Reverse Scan : No
Driver IC List: COG Built-in ST5821CA*3 + ST5084CA*1



TIANMA TM101JDHG38 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type 30K(Typ.) 6S5P Array -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Included in signal interface -
WLED Driver Electrical : Input Voltage Input Current Power Consumption
5.5/12.0/21.0V (Min./Typ./Max.) 322mA (Typ.) 3.86W (Typ.)



TIANMA TM101JDHG38 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 280mA (Typ.) 924mW (Typ.)
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 6/8-bit) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JAE HD1S040HA1 1 pcs 40 pins 0.5 mm







FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM101JDHG38 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY




































Product Tags:

XGA TIANMA LCD Screen



WQVGA TIANMA TFT LCD


Buy cheap TM101JDHG38 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY product

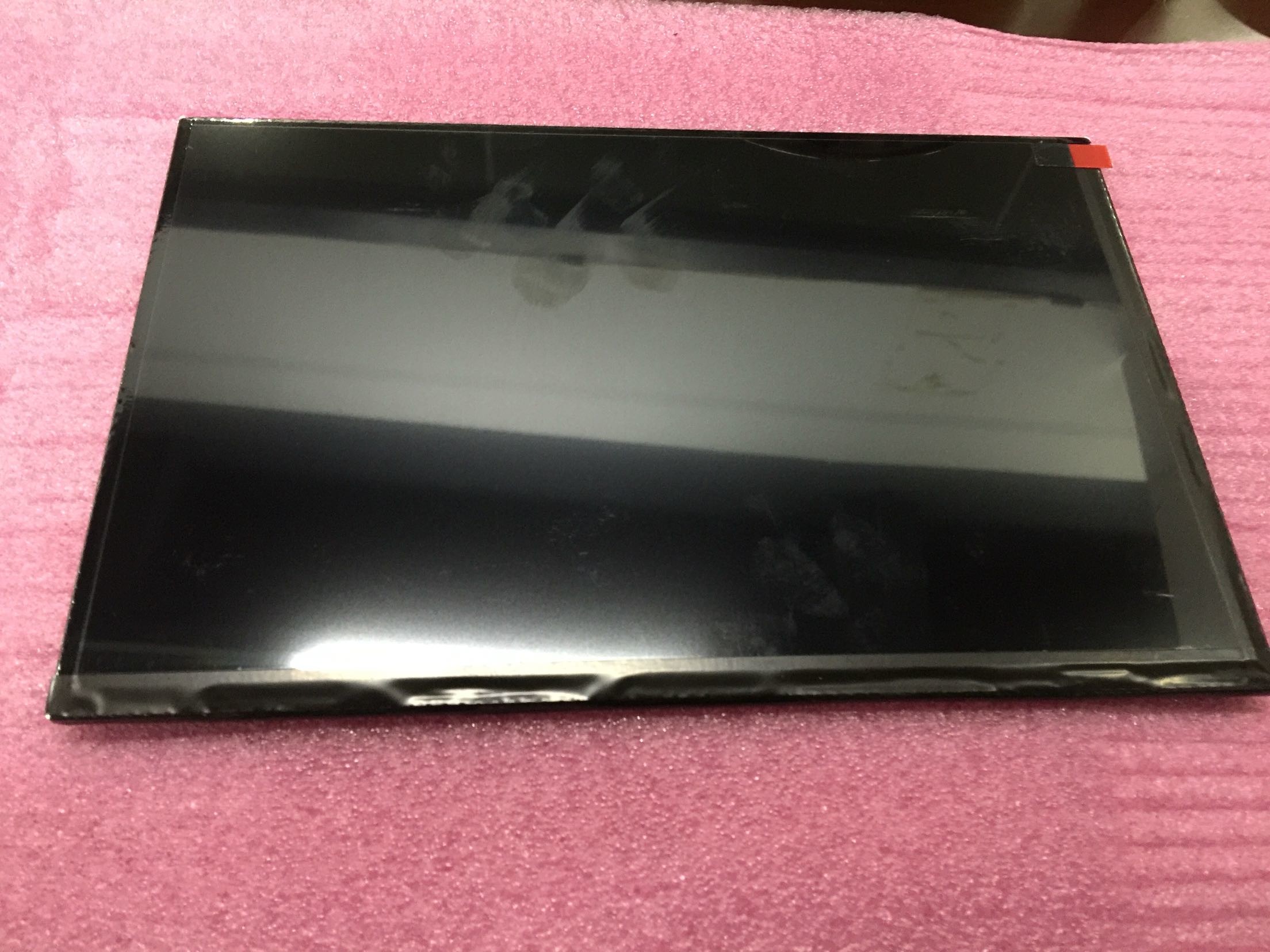

TM101JDHG38 TIANMA 10.1" 1280(RGB)×800 400 cd/m² INDUSTRIAL LCD DISPLAY Images
