TM040YDZ01 TIANMA 4.0" 480(RGB)×800 350 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

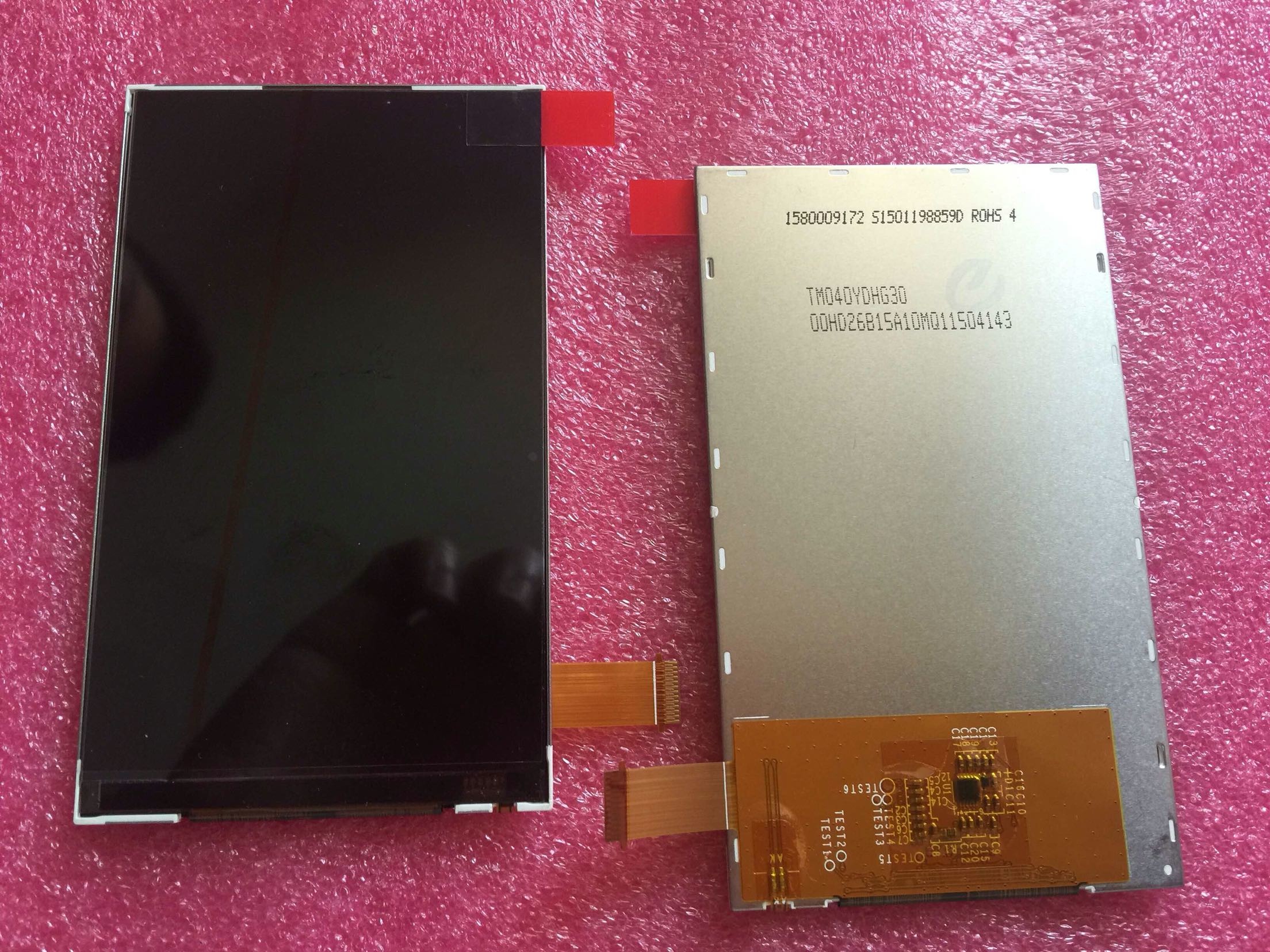

TM040YDZ01 TIANMA 4.0" 480(RGB)×800 350 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2

Brand Name : TIANMA

Model Number : TM040YDZ01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM040YDZ01

BRAND : TIANMA

SIZE : 4.0"inch

RESOLUTION : 480(RGB)×800, WVGA, 235PPI

BRIGHTNESS : 350 cd/m² (Typ.)

Viewing Angle : 50/70/70/70 (Typ.)(CR≥10)

TEMPERATURE RANGE : Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 m/s²)

Contact Now

TIANMA TM040YDZ01 Application Details

Basic Detail :
Manufacturer

Model Name
TM040YDZ01
Panel Type
a-Si TFT-LCD , LCM
Another Name
-
Panel Size
Designed For
Maximum Ratings :
OP Temperature
-20 ~ 70 °C
ST Temperature
-30 ~ 80 °C
RoHS

Vibration Level
-
Features :






TIANMA TM040YDZ01 Optical Details

Basic Detail :
Luminance
350 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Good View at
9 o'clock
Response Speed
20 (Typ.)(Tr+Td) ms
Viewing Angle
50/70/70/70 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
-
Support Color
16.7M (8-bit)



TIANMA TM040YDZ01 Mechanical Details

Pixel Features :
Number of Pixel
480(RGB)×800, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.036×0.108 mm
Pixel Pitch(W×H)
0.108×0.108 mm [235PPI]
Physical Size :
Active Viewing
51.84(W)×86.4(H) mm
Overall Dim.
57.34(W)×97.8(H) mm
Bezel Opening
52.84(W)×87.4(H) mm
Overall Depth
2.0/3.0 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Portrait type
Aspect Ratio(W:H)
3:5
Shape Style

Other Detail :
Mass
TBD
Surface



TIANMA TM040YDZ01 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
No



TIANMA TM040YDZ01 Interface Detail

Signal Electrical :
Input Current
-
Input Voltage

Consumption
-
Signal Interface
MIPI (1 data lane)
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.3 mm
25 pins
1 pcs



TIANMA TM040YDZ01 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
8S1P
Position
Edge light type
Exchange
-
Lamp Shape
1 string
Lamp Life
-
Lamp Electrical :
Input Voltage
25.6±1.6V
Input Current
20mA (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No
