TM024HDH46 TIANMA 2.4" 240(RGB)×320 310 cd/m² INDUSTRIAL LCD DISPLAY

Name: TM024HDH46 TIANMA 24quot 240RGB320 310 cdm INDUSTRIAL LCD DISPLAY
Brand: TIANMA
Price: 1 USD

Buy cheap TM024HDH46 TIANMA 2.4" 240(RGB)×320 310 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : TIANMA

Model Number : TM024HDH46

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM024HDH46

BRAND : TIANMA

SIZE : 2.4 inch

RESOLUTION : 240(RGB)×320, QVGA, 166PPI

BRIGHTNESS : 310 cd/m² (Typ.)

Viewing Angle : 70/70/60/70 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C

Contact Now

TIANMA TM024HDH46 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		TM024HDH46	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		-20 ~ 60 °C	-30 ~ 70 °C	-
Used For :
Specific Features :
Remarks :	CPU 8/16 bits; 2 in 1 FPC; Down side FPC (30.00mm length)

TIANMA TM024HDH46 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	310 (Typ.)	70/70/60/70 (Typ.)(CR≥10)	20 (Typ.)(Tr+Td)
	Best View on	Display Mode	Contrast Ratio
	12 o'clock	TN, Normally White, Transmissive	500 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	8022K	65K/262K	X:0.290; Y:0.320
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	53%	74%	55%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	55%	40%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.25 (Typ.)(9 points)

TIANMA TM024HDH46 Mechanical Features

Panel Size :	2.4"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	240(RGB)×320 [QVGA]	RGB Vertical Stripe	0.153×0.153 [166PPI]	0.051×0.153
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	36.72(H) × 48.96(V)	-	42.72(H) × 60.26(V)	2.35±0.1 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Portrait type	3:4 (H:V)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	TBD	-	Clear, Hard coating (3H)

TIANMA TM024HDH46 Electronics Features

Reverse Scan :	No
Vertical Frequency :	60Hz
Driver IC :	Built-in ILI9340

TIANMA TM024HDH46 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	1S4P	Parallel	-	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	3.2V (Typ.)		15mA (Typ.)			192mW (Typ.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Included in panel signal interface

TIANMA TM024HDH46 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	(1.8/2.8)/2.8V (Typ.)(IOVCC/VCC)		-			-
Interface Features :	Position	Signal				Type
Interface Features :	-	CPU				FPC
FPC Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
FPC Detail :			0.5 mm	40 pins	1 pcs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM024HDH46 TIANMA 2.4" 240(RGB)×320 310 cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

XGA TIANMA LCD Screen

WQVGA TIANMA TFT LCD

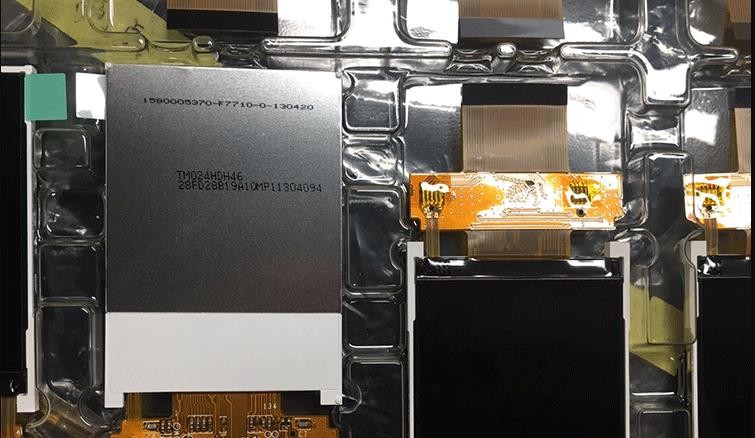

TM024HDH46 TIANMA 2.4" 240(RGB)×320 310 cd/m² INDUSTRIAL LCD DISPLAY Images
