TM035KVHG01 TIANMA 3.5" 320(RGB)×240 400 cd/m² INDUSTRIAL LCD DISPLAY

Name: TM035KVHG01 TIANMA 35quot 320RGB240 400 cdm INDUSTRIAL LCD DISPLAY
Brand: TIANMA
Price: 1 USD

Buy cheap TM035KVHG01 TIANMA 3.5" 320(RGB)×240 400 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : TIANMA

Model Number : TM035KVHG01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM035KVHG01

BRAND : TIANMA

SIZE : 3.5"inch

RESOLUTION : 320(RGB)×240, QVGA, 115PPI

BRIGHTNESS : 400 cd/m² (Typ.)

Viewing Angle : 70/70/60/70 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM035KVHG01 Application Details

Basic Info :	Panel Brand		Panel Model	TM035KVHG01
	Diagonal Size	3.5"	Application
	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
Reliability :	Operating Temp.	-20 ~ 70 °C	Storage Temp.	-30 ~ 80 °C
Reliability :	RoHS State		Vibration Rating	-
Specific Features :
Remarks :	CTP: HX8526

TIANMA TM035KVHG01 Mechanical Details

Pixel Features :	Pixel Format	320(RGB)×240 [QVGA]	Dot Pitch	0.073×0.219 mm (H×V)
Pixel Features :	Configuration	RGB Vertical Stripe	Pixel Pitch	0.219×0.219 mm (H×V) [115PPI]
Mechanical Size :	Display Area	70.08×52.56 mm (H×V)	Bezel Area	-
Mechanical Size :	Outline Dim.	79.9×68.9 mm (H×V)	Outline Depth	4.38±0.35 mm
Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio	4:3 (H:V)	Shape Style
Touch Screen :	Touch Points	5 points	TP Signal	I²C
Touch Screen :	TP Controller	With touch controller	Touchscreen	PCAP
Other Features :	Weight	-	Surface	Anti Fingerprint, Hard coating (4H)
Other Features :	Panel Cover	With Cover Lens

TIANMA TM035KVHG01 Optical Details

Basic Information :	Brightness	400 cd/m² (Typ.)	Contrast Ratio	500:1 (Typ.) (Transmissive)
	Viewing Angle	70/70/60/70 (Typ.)(CR≥10)	Optical Mode	TN, Normally White, Transmissive
	Viewing Direction	12 o'clock	Response Time	20 (Typ.)(Tr+Td) (ms)
Color Performance :	Chromaticity	Wx:0.280; Wy:0.310	Color Numbers	16.7M (8-bit)
Color Performance :	Color Temperature	9085K	White Uniformity	1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	53%	sRGB	75% coverage
	Adobe RGB	56% coverage	DCI-P3	56% coverage
	Rec.2020	40% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM035KVHG01 Electronics Details

Frame Frequency :	60Hz
D-IC Detail :	Built-in NV3035C

TIANMA TM035KVHG01 Backlight Details

Back-light Features:	Lamp Shape	1 string	Lamp Type	WLED	Life Time	-
Back-light Features:	Replacement	-	Amount	6S1P	Position	Edge light type
Lamp Electrical :	Voltage Input	19.2±2.4V		Current Input	20/25mA (Typ./Max.)
Lamp Electrical :	Consumption	384mW (Typ.)
Interface Features :	Type	Included in panel signal interface	Position	-	Lamp Driver	No

TIANMA TM035KVHG01 Interface Details

Signal Systerm :	Digital RGB (8/24-bit) + SPI, CCIR601/656			Logic Voltage	-
Signal Electrical :	Voltage Input	3.3V (Typ.)		Current Input	-
Signal Electrical :	Consumption	45/65mW (Typ./Max.)
Interface Features :	Type	FPC	Position	-
FPC Detail :	Brand	Model	Pin Pitch	Pins	Amount	Configuration
FPC Detail :			0.5 mm	54 pins	1 pcs

TIANMA TM035KVHG01 Carton Details

Package Carton :	Amount	Net Weight	Carton Size (L×W×H)
Package Carton :	216 pcs / box	-	544×365×250 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM035KVHG01 TIANMA 3.5" 320(RGB)×240 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

QVGA TIANMA LCD Panel

SVGA TIANMA LCD Panel

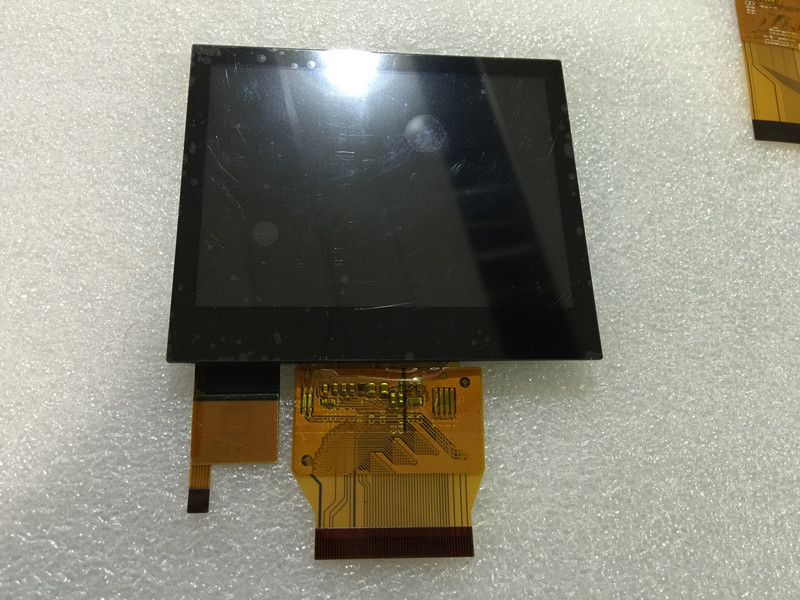

TM035KVHG01 TIANMA 3.5" 320(RGB)×240 400 cd/m² INDUSTRIAL LCD DISPLAY Images
