TM035HBHT4 TIANMA 3.5" 240(RGB)×320 115 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : TIANMA

Model Number : TM035HBHT4

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM035HBHT4

BRAND : TIANMA

SIZE : 3.5 inch

RESOLUTION : 320(RGB)×240 [QVGA] 70PPI

BRIGHTNESS : 115 cd/m² (Typ.)

Viewing Angle : 40/45/55/40 (Typ.)(CR≥10)

TEMPERATURE RANGE : Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C

SIGNAL LNTERFACE : LVDS

Contact Now

TIANMA TM035HBHT4 Application Features

Basic Information : Brand Model Type Model Alias
  TM035HBHT4 a-Si TFT-LCD , LCM -
Reliability : RoHS Operating Temperature Storage Temperature Vibration Resistance
  -20 ~ 60 °C -30 ~ 70 °C -
Designed For :
Specific Features :





Remarks : Left side FPC (17.00mm length)



TIANMA TM035HBHT4 Mechanical Features

Panel Size : 3.5 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
240(RGB)×320, QVGA RGB Vertical Stripe 0.0745×0.2235 mm 0.2235×0.2235 mm [113PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
53.64×71.52 mm - 64×85 mm 4.10±0.3 mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 3:4 (W : H) Portrait type
Touchscreen : Touch Points TP Controller Signal Type Touch Tech
1 point Without touch controller - 4-wire Resistive Touch
Other Features : Panel Cover Weight Surface
- TBD Hard coating



TIANMA TM035HBHT4 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
115 cd/m² (Typ.) ECB, Normally White, Transflective 150:1 (Typ.) (Transmissive) 6.5:1 (Typ.) (Reflective)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
40/45/55/40 (Typ.)(CR≥10) 6 o'clock 35 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
7272K 262K (6-bit) X:0.301; Y:0.321
Performance : 3D Type Outdoor Visibility Reflectance
- Sunlight Readable 7% (Typ.)



TIANMA TM035HBHT4 Electronics Features

Reverse Scan : No
Time Controller (T-CON) : Embedded T-CON



TIANMA TM035HBHT4 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
- 2.8/2.8V (Typ.)(IOVCC/VCC) -
Voltage for Display Signals : 0≤VIL≤0.3IOVCC; 0.7IOVCC≤VIH≤IOVCC
Interface Features : Position Type Interface
- Connector Parallel RGB (1 ch, 6-bit) + SPI
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
Panasonic AXK6F60345YJ 1 pcs 0.5 mm 60 pins



TIANMA TM035HBHT4 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type 1 string 6S1P 10K(Min.) -
WLED Electrical : Current Input Voltage Input Consumption
20mA (Typ.) 19.2V (Typ.) 384mW (Typ.)
Interface Features : Position Type WLED Driver
- Included in panel signal interface No



TIANMA TM035HBHT4 Packing Features

Package Carton : Amount Weight Carton Size
112 pcs / box - 516×336×226 mm (L×W×H)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM035HBHT4 TIANMA 3.5" 240(RGB)×320 115 cd/m² INDUSTRIAL LCD DISPLAYTM035HBHT4 TIANMA 3.5" 240(RGB)×320 115 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

QVGA TIANMA LCD Panel



SVGA TIANMA LCD Panel


Buy cheap TM035HBHT4 TIANMA 3.5" 240(RGB)×320 115 cd/m² INDUSTRIAL LCD DISPLAY product

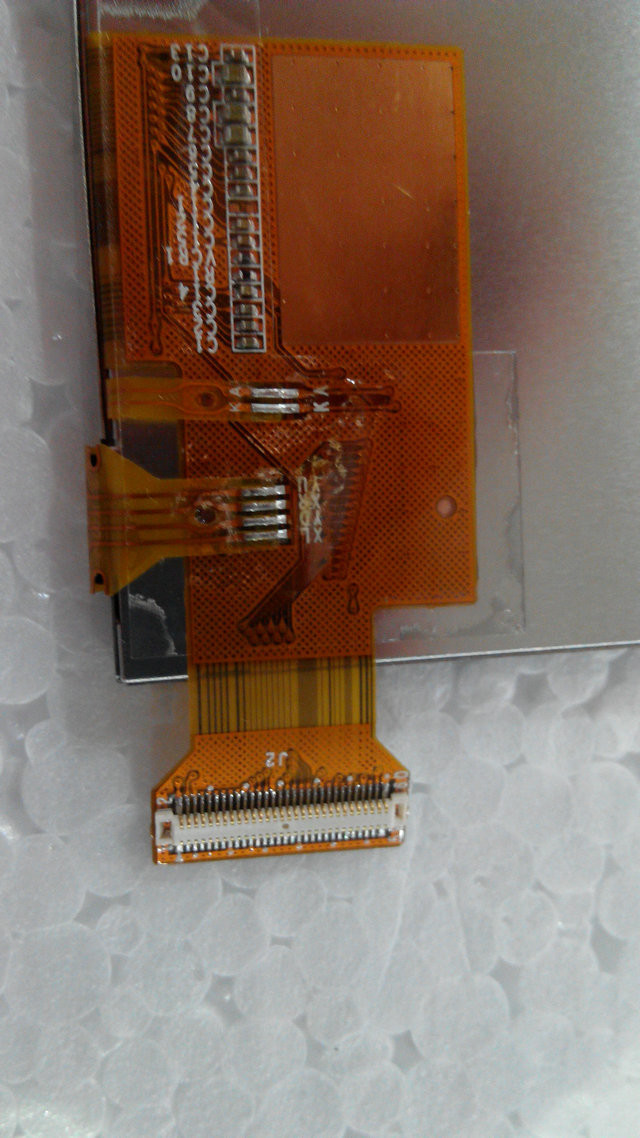

TM035HBHT4 TIANMA 3.5" 240(RGB)×320 115 cd/m² INDUSTRIAL LCD DISPLAY Images
