TM070RDHG70 TIANMA 7.0" 800(RGB)×480 555 cd/m² INDUSTRIAL LCD DISPLAY

Name: TM070RDHG70 TIANMA 70quot 800RGB480 555 cdm INDUSTRIAL LCD DISPLAY
Brand: TIANMA
Price: 1 USD

Buy cheap TM070RDHG70 TIANMA 7.0" 800(RGB)×480 555 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : TIANMA

Model Number : TM070RDHG70

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM070RDHG70

BRAND : TIANMA

SIZE : 7.0"inch

RESOLUTION : 800(RGB)×480 [WVGA] 134PPI

BRIGHTNESS : 555 cd/m² (Typ.)

Viewing Angle : 88/88/88/88 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM070RDHG70 Application Details

Basic Information :	Brand Model TM070RDHG70 Type a-Si TFT-LCD , LCM Used For Screen Size 7.0 inch Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS Vibration -
Typical Features :

TIANMA TM070RDHG70 Mechanical Details

Pixel Features :	Resolution 800(RGB)×480, WVGA Dot Pitch(mm) 0.0642×0.1790 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.1926×0.1790 (H×V) [134PPI]
Mechanical Size :	Active Area(mm) 154.08(H) × 85.92(V) Bezel Area(mm) 157.08(H) × 89.39(V) Outline Dim.(mm) 164.9(H) × 100(V) Depth(mm) 5.7±0.3
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting :	Without
Other Spec :	Weight TBD Treatment Antiglare

TIANMA TM070RDHG70 Optical Details

Basic Information :	Luminance(cd/m²) 555 (Typ.) Contrast Ratio 900:1 (Typ.) (Transmissive) Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Display Mode SFT, Normally Black, Transmissive Best View on Symmetry Response(ms) 30 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.308; Wy:0.332 Display Colors 16.7M (8-bit) Color Temperature 6727K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 71% sRGB 95% coverage Adobe RGB 73% coverage DCI-P3 73% coverage Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM070RDHG70 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Driver IC :	COG Built-in HX8282-A02 + HX8664-B
Time Controller (T-CON) :	Embedded T-CON

TIANMA TM070RDHG70 Interface Detail

Signal Electrical :	Voltage Supply 3.3/11.9/20/-7V (Typ.)(VDD/AVDD/VGH/VGL) Current Supply -
Signal Type :	Parallel RGB (1 ch, 8-bit) Logic Voltage -
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration 0.5 mm 50 pins 1 pcs

TIANMA TM070RDHG70 Backlight Details

Backlight Features :	Type WLED Quantity 3S9P Position Edge light type Replacement - Shape Array Life Time 30K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply 9.3±0.3V Current Supply 180mA (Typ.) Consumption 1.67±0.06W
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	No

TIANMA TM070RDHG70 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	40 pcs / box	-	562×362×225 mm (L×W×H

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM070RDHG70 TIANMA 7.0" 800(RGB)×480 555 cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

QVGA TIANMA LCD Panel

SVGA TIANMA LCD Panel

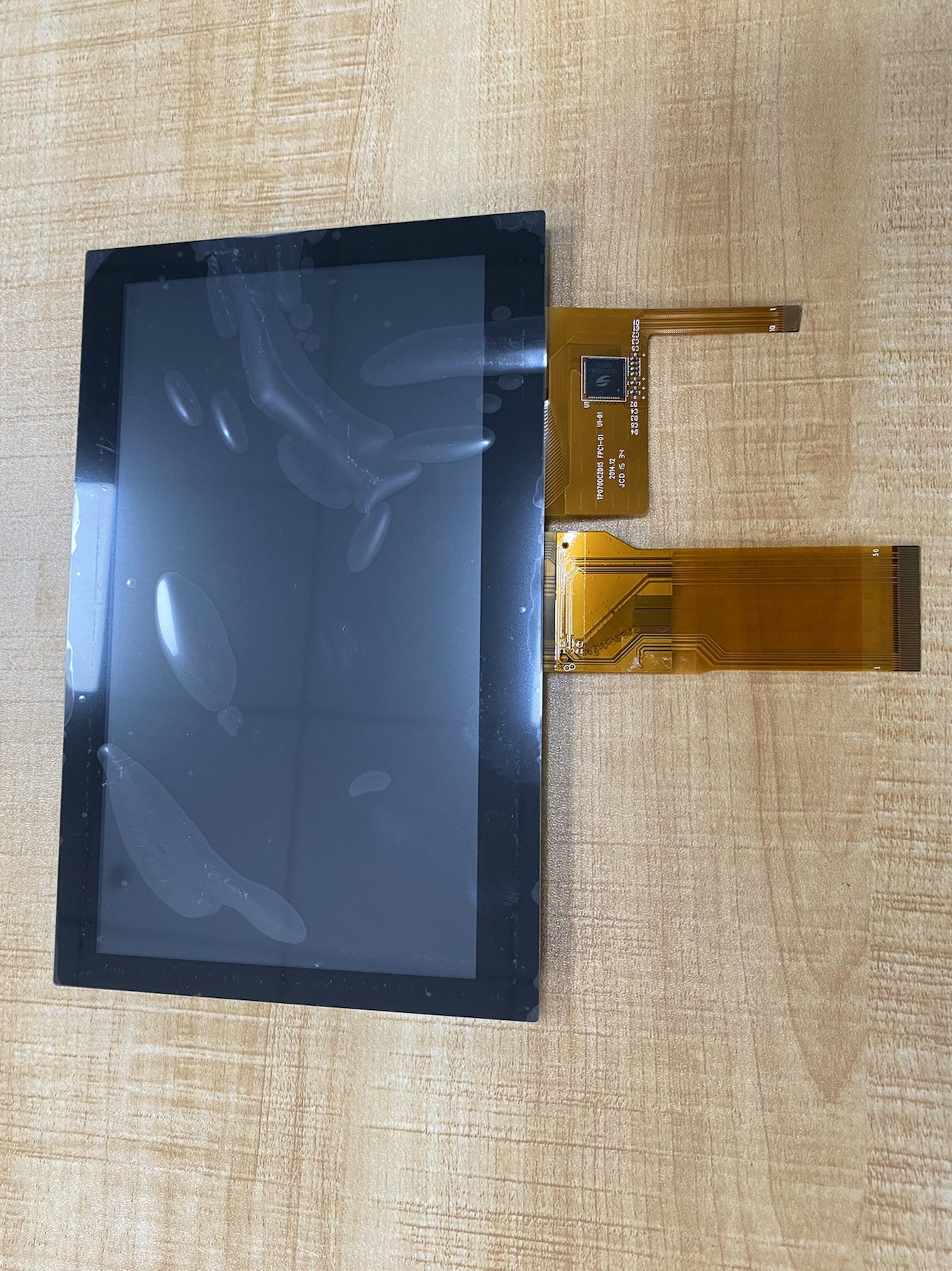

TM070RDHG70 TIANMA 7.0" 800(RGB)×480 555 cd/m² INDUSTRIAL LCD DISPLAY Images
