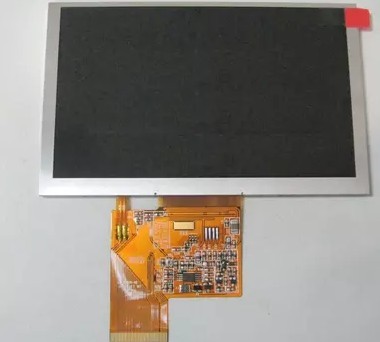

AT050TN43 V.1 Chimei Innolux 5.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

AT050TN43 V.1 Chimei Innolux 5.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : INNOLUX

Model Number : AT050TN43 V.1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : AT050TN43 V.1

BRAND : INNOLUX

SIZE : 5.0 inch

RESOLUTION : 800(RGB)×480, WVGA, 188PPI

BRIGHTNESS : 350CD/M2

Lamp Type : WLED

VIEWING ANGLEG : 70/70/50/70 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

Chimei Innolux AT050TN43 V.1 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×480, WVGA
Dot Pitch
0.045×0.135 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.135×0.135 mm (H×V) [188PPI]
Mechanical Size :
Display Area
108×64.8 mm (H×V)
Bezel Area
110.6×67.8 mm (H×V)
Outline Dim.
120.7×76.3 mm (H×V)
Outline Depth
3.10±0.2 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:9 (H:V)
Shape Style

Other Features :
Weight
60.0g (Typ.)
Surface
Antiglare



Chimei Innolux AT050TN43 V.1 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
10/15 (Typ.)(Tr/Td) ms
Color Performance :
Chromaticity
Wx:0.310; Wy:0.330
Color Numbers
16.7M (8-bit)
Color Temperature
6638K
Uniformity
1.33/1.43 (Typ./Max.)(9 points)



Chimei Innolux AT050TN43 V.1 Electronics Details

Frame Frequency :
60Hz
Time Controller (T-CON) :
Embedded T-CON



Chimei Innolux AT050TN43 V.1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
7S2P
Life Time
20K(Min.) (Hours)
Replacement
-
Lamp Shape
Array
Position
Edge light type
Lamp Electrical :
Voltage Input
21.7±2.1V
Current Input
40±4mA
Consumption
0.87W (Typ.)
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No



Chimei Innolux AT050TN43 V.1 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 8-bit)
Logic Voltage
GND≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
110/150mA (Typ./Max.)
Consumption
363mW (Typ.)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
40 pins
1 pcs
DRGB-40P1C8B-085A



Chimei Innolux AT050TN43 V.1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
100 pcs / box TBD 530×355×255 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

AT050TN43 V.1 Chimei Innolux 5.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY
