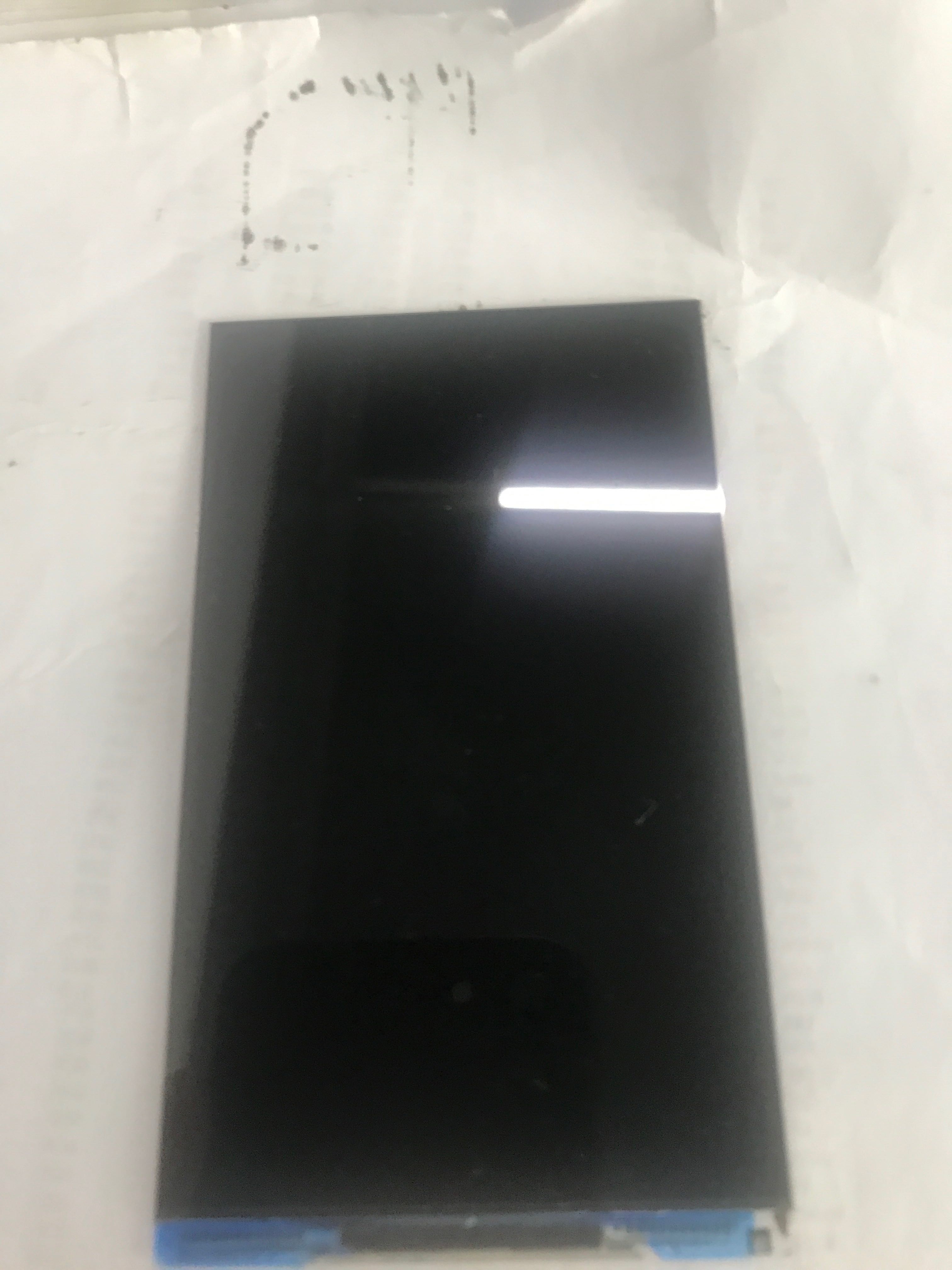

TM023KDZ32 TIANMA 2.3" 320(RGB)×240 320 cd/m² INDUSTRIAL LCD DISPLAY

Name: TM023KDZ32 TIANMA 23quot 320RGB240 320 cdm INDUSTRIAL LCD DISPLAY
Brand: TIANMA
Price: 1 USD

Buy cheap TM023KDZ32 TIANMA 2.3" 320(RGB)×240 320 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : TIANMA

Model Number : TM023KDZ32

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : TM023KDZ32

BRAND : TIANMA

SIZE : 2.3 inch

RESOLUTION : 320(RGB)×240, QVGA, 173PPI

BRIGHTNESS : 320CD/M2

Viewing Angle : 55/55/60/45 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

TIANMA TM023KDZ32 Application Features

Basic Information :	Manufacturer	Panel Model	Panel Type	Alias
Basic Information :		TM023KDZ32	a-Si TFT-LCD , LCM	-
Environment :	RoHS State	Operating Temp.	Storage Temp.	Vibration Level
Environment :		-20 ~ 70 °C	-30 ~ 80 °C	-
Used For :
Specific Features :

TIANMA TM023KDZ32 Optical Features

Basic Information :	Luminance (cd/m²)	Viewing Angle (L/R/U/D)	Response Time (ms)
	320 (Typ.)	55/55/60/45 (Typ.)(CR≥10)	20/20 (Typ.)(Tr/Td)
	Best View on	Display Mode	Contrast Ratio
	6 o'clock	TN, Normally White, Transmissive	350 : 1 (Typ.) (Transmissive)
Dispaly Color :	Color Temperature	Display Colors	White Coordinate
Dispaly Color :	9417K	65K	X:0.278; Y:0.306
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	54%	75%	57%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	56%	40%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :	1.25 (Max.)(9 points)

TIANMA TM023KDZ32 Mechanical Features

Panel Size :	2.3"
Pixel Features :	Pixel Format	Pixel Configuration	Pixel Pitch (mm)	Dot Pitch (mm)
Pixel Features :	320(RGB)×240 [QVGA]	RGB Vertical Stripe	0.1461×0.1461 [173PPI]	0.0487×0.1461
Mechanical Size :	Active Area (mm)	Bezel Area (mm)	Outline Dimension (mm)	Outline Depth (mm)
Mechanical Size :	46.752(H) × 35.064(V)	-	53.3(H) × 46.9(V)	2.25±0.15 mm
Outline Features :	Form Factor	Orientation	Aspect Ratio	Shape Style
Outline Features :	Flat Rectangle	Landscape type	4:3 (H:V)
Other Detail :	Weight	Panel Cover	Treatment
Other Detail :	TBD

TIANMA TM023KDZ32 Electronics Features

Vertical Frequency :	60Hz
Driver IC :	COG Built-in ILI9342C

TIANMA TM023KDZ32 Backlight Features

Lamp Features:	Type	Position	Quantity	Shape	Life(Hours)	Lamp Exchange
Lamp Features:	WLED	Edge light type	1S4P	Parallel	-	-
WLED Electrical :	Voltage Supply		Current Supply			Power
WLED Electrical :	3.2V (Typ.)		15mA (Typ.)
Interface Features :	Position	Backlight Driver				Type
Interface Features :	-	No				Included in panel signal interface

TIANMA TM023KDZ32 Interface Features

Panel Driving Electrical :	Voltage Supply		Current Supply			Power
Panel Driving Electrical :	(1.8/2.8)/3.0V (Typ.)(IOVCC/VCC)		TBD			-
Interface Features :	Position	Signal				Type
Interface Features :	-	CPU				FPC
FPC Detail :	Brand	Model	Pin Pitch	Pin Amount	Quantity	Configuration
FPC Detail :			0.3 mm	45 pins	1 pcs
