EJ080NA-05A CHIMEI Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

EJ080NA-05A CHIMEI Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : INNOLUX

Model Number : EJ080NA-05A

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : EJ080NA-05A

BRAND : INNOLUX

SIZE : 8.0INCH

RESOLUTION : 800(RGB)×600 [SVGA] 125PPI

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

VIEWING ANGLEG : 70/70/50/70 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

Chimei Innolux EJ080NA-05A Application Details

Basic Information : Brand   Model EJ080NA-05A 2 Compatible
Type LCM a-Si TFT-LCD Used For
Screen Size 8.0" Alias -
Environment : Storage Temp. -30 ~~ 80 °C Operating Temp. -20 ~~ 70 °C
RoHS   Vibration



Chimei Innolux EJ080NA-05A Mechanical Details

Pixel Features : Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.0675×0.2025 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.2025×0.2025 (H×V) [125PPI]
Mechanical Size : Active Area(mm) 162(H) × 121.5(V) Bezel Area(mm) 164.8(H) × 124.3(V)
Outline Dim.(mm) 183(H) × 141(V) Depth(mm) 5.6±0.3
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Other Spec : Weight 243g (Typ.) Treatment Antiglare



Chimei Innolux EJ080NA-05A Optical Details

Basic Information : Luminance(cd/m²) 250 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10)  Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock Response(ms) 10/15 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.310; Y:0.330 Display Colors 262K/16.7M (6-bit / 6-bit + Dithering)
Color Temperature 6638K White Uniformity 1.33/1.43 (Typ./Max.)(9 points)



Chimei Innolux EJ080NA-05A Electronics Details

Frame Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)
Power Consumption : 2.14W
Time Controller (T-CON) : Embedded T-CON



Chimei Innolux EJ080NA-05A Interface Details

Signal Electrical : Voltage Supply 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) Current Supply 5.5/32/0.2/0.2mA (Typ.)(ICC/IVDD/IGH/IGL)
Consumption 356mW (Typ.)
Signal Type : Parallel RGB (1 ch, 6/8-bit) Signal Voltage -
Interface Features : Position - Type FPC
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
    1 pcs 50 pins 0.5 mm DRGB-50P1C8B-105A



Chimei Innolux EJ080NA-05A Backlight Details

Backlight Features: Shape Array Type WLED Position Edge light type
Replacement - Quantity 3S9P Life Time 20K(Min.) (Hours)
Lamp Electrical : Voltage Supply 9.9±0.6V Current Supply 180±18mA
Consumption 1.782W (Typ.)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JST BHSR-02VS-1 1 pcs 2 pins 3.5 mm BLE-2PINS-AC
Backlight Driver : No



Chimei Innolux EJ080NA-05A Packing Details

Package Box : Quantity Weight Box Size
30 pcs / box TBD 530×355×255 mm (L×W×H)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



EJ080NA-05A CHIMEI Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

IPS Lcd Display Panels



RGB Vertical LCD Display



LVDS TFT LCD Module


Buy cheap EJ080NA-05A CHIMEI Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY product

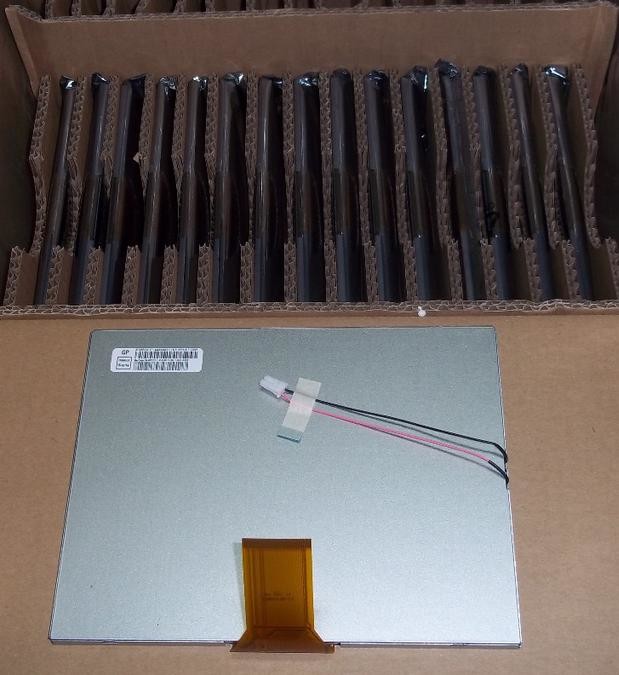

EJ080NA-05A CHIMEI Innolux 8.0" 800(RGB)×600 250 cd/m² INDUSTRIAL LCD DISPLAY Images
