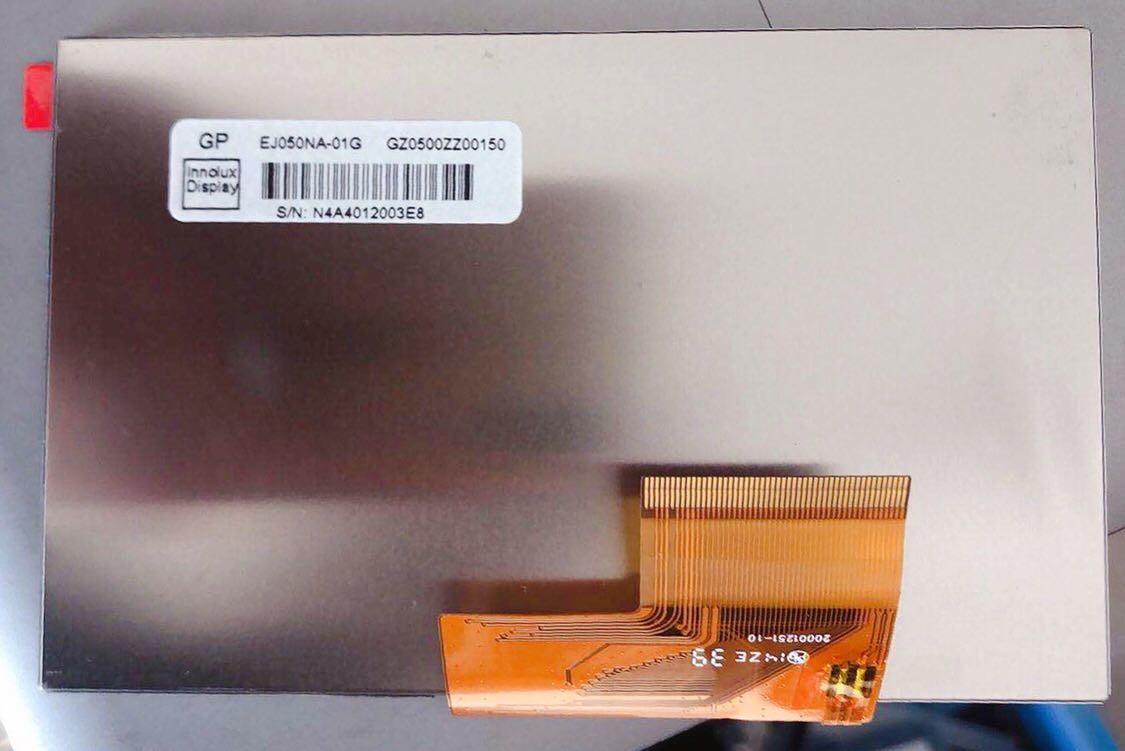

EJ050NA-01G CHIMEI Innolux 5.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

EJ050NA-01G CHIMEI Innolux 5.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : INNOLUX

Model Number : EJ050NA-01G

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : EJ050NA-01G

BRAND : INNOLUX

SIZE : 5.0 inch

RESOLUTION : 800(RGB)×480, WVGA, 188PPI

BRIGHTNESS : 350CD/M2

Lamp Type : WLED

VIEWING ANGLEG : 70/70/50/70 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

Chimei Innolux EJ050NA-01G Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
  EJ050NA-01G a-Si TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
  -20 ~ 70 °C -30 ~ 80 °C



Chimei Innolux EJ050NA-01G Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
350 (Typ.) 70/70/50/70 (Typ.)(CR≥10) 10/15 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
6 o'clock TN, Normally White, Transmissive 500 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6638K 16.7M (8-bit) X:0.310; Y:0.330
White Variation : 1.33/1.43 (Typ./Max.)(9 points)



Chimei Innolux EJ050NA-01G Mechanical Features

Panel Size : 5.0"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
800(RGB)×480 [WVGA] RGB Vertical Stripe 0.135×0.135 [188PPI] 0.045×0.135
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
108(H) × 64.8(V) 110.6(H) × 67.6(V) 120.7(H) × 76.3(V) 3.10±0.2 mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 15:9 (H:V)
Other Detail : Weight Panel Cover Treatment
58.5g (Typ.) - Clear



Chimei Innolux EJ050NA-01G Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type 7S2P Array 15K(Min.) -
WLED Electrical : Voltage Supply Current Supply Power
21.7±2.1V 40±4mA 868mW (Typ.)
Interface Features : Position Backlight Driver Type
- No Included in panel signal interface



Chimei Innolux EJ050NA-01G Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) 10.0/50.0/1.0/1.0mA (Typ.)(DIDD/AIDD/IGH/IGL) 0.223W
Voltage for Display Signals : 0≤VIL≤0.3DVDD; 0.7VDD≤VIH≤DVDD
Interface Features : Position Signal Type
- Parallel RGB (1 ch, 8-bit) FPC
FPC Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
    0.5 mm 50 pins 1 pcs DRGB-50P1C8B-115A



Chimei Innolux EJ050NA-01G Packing Features

Package Box : Quantity Weight Box Size
72 pcs / box 7.67±0.38 Kgs 375×280×210 mm (L×W×H)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
