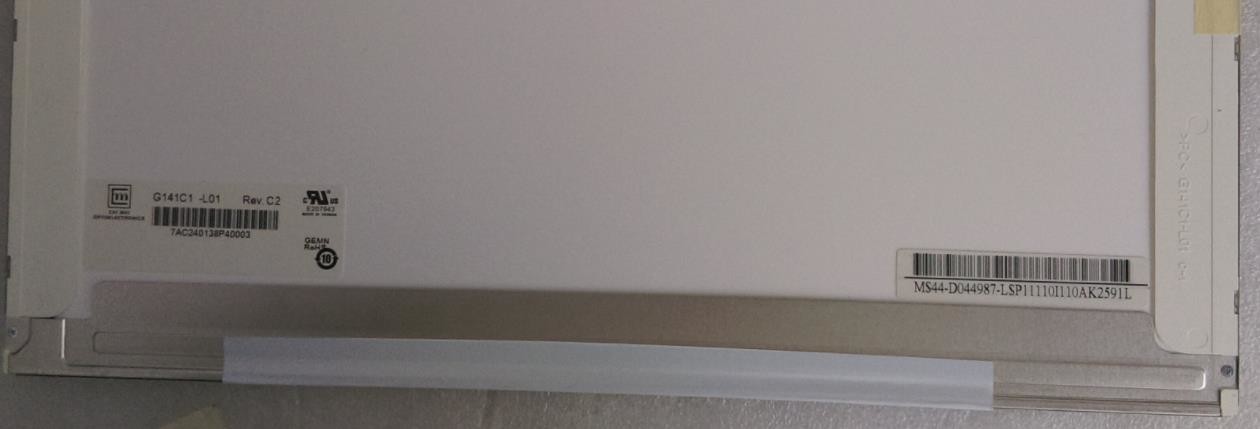

G141C1-L01 CMO 14.1" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

G141C1-L01 CMO 14.1" 1440(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : CMO

Model Number : G141C1-L01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : G141C1-L01

BRAND : CMO

SIZE : 14.1 inch

BRIGHTNESS : 900 cd/m² (Typ.)

Lamp Type : WLED

RESOLUTION : 1440(RGB)×900 [WXGA+] 120PPI

VIEWING ANGLEG : 88/88/88/88 (Typ.)(CR≥20)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

CMO G141C1-L01 Application Details

Basic Info : Panel Brand   Panel Model G141C1-L01
Diagonal Size 14.1" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C
RoHS State   Vibration Rating 1.5G (14.7 m/s²)



CMO G141C1-L01 Mechanical Details

Pixel Features : Pixel Format 1440(RGB)×900 [WXGA+] Dot Pitch 0.07025×0.21075 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.21075×0.21075 mm (H×V) [120PPI]
Mechanical Size : Display Area 303.48×189.675 mm (H×V) Bezel Area 306.76×193.0 mm (H×V)
Outline Dim. 319.5×205.5 mm (H×V) Outline Depth 5.2/5.5 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:10 (H:V) Shape Style
Holes & Brackets : Side mounting holes (8-M2) on left, right bezel
Other Features : Weight 406/420g (Typ./Max.) Surface Glare (Haze 0%)



CMO G141C1-L01 Optical Details

Basic Information : Brightness 250 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 88/88/88/88 (Typ.)(CR≥20) Optical Mode MVA, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 14/11 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 262K (6-bit)
Color Temperature 6485K White Uniformity 1.40 (Max.)(5 points)
1931 Color Gamlt : NTSC Ratio 42% sRGB 59% coverage
Adobe RGB 44% coverage DCI-P3 44% coverage
Rec.2020 31% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



CMO G141C1-L01 Backlight Details

Back-light Features: Lamp Shape - Lamp Type WLED Life Time 30K(Min.) (Hours)
Replacement - Amount - Position Edge light type
Interface Features : Type Included in panel signal interface Position - Lamp Driver With LED Driver
Driver Electrical : Voltage Input 7.0/12.0/21.0V (Min./Typ./Max.) Current Input 0.4/0.44/0.49A (Min./Typ./Max.)
Consumption 4.48W (Typ.)



CMO G141C1-L01 Interface Details

Signal Systerm : LVDS (2 ch, 6-bit) Logic Voltage -
Signal Electrical : Voltage Input 3.3V (Typ.) Current Input 550mA (Typ.)
Consumption 1.82W (Typ.)
Interface Features : Type Connector Position -
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
I-PEX 20455-040E-12 0.5 mm 40 pins 1 pcs LVDS-40P2C6B-035A



CMO G141C1-L01 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
20 pcs / box - 500×400×330 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
