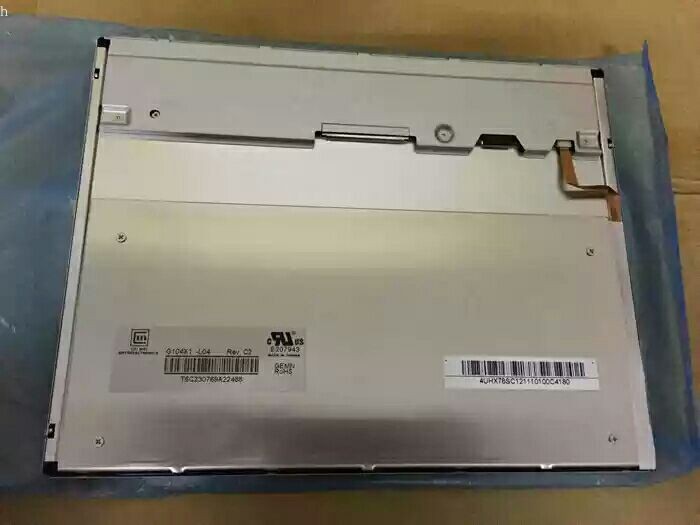

G104X1-L02 CHIMEI INNOLUX 10.4" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY

Name: G104X1L02 CHIMEI INNOLUX 104quot 1024RGB768 400 cdm INDUSTRIAL LCD DISPLAY
Brand: INNOLUX
Price: 1 USD

Buy cheap G104X1-L02 CHIMEI INNOLUX 10.4" 1024(RGB)×768 400 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : INNOLUX

Model Number : G104X1-L02

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : G104X1-L02

BRAND : INNOLUX

SIZE : 10.4 inch

Lamp Type : WLED

RESOLUTION : 1024(RGB)×768 [XGA] 123PPI

VIEWING ANGLEG : 88/88/88/88 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C

Contact Now

Chimei Innolux G104X1-L02 Application Details

Basic Detail :	Manufacturer G104X1-L02Model Name Panel Type a-Si TFT-LCD , LCM Another Name - Panel Size 10.4 inch Designed For
Maximum Ratings :	OP Temperature -20 ~ 70 °C ST Temperature -20 ~ 80 °C RoHS 1.5G (14.7 m/s²)Vibration Level

Chimei Innolux G104X1-L02 Optical Details

Basic Detail :	Luminance 400 cd/m² (Typ.) Contrast Ratio 1200:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 14/11 (Typ.)(Tr/Td) ms Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Operating Mode Super MVA, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.329; Wy:0.346 Support Color 16.2M (6-bit + FRC) Color Temperature 5646K White Variation 1.40 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio 55% sRGB 76% coverage Adobe RGB 58% coverage DCI-P3 57% coverage Rec.2020 41% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux G104X1-L02 Mechanical Details

Pixel Features :	Number of Pixel 1024(RGB)×768, XGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0685×0.2055 mm Pixel Pitch(W×H) 0.2055×0.2055 mm [123PPI]
Physical Size :	Active Viewing 210.4(W)×157.8(H) mm Overall Dim. 225.5(W)×176.3(H) mm Bezel Opening 215.4(W)×161.8(H) mm Overall Depth 8.7/10.67 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 4:3 Shape Style
Fixation :	Side mounting holes (4-M2) on left, right bezel
Other Detail :	Mass 480g (Typ.) Surface Glare (Haze 0%), Hard coating (3H)

Chimei Innolux G104X1-L02 Electronics Details

Refresh Rate :	60Hz
Reverse Scan :	Yes (180°)

Chimei Innolux G104X1-L02 Interface Detail

Signal Electrical :	Input Current 0.6/0.7A (Typ./Max.) Input Voltage 3.3V (Typ.) Consumption - Signal Interface LVDS (1 ch, 8-bit)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JAE FI-XB30SRL-HF11 1.0 mm 30 pins 1 pcs LVDS-30P1C8B-260A

Chimei Innolux G104X1-L02 Lightting Details

Lamp Features :	Lamp Type CCFL Amount 2 pcs Position Edge light type Exchange Replaceable Lamp Shape Straight Lamp Life 50K(Typ.) (Hours)
Lamp Electrical :	Input Voltage 460.0V (Typ.) Input Current 7.6±0.5mA Frequency 45/80KHz (Min./Max.) Turn-on Voltage 770/960V (Max.)(Ta=+25/0℃)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST BHR-03VS-1 4.0 mm 3 pins 1 pcs BLL-3PINS-LHH
Backlight Driver :	No

Chimei Innolux G104X1-L02 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	30 pcs / box	15.5 Kgs	500×400×330 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
