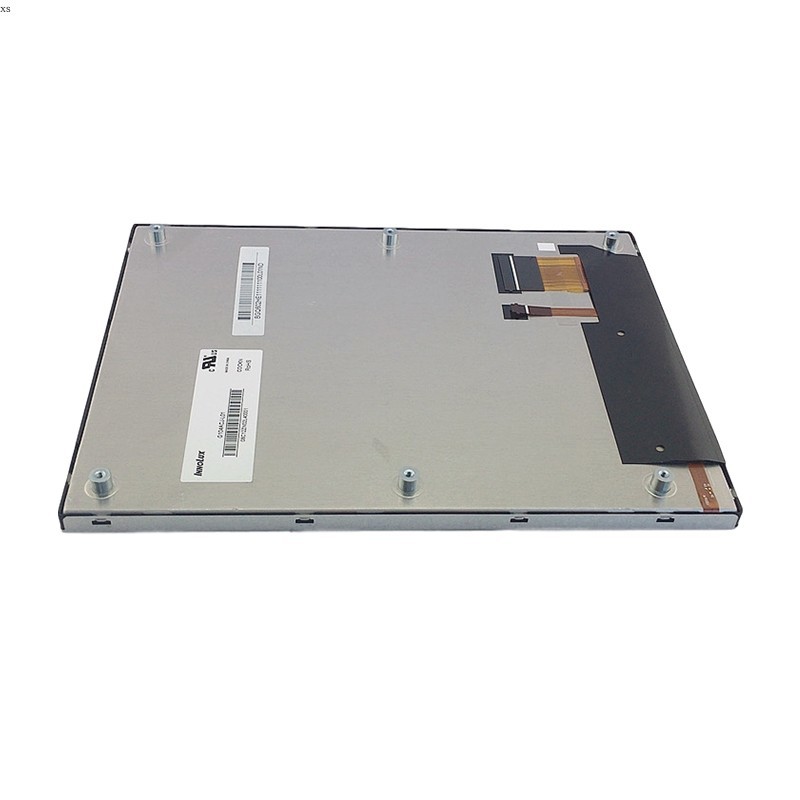

G104ACJ-L01 INNOLUX 10.4" 960(RGB)×1280 900 cd/m² INDUSTRIAL LCD DISPLAY

Name: G104ACJL01 INNOLUX 104quot 960RGB1280 900 cdm INDUSTRIAL LCD DISPLAY
Brand: INNOLUX
Price: 1 USD

Buy cheap G104ACJ-L01 INNOLUX 10.4" 960(RGB)×1280 900 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : INNOLUX

Model Number : G104ACJ-L01

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : G104ACJ-L01

BRAND : INNOLUX

SIZE : 10.4INCH

BRIGHTNESS : 900 cd/m² (Typ.)

Lamp Type : WLED

RESOLUTION : 960(RGB)×1280 [Quad-VGA] 153PPI

VIEWING ANGLEG : 85/85/85/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C

Contact Now

Innolux G104ACJ-L01 Application Details

Basic Detail :	Manufacturer		Model Name	G104ACJ-L01
	Panel Type	a-Si TFT-LCD , LCM	Another Name	-
	Panel Size	10.4 inch	Designed For
Maximum Ratings :	OP Temperature	-40 ~ 85 °C	ST Temperature	-40 ~ 90 °C
Maximum Ratings :	Vibration Level	1.5G (14.7 m/s²)	RoHS

Innolux G104ACJ-L01 Optical Details

Basic Information :	Luminance	900 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	13/12 (Typ.)(Tr/Td) (ms)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Operating Mode	AAS, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.313; Wy:0.329	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.42 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	73%	sRGB	93% coverage
	Adobe RGB	72% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmissivity

Innolux G104ACJ-L01 Mechanical Details

Pixel Features :	Number of Pixel	960(RGB)×1280 [Quad-VGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.055×0.165 mm	Pixel Pitch(W×H)	0.165×0.165 mm [153PPI]
Physical Size :	Active Viewing	158.4(W)×211.2(H) mm	Overall Dim.	173.4(W)×228.7(H) mm
Physical Size :	Bezel Opening	160.6(W)×213.9(H) mm	Overall Depth	8/14.27 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Portrait type
Outline Features :	Aspect Ratio(W:H)	3:4	Shape Style
Fixation :	Rear mounting Pole (6-M2.5)
Other Detail :	Mass	450/470g (Typ./Max.)	Surface	Antiglare, Hard coating (3H)

Innolux G104ACJ-L01 Interface Details

Signal Electrical :	Input Current	400/480mA (Typ./Max.)		Input Voltage	3.3V (Typ.)
Signal Electrical :	Consumption	1.32/1.58W (Typ./Max.)	Signal Interface	LVDS (1 ch, 8-bit)
Interface Features :	Position	-	Physical Type	Connector
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Signal Interface :	HRS	FH52-50S-0.5SH	1 pcs	0.5 mm	50 pins

Innolux G104ACJ-L01 Lightting Details

Lamp Features:	Lamp Shape	-	Lamp Type	WLED	Position	Edge light type
Lamp Features:	Exchange	-	Amount	-	Life	50K(Min.) (Hours)
Lamp Electrical :	Input Current	95/100mA (Typ./Max.)		Input Voltage	26.5/29.2/32.9V (Min./Typ./Max.)
Lamp Electrical :	Consumption	8.32/9.38W (Typ./Max.)
Interface Features :	Position	-	Physical Type	Connector
Interface Detail :	Brand	Model	Amount	Pin Pitch	Pin Amount	Pin Assignment
Interface Detail :	HRS	FH52-10S-0.5SH	1 pcs	0.5 mm	10 pins
Backlight Driver :	No

Innolux G104ACJ-L01 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	18 pcs / box	490×350×320 mm	10.1 Kgs

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
