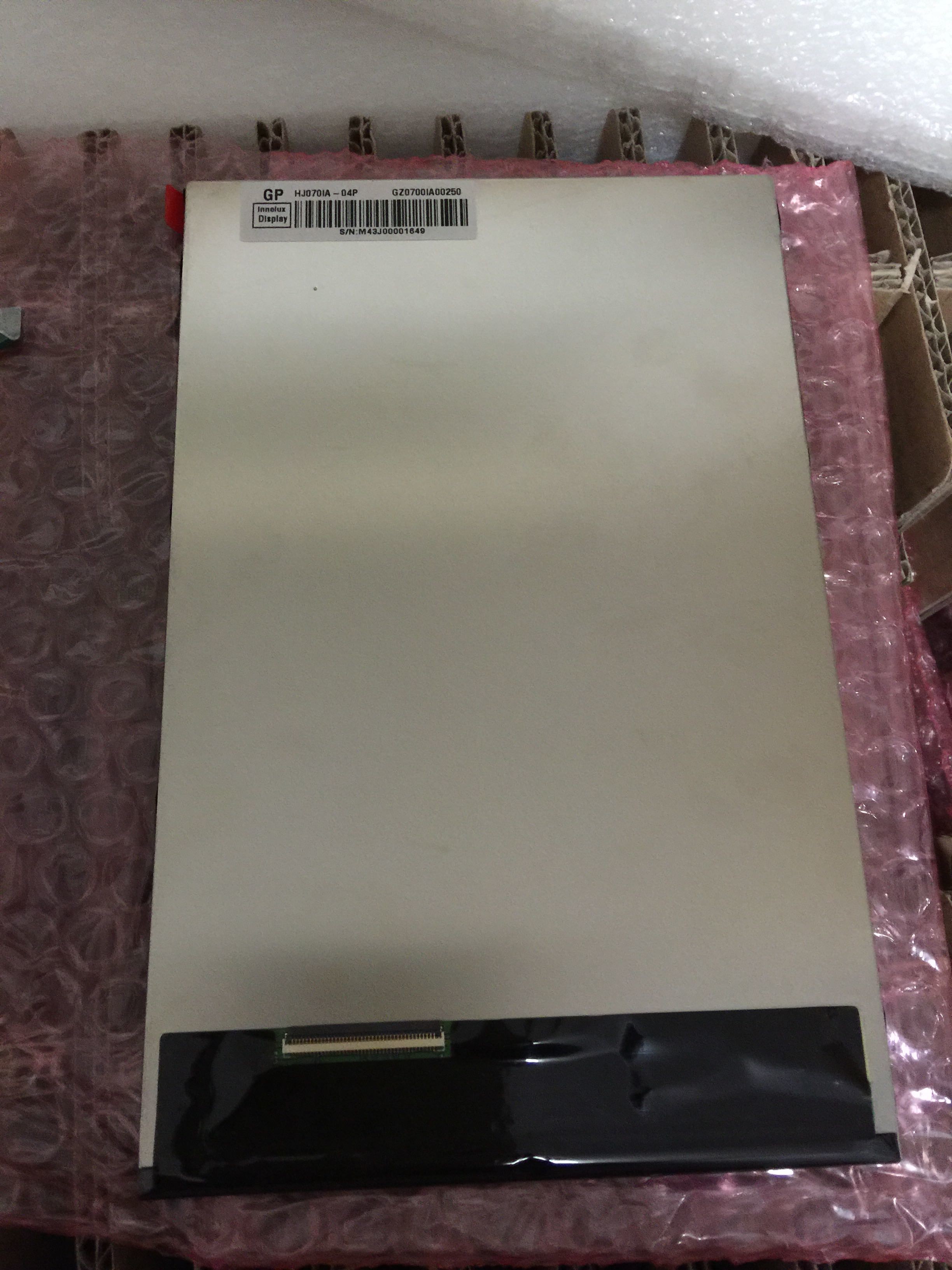

HJ070IA-04P Innolux 7.0" 800(RGB)×1280 400 cd/m² INDUSTRIAL LCD DISPLAY

Name: HJ070IA04P Innolux 70quot 800RGB1280 400 cdm INDUSTRIAL LCD DISPLAY
Brand: INNOLUX
Price: 1 USD

Buy cheap HJ070IA-04P Innolux 7.0" 800(RGB)×1280 400 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : INNOLUX

Model Number : HJ070IA-04P

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : HJ070IA-04P

BRAND : INNOLUX

SIZE : 7.0INCH

Lamp Type : WLED

Signal Interface : LVDS

RESOLUTION : 800(RGB)×1280 (WXGA) 215PPI

VIEWING ANGLEG : 85/85/85/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Storage Temp.: -20 ~ 60 °C Operating Temp.: -10 ~ 50 °C

BRIGHTNESS : 400 cd/m² (Typ.)

Refresh Rate : 60Hz

Contact Now

Innolux HJ070IA-04P Application Details

Basic Information :	Brand		Model	HJ070IA-04P
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	7.0"	Alias	-
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	-10 ~~ 50 °C
Environment :	RoHS		Vibration

Innolux HJ070IA-04P Mechanical Details

Pixel Features :	Resolution	800(RGB)×1280, WXGA	Dot Pitch(mm)	0.03925×0.11775 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.11775×0.11775 (H×V) [215PPI]
Mechanical Size :	Active Area(mm)	94.2(H) × 150.72(V)	Bezel Area(mm)	-
Mechanical Size :	Outline Dim.(mm)	104.43(H) × 161.78(V)	Depth(mm)	2.3/4.5 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape
Outline Features :	Aspect Ratio	10:16 (H:V)	Orientation	Portrait type
Mounting :	Face mounting holes (4 pcs) on left, right slugs
Other Spec :	Weight	79.5g	Treatment	Hard coating

Innolux HJ070IA-04P Optical Details

Basic Information :	Luminance(cd/m²)	400 (Typ.)	Contrast Ratio	800:1 (Typ.) (Transmissive)
	Viewing Angle	85/85/85/85 (Typ.)(CR≥10)	Display Mode	IPS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	15/20 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.310; Y:0.330	Display Colors	16.7M (8-bit)
Color Performance :	Color Temperature	6638K	White Uniformity	1.33/1.43 (Typ./Max.)(9 points)

Innolux HJ070IA-04P Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)

Innolux HJ070IA-04P Interface Details

Signal Electrical :	Voltage Supply	3.3/8.8/22/-7.0V (Typ.)(VDD/AVDD/VGH/VGL)		Current Supply	26.3/19.5/0.3/0.31mA (Typ.)(IDD/AIDD/IGH/IGL)
Signal Type :	LVDS (1 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position	-		Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	Vigorconn	F62240-H1210B	1 pcs	40 pins	0.5 mm

Innolux HJ070IA-04P Backlight Details

Backlight Features:	Shape	5 strings	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	5S5P	Life Time	15K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	9.0/9.6/10.6V (Min./Typ./Max.)		Current Supply	145/160/175mA (Min./Typ./Max.)
Lamp Electrical :	Consumption	1.54W (Typ.)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	No

Innolux HJ070IA-04P Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	50 pcs / box	6.94±0.35 Kgs	530×355×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
