Chimei Innolux HJ050NA-01K Application Details
| Basic Information : | Brand | | Model | HJ050NA-01K |
| Type | LCM a-Si TFT-LCD | Used For | |
| Screen Size | 5.0" | Alias | - |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | | Vibration |
Chimei Innolux HJ050NA-01K Mechanical Details
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.045×0.135 (H×V) |
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.135×0.135 (H×V) [188PPI] |
| Mechanical Size : | Active Area(mm) | 108(H) × 64.8(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type |
Chimei Innolux HJ050NA-01K Optical Details
| Basic Information : | Luminance(cd/m²) | - | Contrast Ratio | - |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock | Response(ms) | - |
| Color Performance : | White Coordinate | - | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Chimei Innolux HJ050NA-01K Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 108(W)×64.8(H) mm. As a TN, Normally White, Transmissive LCM product, HJ050NA-01K can provides , 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock . Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type.
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Product Tags:
|
|

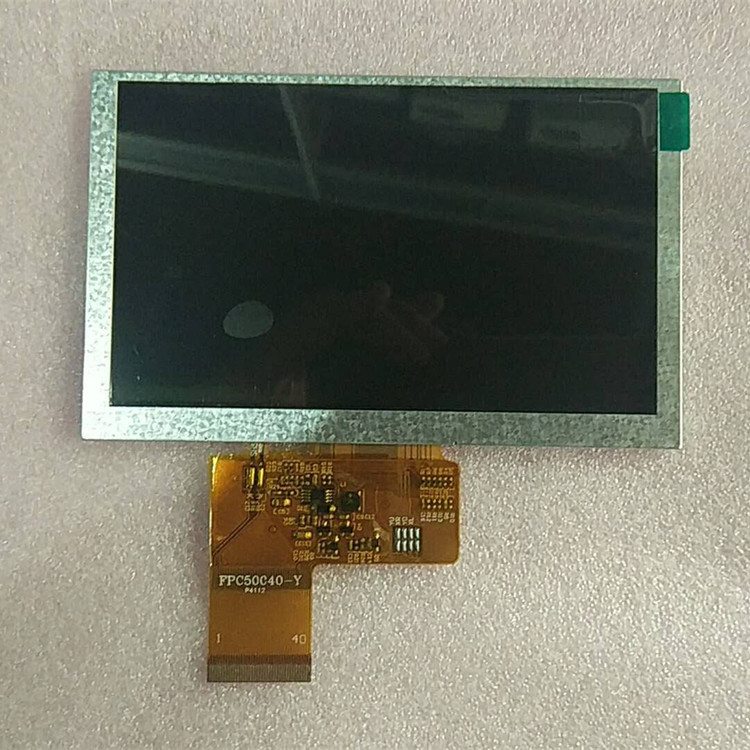

HJ050NA-01K CHIMEI Innolux 5.0" 800(RGB)×480 INDUSTRIAL LCD DISPLAY Images
|
