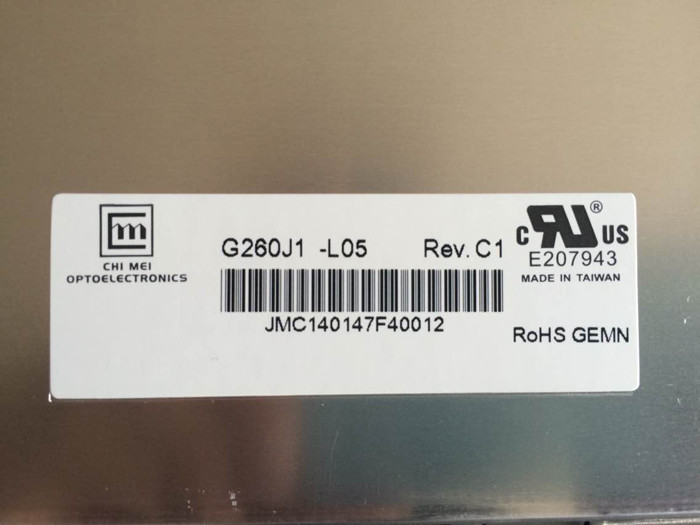

G260J1-L05 CHIMEI Innolux 25.5" 1920(RGB)×1200 350 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

G260J1-L05 CHIMEI Innolux 25.5" 1920(RGB)×1200 350 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : INNOLUX

Model Number : G260J1-L05

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : G260J1-L05

BRAND : INNOLUX

SIZE : 25.5 inch

BRIGHTNESS : 350CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1200, WUXGA, 88PPI

VIEWING ANGLEG : 88/88/88/88 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

Chimei Innolux G260J1-L05 Application Details

Basic Detail : Manufacturer   Model Name G260J1-L05
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 25.5 inch Designed For
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C
Vibration Level - RoHS



Chimei Innolux G260J1-L05 Optical Details

Basic Information : Luminance 350 cd/m² (Typ.) Contrast Ratio 1500 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 15/5 (Typ.)(Tr/Td) (ms)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10)  Operating Mode Super MVA, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.40/1.50 (Typ./Max.)(13 points)
1931 Color Gamlt : NTSC Ratio 97% sRGB 98% coverage
Adobe RGB 94% coverage DCI-P3 85% coverage
Rec.2020 72% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Chimei Innolux G260J1-L05 Mechanical Details

Pixel Features : Number of Pixel 1920(RGB)×1200 [WUXGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0955×0.2865 mm Pixel Pitch(W×H) 0.2865×0.2865 mm [88PPI]
Physical Size : Active Viewing 550.08(W)×343.8(H) mm Overall Dim. 582(W)×375.6(H) mm
Bezel Opening 554.1(W)×347.8(H) mm Overall Depth 41.5±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:10 Shape Style
Other Detail : Mass 3.45Kgs (Max.) Surface Antiglare (Haze 25%), Hard coating (3H)



Chimei Innolux G260J1-L05 Electronics Details

Refresh Rate : 60Hz
Reverse Scan : No



Chimei Innolux G260J1-L05 Interface Details

Signal Electrical : Input Current 3.2A (Max.) Input Voltage 5.0V (Typ.)
Consumption - Signal Interface LVDS (2 ch, 8-bit)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JAE FI-X30SSL-HF 1 pcs 1.0 mm 30 pins LVDS-30P2C8B-150A



Chimei Innolux G260J1-L05 Lightting Details

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Direct light type
Exchange - Amount 16 pcs Life 45K(Min.) (Hours)
Lamp Electrical : Input Current 5.0±0.5mA Input Voltage 1036±104V
Frequency 48/55/70KHz (Min./Typ./Max.) Turn-on Voltage 1620/1920V (Max.)(Ta=+25/0℃)
Consumption 83W (Typ.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
YEONHO 20022WR-14L 1 pcs 2.0 mm 14 pins
Backlight Driver : With Inverter



Chimei Innolux G260J1-L05 Packing Details

Package Box : Amount Size (L×W×H) Weight
5 pcs / box 680×400×360 mm 17.5 Kgs
