G260JJE-L07 Innolux 25.5" 1920(RGB)×1200 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

G260JJE-L07 Innolux 25.5" 1920(RGB)×1200 350 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : INNOLUX

Model Number : G260JJE-L07

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 200PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : G260JJE-L07

BRAND : INNOLUX

SIZE : 25.5 inch

BRIGHTNESS : 350CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1200, WUXGA, 88PPI

VIEWING ANGLEG : 88/88/88/88 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

Innolux G260JJE-L07 Application Details

Basic Info : Panel Brand   Panel Model G260JJE-L07
Diagonal Size 25.5" Application
Panel Type a-Si TFT-LCD , LCM Model Alias -
Reliability : Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C
RoHS State   Vibration Rating -



Innolux G260JJE-L07 Mechanical Details

Pixel Features : Pixel Format 1920(RGB)×1200 [WUXGA] Dot Pitch 0.0955×0.2865 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.2865×0.2865 mm (H×V) [88PPI]
Mechanical Size : Display Area 550.08×343.8 mm (H×V) Bezel Area 554.1×347.8 mm (H×V)
Outline Dim. 582×375.6 mm (H×V) Outline Depth 30.1±0.5 mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:10 (H:V) Shape Style
Other Features : Weight 3.65/3.85Kgs (Typ./Max.) Surface Antiglare, Hard coating (3H)



Innolux G260JJE-L07 Optical Details

Basic Information : Brightness 350 cd/m² (Typ.) Contrast Ratio 1500:1 (Typ.) (Transmissive)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Optical Mode Super MVA, Normally Black, Transmissive
Viewing Direction Symmetry Response Time 15/5 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.40/1.50 (Typ./Max.)(13 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 96% coverage
Adobe RGB 74% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Innolux G260JJE-L07 Electronics Details

Frame Frequency : 60Hz
Reverse Scan : No



Innolux G260JJE-L07 Backlight Details

Back-light Features: Lamp Shape - Lamp Type WLED Life Time 50K(Min.) (Hours)
Replacement - Amount - Position Direct light type
Interface Features : Type Connector Position - Lamp Driver With LED Driver
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
FCN JH2-D4-143N 2.0 mm 14 pins 1 pcs
Driver Electrical : Voltage Input 24.0±2.4V Current Input 1.2/1.5A (Typ./Max.)
Consumption 30.0/35.0W (Typ./Max.)



Innolux G260JJE-L07 Interface Details

Signal Systerm : LVDS (2 ch, 8-bit) Logic Voltage -
Signal Electrical : Voltage Input 5.0V (Typ.) Current Input 1.36/1.90A (Typ./Max.)
Interface Features : Type Connector Position
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
P-TWO 187114-30091 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-150A



Innolux G260JJE-L07 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
5 pcs / box 21.1 Kgs 713×429×453 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



G260JJE-L07 Innolux 25.5" 1920(RGB)×1200 350 cd/m² INDUSTRIAL LCD DISPLAYG260JJE-L07 Innolux 25.5" 1920(RGB)×1200 350 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

WVGA Industrial Lcd Panel



Capacitive TFT Touch Panel



VGA Lcd Display Panels


Buy cheap G260JJE-L07 Innolux 25.5" 1920(RGB)×1200 350 cd/m² INDUSTRIAL LCD DISPLAY product

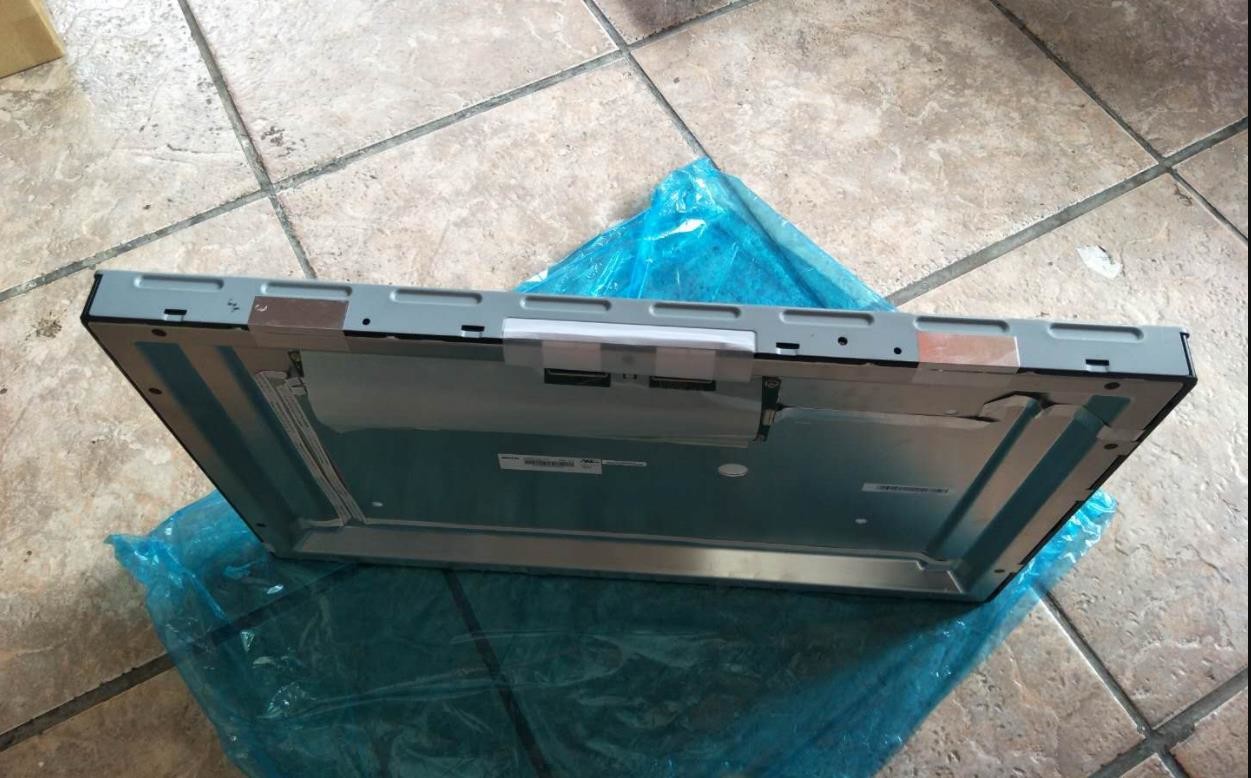

G260JJE-L07 Innolux 25.5" 1920(RGB)×1200 350 cd/m² INDUSTRIAL LCD DISPLAY Images
