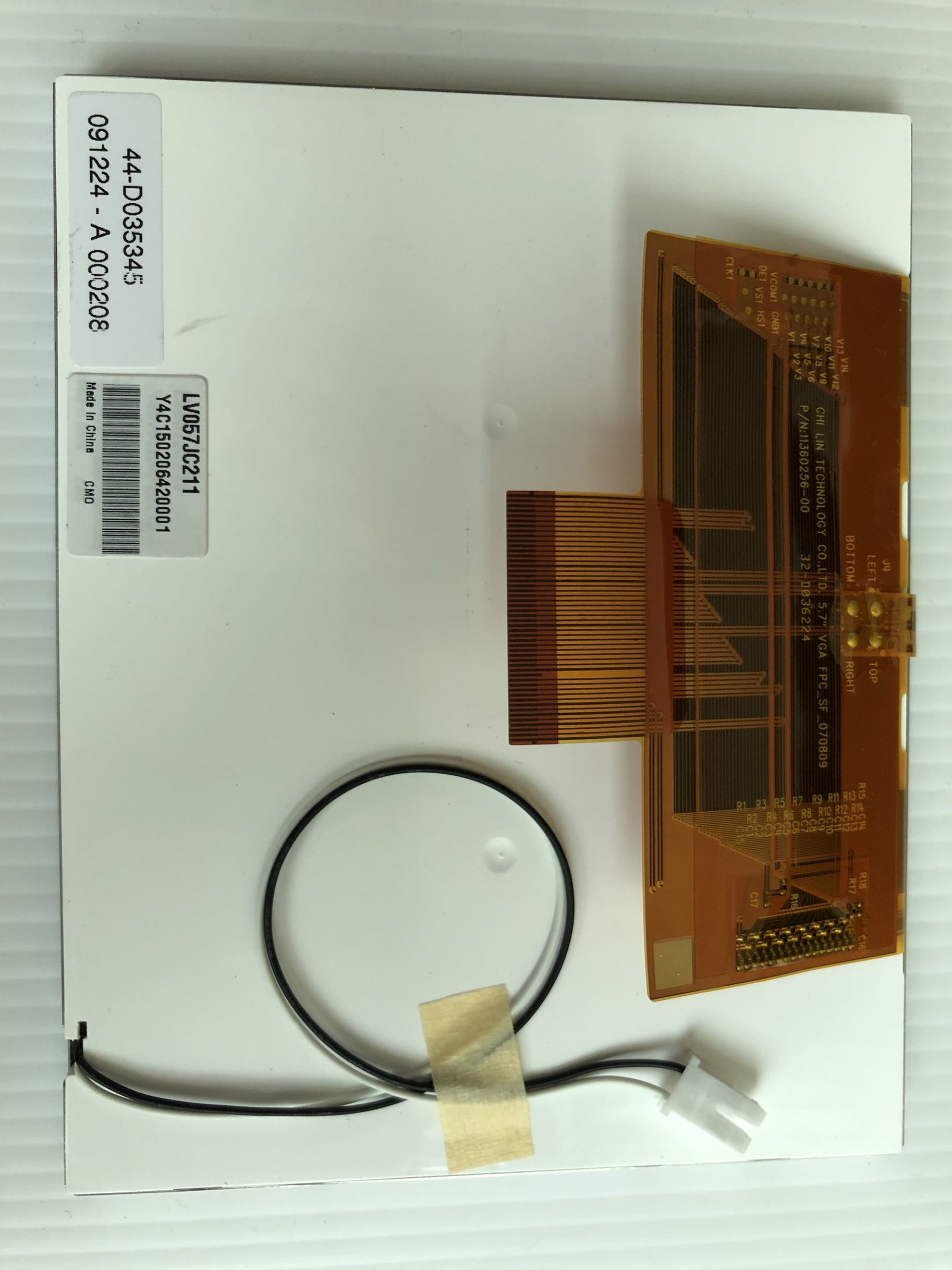

LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY

Name: LV057JC211 CHIHSIN 57quot 640RGB480 300 cdm INDUSTRIAL LCD DISPLAY
Brand: CHIHSIN
Price: 1 USD

Buy cheap LV057JC211 CHIHSIN 5.7" 640(RGB)×480 300 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : CHIHSIN

Model Number : LV057JC211

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LV057JC211

BRAND : CHIHSIN

SIZE : 5.7INCH

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 640(RGB)×480, VGA, 141PPI

VIEWING ANGLEG : 60/60/60/45 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Contact Now

ChiHsin LV057JC211 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		LV057JC211	a-Si TFT-LCD , LCM	-
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		-20 ~ 70 °C	-30 ~ 80 °C

ChiHsin LV057JC211 Mechanical Features

Panel Size :	5.7 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	640(RGB)×480, VGA	RGB Vertical Stripe	0.060×0.180 mm	0.180×0.180 mm [141PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	115.2×86.4 mm	-	125×98.8 mm	6.74/7.14 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	4:3 (W : H)	Landscape type
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	130g (Typ.)

ChiHsin LV057JC211 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	300 cd/m² (Typ.)	TN, Normally White, Transmissive	350:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	60/60/60/45 (Typ.)(CR≥10)	12 o'clock	15/35 (Typ.)(Tr/Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6638K	262K (6-bit)	X:0.310; Y:0.330

ChiHsin LV057JC211 Electronics Features

Reverse Scan :	Yes (U/D, L/R)

ChiHsin LV057JC211 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	6.5/15mA (Typ.)(IDD/IAVDD)		3.3/8.4/15.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL)			164mW (Typ.)
Voltage for Display Signals :	0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Interface Features :	Position	Type	Interface
Interface Features :	-	Connector	TTL (1 ch, 6-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :			1 pcs		50 pins

ChiHsin LV057JC211 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	Array	7S3P	-	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	60mA (Typ.)		22.0/24.5V (Typ./Max.)			1.32W (Typ.)
Interface Features :	Position	Type	WLED Driver
Interface Features :	-	Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail			1 pcs		2 pins	BLE-2PINS-AC

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
