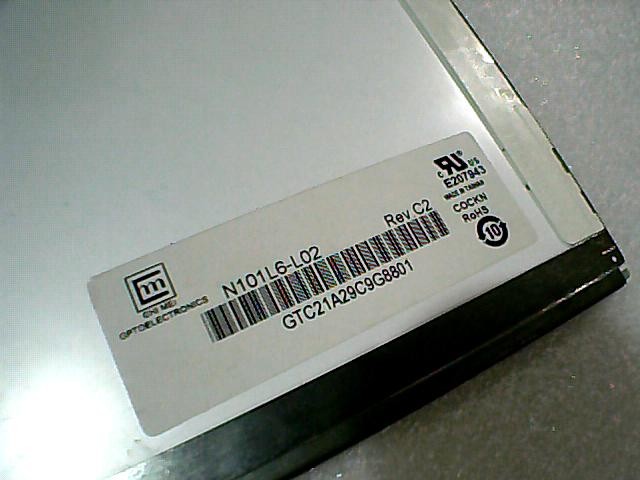

N101L6-L02 CMO 10.1" 1024(RGB)×600 200 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

N101L6-L02 CMO 10.1" 1024(RGB)×600 200 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : CMO

Model Number : N101L6-L02

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : N101L6-L02

BRAND : CMO

SIZE : 10.1INCH

BRIGHTNESS : 200CD/M2

Lamp Type : WLED

RESOLUTION : 1024(RGB)×600 [WSVGA] 117PPI

VIEWING ANGLEG : 45/45/20/45 (Typ.)(CR≥10

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

CMO N101L6-L02 Application Features

Basic Information : Brand Name Model Name  13 Compatible Type Model Alias
  N101L6-L02 a-Si TFT-LCD , LCM CMO1004
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



CMO N101L6-L02 Mechanical Features

Screen Size : 10.1"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1024(RGB)×600, WSVGA RGB Vertical Stripe 0.0725×0.2088 mm 0.2175×0.2088 mm [117PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
222.72×125.28 mm 226.34×128.1 mm 235×143 mm 4.9/5.2 (Typ./Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:9 Landscape type Wedge (PCBA Bent, T≥5.2mm)
Other Spec : Mass Panel Cover Surface Treatment
180/190g (Typ./Max.) - Glare (Haze 0%), Hard coating (3H)
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel



CMO N101L6-L02 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
200 cd/m² (Typ.) TN, Normally White, Transmissive 650:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 45/45/20/45 (Typ.)(CR≥10) 3/7 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
44% 62% 46%
DCI-P3 Coverage Rec.2020 Coverage Remarks
46% 33% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25 (Max.)(5 points)



MO N101L6-L02 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type 15K(Min.) 9S2P 2 strings -
WLED Electrical : Input Voltage Input Current Power Consumption
26.1/28.8/30.6V (Min./Typ./Max.) 20±1mA 1.00/1.15/1.29W (Min./Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Included in panel signal interface -
WLED Driver Electrical : Input Voltage Input Current Power Consumption
6.0/12.0/20.0V (Min./Typ./Max.)



CMO N101L6-L02 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 210/230mA (Typ./Max.) -
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 6-bit) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
I-PEX 20455-040E-12 1 pcs 40 pins 0.5 mm LVDS-40P1C6B-060B



CMO N101L6-L02 Packing Features

Package Box : Amount Weight Size (L×W×H)
40 pcs / box 10.4 Kgs 435×350×320 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
