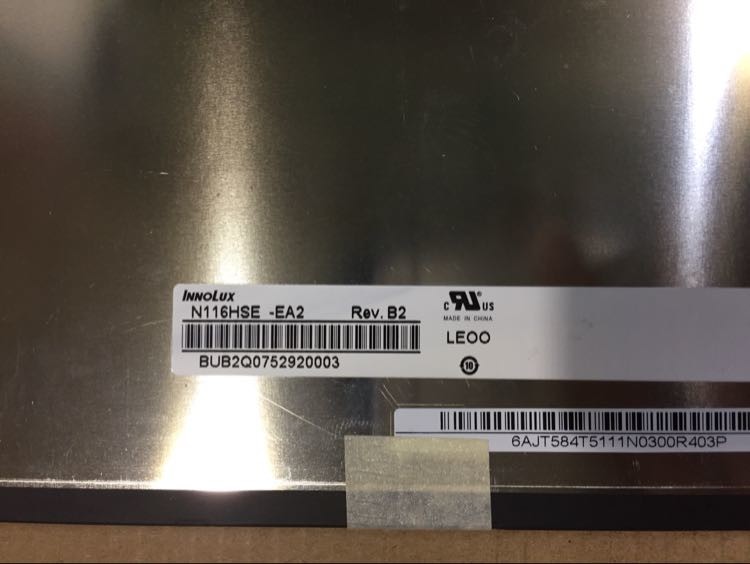

N116HSE-EA2 Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Name: N116HSEEA2 Innolux 116quot 1920RGB1080 300 cdm INDUSTRIAL LCD DISPLAY
Brand: INNOLUX
Price: 1 USD

Buy cheap N116HSE-EA2 Innolux 11.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : INNOLUX

Model Number : N116HSE-EA2

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : N116HSE-EA2

BRAND : INNOLUX

SIZE : 11.6 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080, FHD, 190PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

Contact Now

Innolux N116HSE-EA2 Application Details

Basic Information :	Brand N116HSE-EA2Model Type a-Si TFT-LCD , LCM Used For Screen Size 11.6 inch Alias CMN1133
Environment :	Storage Temp. -20 ~ 60 °C Operating Temp. 0 ~ 50 °C

Innolux N116HSE-EA2 Mechanical Details

Pixel Features :	Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.0445×0.1335 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.1335×0.1335 (H×V) [190PPI]
Mechanical Size :	Active Area(mm) 256.32(H) × 144.18(V) Bezel Area(mm) - Outline Dim.(mm) 268(H) × 157.35(V) Depth(mm) 2.7/5.15mm (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Slim (PCBA Bent, T≤3.0mm) Aspect Ratio 16:9 (H:V) Orientation Landscape type
Mounting :	Without
Other Spec :	Weight 210/220g (Typ./Max.) Treatment Antiglare, Hard coating (3H)

Innolux N116HSE-EA2 Optical Details

Basic Information :	Luminance(cd/m²) 300 (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode AAS, Normally Black, Transmissive Best View on Symmetry Response(ms) 14/11 (Typ.)(Tr/Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 16.7M (8-bit) Color Temperature 6485K White Uniformity 1.25/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 72% sRGB 95% coverage Adobe RGB 73% coverage DCI-P3 75% coverage Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Innolux N116HSE-EA2 Interface Detail

Signal Electrical :	Voltage Supply 3.3V (Typ.) Current Supply 250/280mA (Typ./Max.) Consumption 0.89W (Max.)
Signal Type :	eDP (2 Lanes) Logic Voltage -
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration I-PEX 20455-030E-12 0.5 mm 30 pins 1 pcs EDP-30P2L-016A

Innolux N116HSE-EA2 Backlight Details

Backlight Features :	Type WLED Quantity 4 strings Position Edge light type Replacement - Shape 4 strings Life Time 15K(Min.) (Hours)
Lamp Electrical :	Voltage Supply 31.9±3.3V Current Supply 17.5mA (Typ.) Consumption 2.2/2.47W (Typ./Max.)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	No

Innolux N116HSE-EA2 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	30 pcs / box	-	489×382×275 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
