P101KDA-AK0 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY

Name: P101KDAAK0 Innolux 101quot 1200RGB1920 400 cdm INDUSTRIAL LCD DISPLAY
Brand: INNOLUX
Price: 1 USD

Buy cheap P101KDA-AK0 Innolux 10.1" 1200(RGB)×1920 400 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : INNOLUX

Model Number : P101KDA-AK0

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : P101KDA-AK0

BRAND : INNOLUX

SIZE : 10.1INCH

BRIGHTNESS : 400 cd/m² (Typ.)

Lamp Type : WLED

RESOLUTION : 1200(RGB)×1920, WUXGA, 225PPI

VIEWING ANGLEG : 85/85/85/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C

Contact Now

Innolux P101KDA-AK0 Application Features

Basic Information :	Brand Name	Model Name	Type	Model Alias
Basic Information :		P101KDA-AK0	a-Si TFT-LCD , LCM	-
Maximum Ratings :	RoHS	Operating Temperature	Storage Temperature	Vibration Level
Maximum Ratings :		-10 ~ 60 °C	-20 ~ 70 °C

Innolux P101KDA-AK0 Mechanical Features

Screen Size :	10.1"
Pixel Features :	Pixel Number	Pixel Format	Dot Pitch (H×V)	Pixel Pitch (H×V)
Pixel Features :	1200(RGB)×1920, WUXGA	RGB Vertical Stripe	0.0376×0.1128 mm	0.1128×0.1128 mm [225PPI]
Mechanical Size :	Display Area (H×V)	Bezel Opening (H×V)	Overall Dimension (H×V)	Overall Depth
Mechanical Size :	135.36×216.576 mm	-	142.96×235.887 mm	1.85/3.3 (Typ./Max.) mm
Outline Features :	Form Shape	Aspect Ratio (H:V)	Orientation	Shape Style
Outline Features :	Flat Rectangle	10:16	Portrait type
Other Spec :	Mass	Panel Cover	Surface Treatment
Other Spec :	105g (Max.)	-	Glare (Haze 0%), Hard coating
Holes & Brackets :	Without

Innolux P101KDA-AK0 Optical Features

Basic Information :	Luminance	Work Mode	Contrast Ratio
	400 cd/m² (Typ.)	AAS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Good View at	Viewing Angle	Response Time
	Symmetry	85/85/85/85 (Typ.)(CR≥10)	25 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature:	Support Color	Color Coordinate
Dispaly Color :	7351K	16.7M (8-bit)	X:0.300; Y:0.320
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	69%	95%	72%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	72%	52%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity :	1.25/1.33 (Typ./Max.)(9 points)

Innolux P101KDA-AK0 Backlight Features

Back-light Features:	Type	Position	Life(Hours)	Amount	Shape	Replacement
Back-light Features:	WLED	Edge light type	15K(Min.)	-	-	-
WLED Electrical :	Input Voltage		Input Current			Power Consumption
WLED Electrical :	23.2±2.4V		80mA (Typ.)			2.1W (Max.)
Interface Features :	WLED Driver State			Physical Type		Interface Position
Interface Features :	No			Included in panel signal interface		-

Innolux P101KDA-AK0 Interface Features

Signal Electrical :	Input Voltage		Input Current			Power Consumption
Signal Electrical :	3.3V (Typ.)		0.15A (Typ.)			-
Interface Features :	Signal Type			Physical Type		Interface Position
Interface Features :	MIPI (4 data lanes)			Connector		-
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
Interface Detail :	HRS	FH26W-39S-0.3SHW	1 pcs	39 pins	0.3 mm

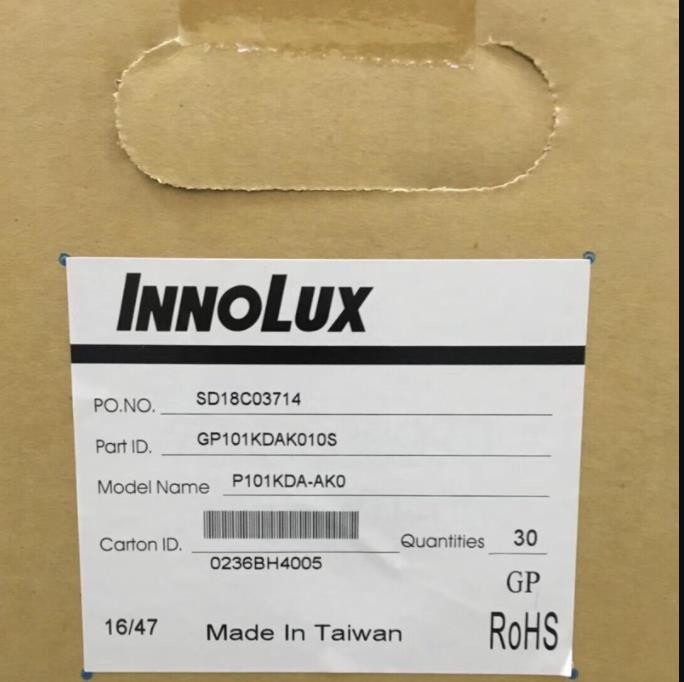

Innolux P101KDA-AK0 Packing Features

Package Box :	Amount	Weight	Size (L×W×H)
Package Box :	30 pcs / box	-	-

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
