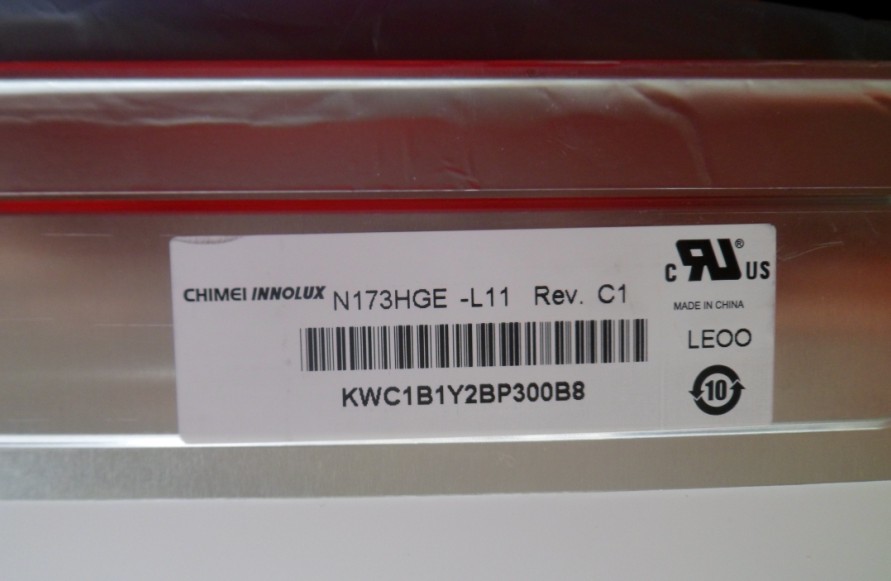

N173HGE-L11 CHIMEI Innolux 17.3" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

Name: N173HGEL11 CHIMEI Innolux 173quot 1920RGB1080 300 cdm INDUSTRIAL LCD DISPLAY
Brand: INNOLUX
Price: 1 USD

Buy cheap N173HGE-L11 CHIMEI Innolux 17.3" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY product

Brand Name : INNOLUX

Model Number : N173HGE-L11

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 800PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : N173HGE-L11

BRAND : INNOLUX

SIZE : 17.3INCH

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 127PPI

VIEWING ANGLEG : 70/70/60/60 (Typ.)(CR≥10)

TEMPERATURE RANG : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

Chimei Innolux N173HGE-L11 Application Details

Basic Information :	Brand		Model	N173HGE-L11 3 Compatible
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	17.3"	Alias	CMO1720
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C

Chimei Innolux N173HGE-L11 Mechanical Details

Pixel Features :	Resolution	1920(RGB)×1080, FHD	Dot Pitch(mm)	0.0663×0.1989 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.1989×0.1989 (H×V) [127PPI]
Mechanical Size :	Active Area(mm)	381.888(H) × 214.812(V)	Bezel Area(mm)	386.18(H) × 218.85(V)
Mechanical Size :	Outline Dim.(mm)	398.1(H) × 232.8(V)	Depth(mm)	5.7/6.0 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Wedge (PCBA Bent, T≥5.2mm)
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (8-M2) on left, right bezel
Other Spec :	Weight	585/600g (Typ./Max.)	Treatment	Antiglare, Hard coating (3H)

Chimei Innolux N173HGE-L11 Optical Details

Basic Information :	Luminance(cd/m²)	300 (Typ.)	Contrast Ratio	650:1 (Typ.) (Transmissive)
	Viewing Angle	70/70/60/60 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
	Best View on	6 o'clock	Response(ms)	2/6 (Typ.)(Tr/Td)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	262K (6-bit)
Color Performance :	Color Temperature	6485K	White Uniformity	1.25 (Max.)(5 points)
1931 Color Gamlt :	NTSC Ratio	71%	sRGB	96% coverage
	Adobe RGB	74% coverage	DCI-P3	74% coverage
	Rec.2020	53% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Chimei Innolux N173HGE-L11 Interface Details

Signal Electrical :	Voltage Supply	3.3V (Typ.)		Current Supply	540/640mA (Typ./Max.)
Signal Electrical :	Consumption	1.7W (Max.)
Signal Type :	LVDS (2 ch, 6-bit)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	STARCONN	111A40-0000RA-G3	1 pcs	40 pins	0.5 mm	LVDS-40P2C6B-010C

Chimei Innolux N173HGE-L11 Backlight Details

Backlight Features:	Shape	8 strings	Type	WLED	Position	Edge light type
Backlight Features:	Replacement	-	Quantity	-	Life Time	15K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	30.8/35.2/37.4V (Min./Typ./Max.)		Current Supply	23mA (Typ.)
Lamp Electrical :	Consumption	5.38/6.47/7.22W (Min./Typ./Max.)
Interface Features :	Position	-		Type	Included in panel signal interface
Backlight Driver :	With LED Driver
Driver Electrical :	Voltage Supply	7.0/12.0/21.0V (Min./Typ./Max.)		Current Supply	550/625/675mA (Min./Typ./Max.)
Driver Electrical :	Consumption	8.5W (Max.)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
