LM215WF4-TLE8 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : LG DISPLAY

Model Number : LM215WF4-TLE8

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 300PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM215WF4-TLE8

BRAND : LG DISPLAY

SIZE : 21.5 inch

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 102PPI

VIEWING ANGLEG : 85/85/75/85 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM215WF4-TLE8 Application Details

Basic Info : Panel Brand   Panel Model LM215WF4-TLE8
Diagonal Size 21.5" Application
Panel Type a-Si TFT-LCD , LCM Model Alias LM215WF4 (TL)(E8)
Reliability : Operating Temp. 0 ~ 50 °C Storage Temp. -20 ~ 60 °C



LG Display LM215WF4-TLE8 Mechanical Details

Pixel Features : Pixel Format 1920(RGB)×1080 [FHD] Dot Pitch 0.08275×0.24825 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.24825×0.24825 mm (H×V) [102PPI]
Mechanical Size : Display Area 476.64×268.11 mm (H×V) Bezel Area 479.8×271.3 mm (H×V)
Outline Dim. 495.6×292.2 mm (H×V) Outline Depth 9.2/10.7 (Typ./Max.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 16:9 (H:V) Shape Style Normal bezel
Holes & Brackets : Side mounting holes (6-M3) on left, up, down bezel
Other Features : Weight 1.77/1.86Kgs (Typ./Max.) Surface Antiglare, Hard coating (3H)



LG Display LM215WF4-TLE8 Optical Details

Basic Information : Brightness 250 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 85/85/75/85 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction 6 o'clock Response Time 1.3/3.7 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Color Numbers 16.7M (6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 97% coverage
Adobe RGB 75% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM215WF4-TLE8 Backlight Details

Back-light Features: Lamp Shape 2 strings Lamp Type WLED Life Time 30K(Min.) (Hours)
Replacement - Amount 16S2P Position Edge light type (Right side)
Lamp Electrical : Voltage Input 51.2±4.8V Current Input 110/120mA (Typ./Max.)
Consumption 11.26/12.32W (Typ./Max.)
Interface Features : Type Connector Position   Lamp Driver No
Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
YEONHO 10019HR-06 1.0 mm 6 pins 1 pcs BLE-6PINS-CNAANC



LG Display LM215WF4-TLE8 Interface Details

Signal Systerm : LVDS (2 ch, 8-bit) Logic Voltage -
Signal Electrical : Voltage Input 5.0V (Typ.) Current Input 1.32/1.72A (Typ./Max.)
Consumption 4.95/6.45W (Typ./Max.)
Interface Features : Type Connector Position
Connector Detail : Brand Model Pin Pitch Pins Amount Configuration
LS Mtron GT103-30S-HF15-E2500 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160C



LG Display LM215WF4-TLE8 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
12 pcs / box - 365×315×578 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



LM215WF4-TLE8 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

WVGA Industrial TFT Display



RGB Vertical LCD Display



Capacitive TFT Touch Panel


Buy cheap LM215WF4-TLE8 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY product

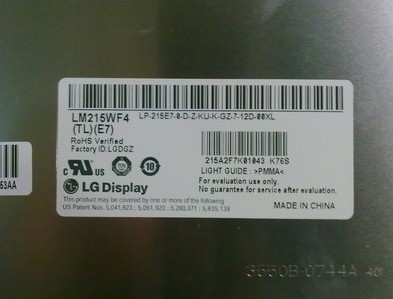

LM215WF4-TLE8 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY Images
