LM270WQ4-SSB3 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : LG DISPLAY

Model Number : LM270WQ4-SSB3

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM270WQ4-SSB3

BRAND : LG DISPLAY

SIZE : 27.0INCH

BRIGHTNESS : 350CD/M2

Lamp Type : WLED

RESOLUTION : 2560(RGB)×1440 [Quad-HD] 108PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM270WQ4-SSB3 Application Details

Basic Detail : Manufacturer   Model Name LM270WQ4-SSB3
Panel Type a-Si TFT-LCD , LCM Another Name LM270WQ4 (SS)(B3)
Panel Size 27.0 inch Designed For
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C



LG Display LM270WQ4-SSB3 Optical Details

Basic Information : Luminance 350 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 14 (Typ.)(G to G) (ms)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)  Operating Mode AH3-IPS, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.33 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 76% sRGB 100% coverage
Adobe RGB 77% coverage DCI-P3 79% coverage
Rec.2020 57% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM270WQ4-SSB3 Mechanical Details

Pixel Features : Number of Pixel 2560(RGB)×1440 [Quad-HD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0777×0.2331 mm Pixel Pitch(W×H) 0.2331×0.2331 mm [108PPI]
Physical Size : Active Viewing 596.736(W)×335.664(H) mm Overall Dim. 608.8(W)×355.4(H) mm
Bezel Opening - Overall Depth 9.3/14.1 (Typ./Max.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style 3-side borderless
Fixation : Rear mounting holes (11-M3)
Other Detail : Mass TBD Surface Antiglare (Haze 25%), Hard coating (3H)



LG Display LM270WQ4-SSB3 Interface Details

Signal Electrical : Input Current 610/790mA (Typ./Max.) Input Voltage 10.0V (Typ.)
Consumption 6.1/8.3W (Typ./Max.) Signal Interface LVDS (4 ch, 8-bit)
Interface Features : Position   Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
UJU IS050-C51B-C39-A 1 pcs 0.5 mm 51 pins
UJU IS050-C41B-C39-A 1 pcs 0.5 mm 41 pins



LG Display LM270WQ4-SSB3 Lightting Details

Lamp Features: Lamp Shape 4 strings Lamp Type WLED Position Edge light type (Bottom side)
Exchange - Amount 15S4P Life 30K(Min.) (Hours)
Lamp Electrical : Input Current 105/110mA (Typ./Max.) Input Voltage 42.3±3.0V
Consumption 16.9/18.1W (Typ./Max.)
Interface Features : Position   Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST BM06B-SHJS-TB(HF) 1 pcs 1.0 mm 6 pins BLE-6PINS-CCAACC
Backlight Driver : No



LG Display LM270WQ4-SSB3 Packing Details

Package Box : Amount Size (L×W×H) Weight
10 pcs / box 700×355×430 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



LM270WQ4-SSB3 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAYLM270WQ4-SSB3 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY


Product Tags:

VGA Touch Lcd Video Display



WVGA Industrial TFT Display



LM270WQ4-SSB3 Square Tft Display


Buy cheap LM270WQ4-SSB3 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY product

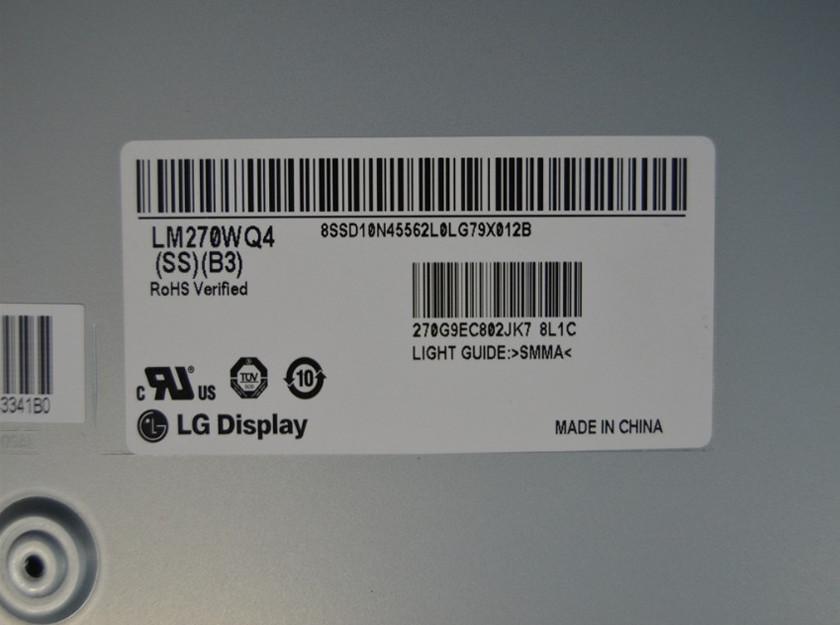

LM270WQ4-SSB3 LG Display 27.0" 2560(RGB)×1440 350 cd/m² INDUSTRIAL LCD DISPLAY Images
