LD320EUN-SLM1 LG Display 32" 1920(RGB)×1080 450 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LD320EUN-SLM1 LG Display 32" 1920(RGB)×1080 450 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : LG DISPLAY

Model Number : LD320EUN-SLM1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LD320EUN-SLM1

BRAND : LG DISPLAY

SIZE : 32 inch

BRIGHTNESS : 450CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080, FHD, 69PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LD320EUN-SLM1 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
  LD320EUN-SLM1 a-Si TFT-LCD , LCM LD320EUN (SL)(M1)
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



LG Display LD320EUN-SLM1 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
450 (Typ.) 89/89/89/89 (Min.)(CR≥10) 22 (G to G)
Best View on Display Mode Contrast Ratio
Symmetry S-IPS, Normally Black, Transmissive 1300 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
9972K 16.7M (8-bit) X:0.279; Y:0.292
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
66% 90% 68%
DCI-P3 Coverage Rec.2020 Coverage Remarks
68% 49% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.30 (Typ.)(5 points)



LG Display LD320EUN-SLM1 Mechanical Features

Panel Size : 32.0"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1920(RGB)×1080 [FHD] RGB Vertical Stripe 0.36375×0.36375 [69PPI] 0.12125×0.36375
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
698.4(H) × 392.85(V) 705.6(H) × 400.1(V) 727.4(H) × 429(V) 28.7 (Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape / Portrait 16:9 (H:V)
Other Detail : Weight Panel Cover Treatment
5.40/5.70Kgs (Typ./Max.) - Antiglare (Haze 3%), Hard coating (2H)



LG Display LD320EUN-SLM1 Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type - - 50K(Typ.) -
Interface Features : Position Backlight Driver Type
- With LED Driver Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
YEONHO 20022WR-H14B2 2.0 mm 14 pins 1 pcs
Driver Electrical : Voltage Supply Current Supply Power Consumption
24.0±1.2V 1.33/1.45A (Typ./Max.) 31.9/34.8W (Typ./Max.)



LG Display LD320EUN-SLM1 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
12.0V (Typ.) 492/640mA (Typ./Max.) 5.9/7.7W (Typ./Max.)
Interface Features : Position Signal Type
- LVDS (2 ch, 8-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JAE FI-R51S-HF 0.5 mm 51 pins 1 pcs LVDS-51P2C8B-048A



LG Display LD320EUN-SLM1 Packing Features

Package Box : Quantity Weight Box Size
6 pcs / box - 365×847×530 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.



LD320EUN-SLM1 LG Display 32" 1920(RGB)×1080 450 cd/m² INDUSTRIAL LCD DISPLAYLD320EUN-SLM1 LG Display 32" 1920(RGB)×1080 450 cd/m² INDUSTRIAL LCD DISPLAY






Product Tags:

LD320EUN-SLM1 TFT LCD Panel



Symmetry TFT LCD Panel



LVDS TFT LCD Module


Buy cheap LD320EUN-SLM1 LG Display 32" 1920(RGB)×1080 450 cd/m² INDUSTRIAL LCD DISPLAY product

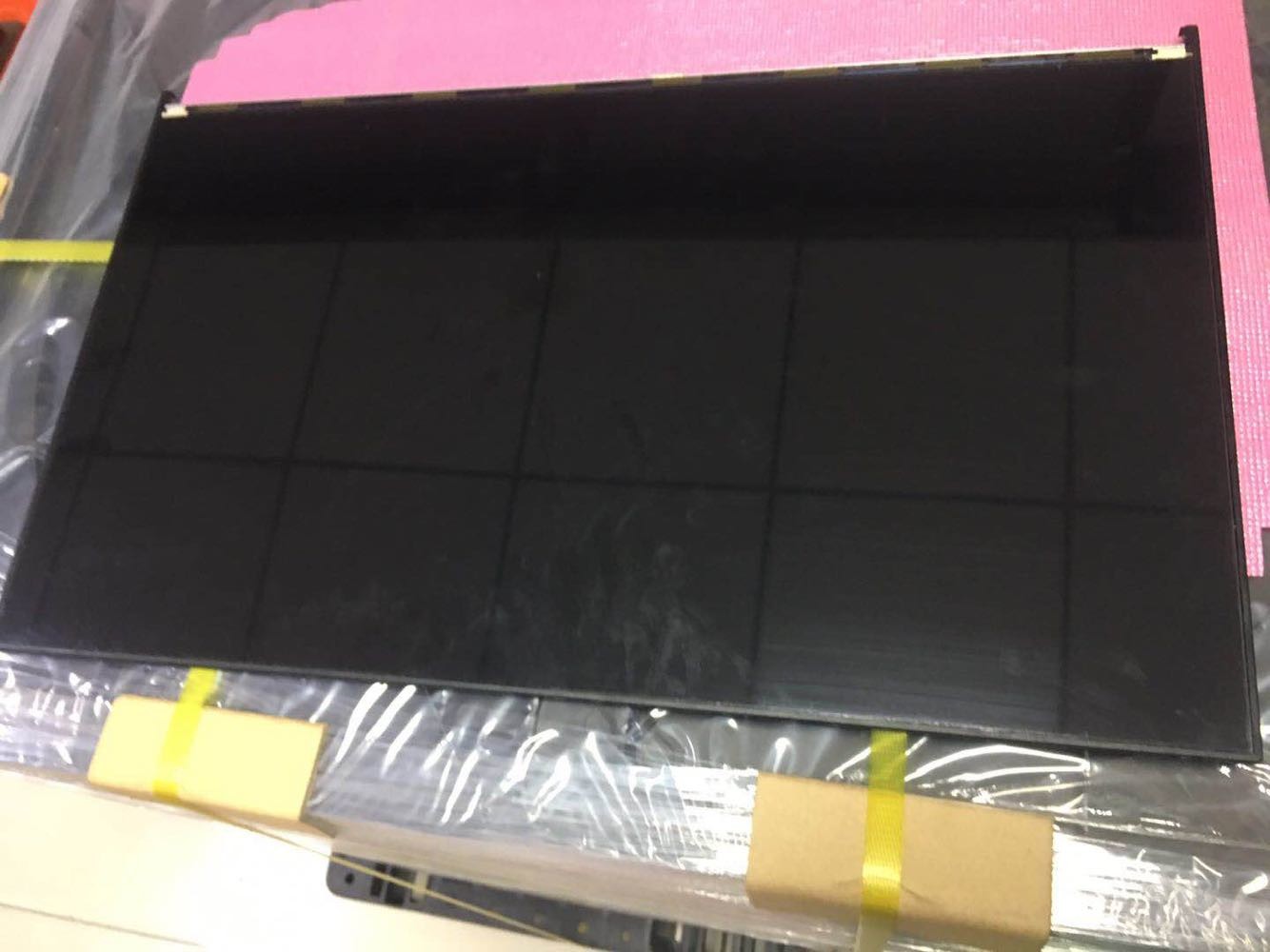

LD320EUN-SLM1 LG Display 32" 1920(RGB)×1080 450 cd/m² INDUSTRIAL LCD DISPLAY Images
