LM375QW1-SSA1 LG Display 37.5" 3840(RGB)×1600 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Categories
Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LM375QW1-SSA1 LG Display 37.5" 3840(RGB)×1600 300 cd/m² INDUSTRIAL LCD DISPLAY

Brand Name : LG DISPLAY

Model Number : LM375QW1-SSA1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 600PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM375QW1-SSA1

BRAND : LG DISPLAY

SIZE : 37.5 inch

BRIGHTNESS : 300CD/M2

Lamp Type : WLED

RESOLUTION : 3840(RGB)×1600, UHD, 110PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM375QW1-SSA1 Application Features

Basic Information : Brand Name Model Name Type Model Alias

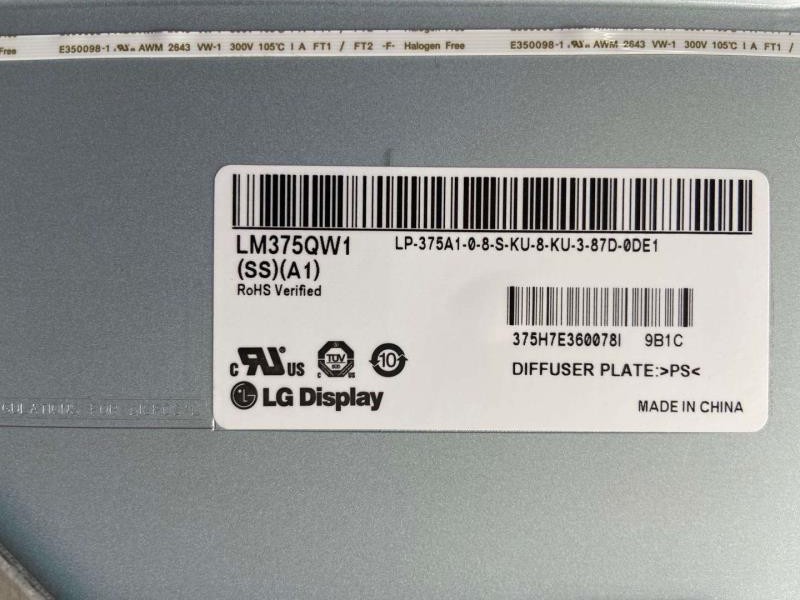

  LM375QW1-SSA1 a-Si TFT-LCD , LCM LM375QW1 (SS)(A1)
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



LG Display LM375QW1-SSA1 Mechanical Features

Screen Size : 37.5"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
3840(RGB)×1600, UHD RGB Vertical Stripe 0.076×0.229 mm 0.229×0.229 mm [110PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
879.36×366.4 mm - 890×378.8 mm 16.05 (Typ.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Curved Display, R2300 24:10 Landscape type 3-side borderless
Other Spec : Mass Panel Cover Surface Treatment
5.26/5.52kGS (Typ./Max.) - Antiglare, Hard coating (3H)
Holes & Brackets : Rear mounting holes (13-M3)



LG Display LM375QW1-SSA1 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
300 cd/m² (Typ.) IPS, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10) 14 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 1.07B (8-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
76% 100% 77%
DCI-P3 Coverage Rec.2020 Coverage Remarks
79% 57% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM375QW1-SSA1 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type 30K(Min.) - - -
WLED Electrical : Input Voltage Input Current Power Consumption
43.5±3V 120/125mA (Typ./Max.) 31.3/33.5W (Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
  2037WR-H12 1 pcs 12 pins



LG Display LM375QW1-SSA1 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
10.0V (Typ.) 0.88/1.17/1.46A (Min./Typ./Max.) 8.8/11.7/14.6W (Min./Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
eDP (4 Lanes) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
LS Mtron GT05Q-30S-H10 1 pcs 30 pins 0.5 mm EDP-30P4L-030A



LG Display LM375QW1-SSA1 Packing Features

Package Box : Amount Weight Size (L×W×H)
12 pcs / box - 1300×1140×1100 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
