LCM 102PPI NTSC Industrial Lcd Display 1920×1080 250cd/m2 LM215WF3-SLC1

Name: LCM 102PPI NTSC Industrial Lcd Display 19201080 250cdm2 LM215WF3SLC1
Brand: LG DISPLAY
Price: 1 USD

Buy cheap LCM 102PPI NTSC Industrial Lcd Display 1920×1080 250cd/m2 LM215WF3-SLC1 product

Brand Name : LG DISPLAY

Model Number : LM215WF3-SLC1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM215WF3-SLC1

BRAND : LG DISPLAY

SIZE : 21.5 inch

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 [FHD] 102PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

LG Display LM215WF3-SLC1 Application Features

Basic Information :	Brand	Model	Type	Model Alias
Basic Information :		LM215WF3-SLC1	a-Si TFT-LCD , LCM	LM215WF3 (SL)(C1)
Reliability :	RoHS	Operating Temperature	Storage Temperature	Vibration Resistance
Reliability :		0 ~ 50 °C	-20 ~ 60 °C

LG Display LM215WF3-SLC1 Mechanical Features

Panel Size :	21.5 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1920(RGB)×1080, FHD	RGB Vertical Stripe	0.0825×0.2475 mm	0.2475×0.2475 mm [102PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	475.2×267.3 mm	478.8×271.3 mm	495.6×292.2 mm	7.8/10.7 (Typ./Max.) mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	16:9 (W : H)	Landscape type	Normal bezel
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	1.19/1.25Kgs (Typ./Max.)	Antiglare, Hard coating (3H)

LG Display LM215WF3-SLC1 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	250 cd/m² (Typ.)	IPS, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	89/89/89/89 (Typ.)(CR≥10)	Symmetry	14 (Typ.)(G to G) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	16.7M (6-bit + Hi-FRC)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	75%	96%	74%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	77%	56%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.33 (Max.)(9 points)

LG Display LM215WF3-SLC1 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	700/805mA (Typ./Max.)		5.0V (Typ.)			3.5/4.03W (Typ./Max.)
Interface Features :	Position	Type	Interface
Interface Features :		Connector	LVDS (2 ch, 8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	UJU	IS100-L30O-C23	1 pcs	1.0 mm	30 pins	LVDS-30P2C8B-160C

LG Display LM215WF3-SLC1 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type (Bottom side)	4 strings	13S4P	30K(Min.)	-
WLED Electrical :	Current Input		Voltage Input			Consumption
WLED Electrical :	90/95mA (Typ./Max.)		40.3±2.6V			14.5W (Typ.)
Interface Features :	Position	Type	WLED Driver
Interface Features :		Connector	No
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	YEONHO	10019HR-H06B	1 pcs	1.0 mm	6 pins	BLE-6PINS-CCAACC

LG Display LM215WF3-SLC1 Packing Features

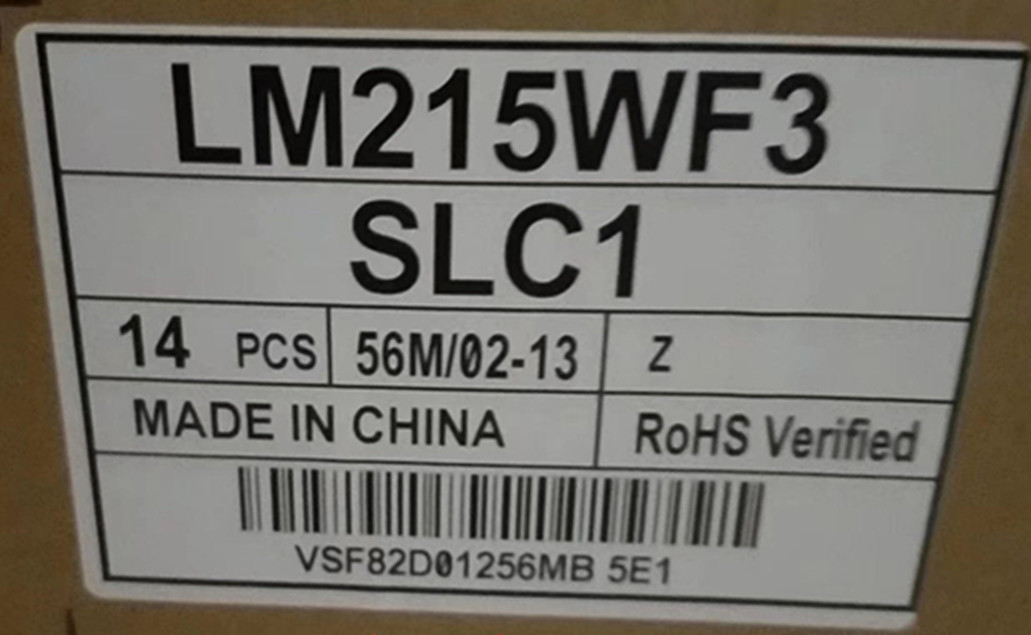

Package Carton :	Amount	Weight	Carton Size
Package Carton :	14 pcs / box	-	365×315×570 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
