BOE NV140QUM-N53 Application Details
| Basic Info : | Panel Brand | | Panel Model | NV140QUM-N53 |
| Diagonal Size | 14.0" | Application | |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | BOE07C8 |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS State | | Vibration Rating | - |
BOE NV140QUM-N53 Mechanical Details
| Pixel Features : | Pixel Format | 3840(RGB)×2160 [UHD] | Dot Pitch | 0.02685×0.08055 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.08055×0.08055 mm (H×V) [315PPI] |
| Mechanical Size : | Display Area | 309.31×173.99 mm (H×V) | Bezel Area | - |
| Outline Dim. | 315.01×196.14 mm (H×V) | Outline Depth | 2.2/2.4 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Holes & Brackets : | Without |
| Other Features : | Weight | 215g (Max.) | Surface | Hard coating (3H) |
BOE NV140QUM-N53 Optical Details
| Basic Information : | Brightness | 500 cd/m² (Typ.), HDR400 | Contrast Ratio | 1400:1 (Typ.) (Transmissive) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ADS, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.67 (Max.)(5/13 points) |
| 1931 Color Gamut : | NTSC Ratio | 88% | sRGB | 100% coverage |
| Adobe RGB | 87% coverage | DCI-P3 | 91% coverage |
| Rec.2020 | 66% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE NV140QUM-N53 Backlight Details
| Back-light Features: | Lamp Shape | 8 strings | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
| Replacement | - | Amount | 10S8P | Position | Edge light type |
| Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 5.0/12.0/24.0V (Min./Typ./Max.) | Current Input | - |
| Consumption | 5.7W (Max.) |
BOE NV140QUM-N53 Interface Details
| Signal Systerm : | eDP (4 Lanes), eDP1.3, HBR2 (5.4G/lane) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 424.2/466.7mA (Typ./Max.) |
| Consumption | 1.7W (Max.) |

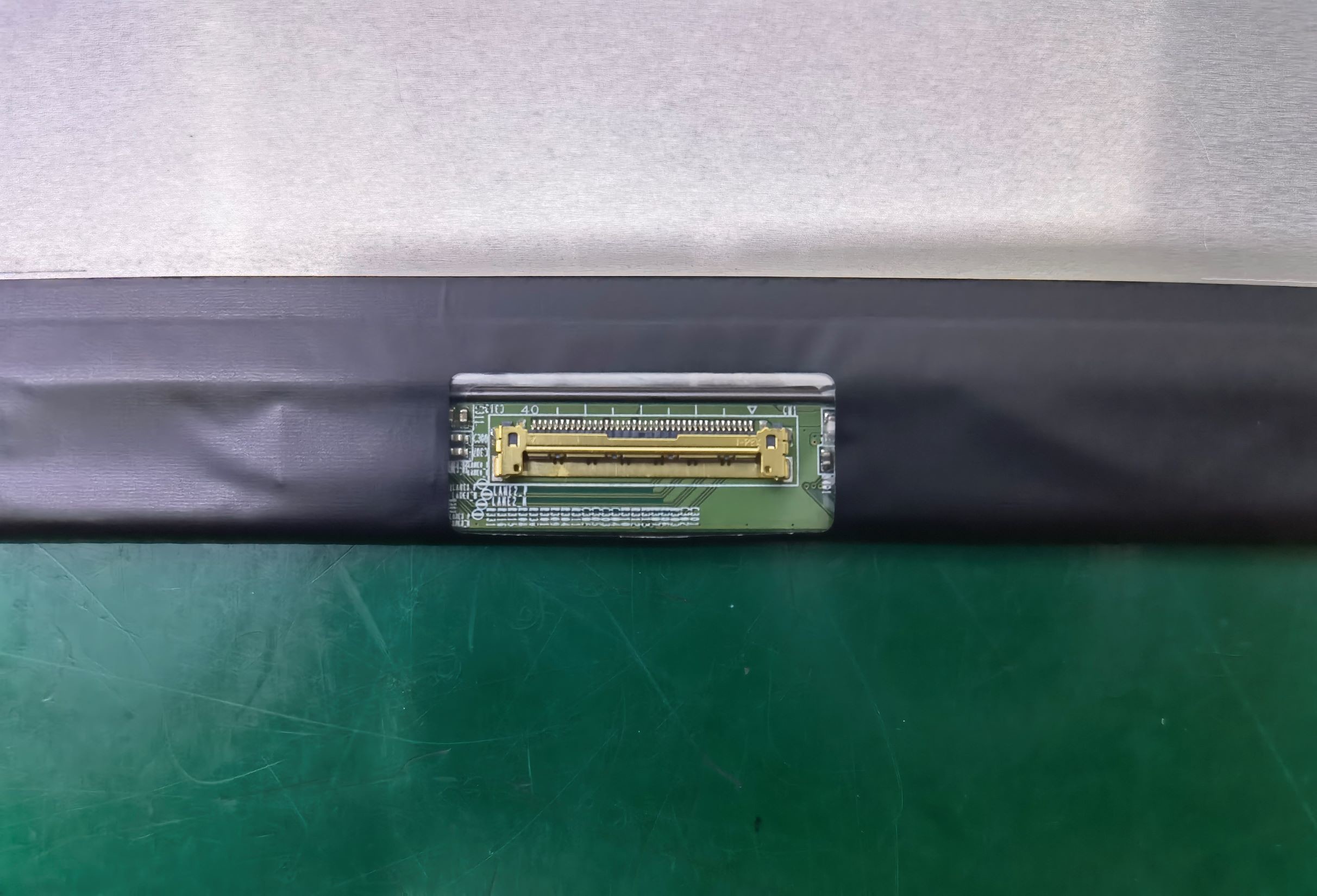

| Interface Features : | Type | Connector | Position | | |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSAK24025P40 | 0.5 mm | 40 pins | 1 pcs |
whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 315 PPI. As for mechanical detail, it features active area of 309.31(W)×173.99(H) mm, outline size of 315.01(W)×196.14(H)×2.4(D) mm, with surface treament of Hard coating (3H), net weight of 215g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV140QUM-N53 can provides 500 cd/m² display brightness 1400:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (DCI-P3). This product adopted 10S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV140QUM-N53 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
|
|
NV140QUM-N53 BOE 14.0" 3840(RGB)×2160, 500 cd/m² INDUSTRIAL LCD DISPLAY Images
|
