ET104S0M-N16 BOE 10.4" 800(RGB)×600, 350 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

ET104S0M-N16 BOE 10.4" 800(RGB)×600, 350 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2

Brand Name : BOE

Model Number : ET104S0M-N16

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : BOE

Diagonal Size : 10.4"

Resolution : 800(RGB)×600, SVGA 96PPI

Outline Dim. : 236(W)×176.9(H)×5.9(D) mm

Luminance : 350 cd/m² (Typ.)

Viewing Angle : 80/80/65/75 (Typ.)(CR≥10)

Environment : Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

Contact Now

BOE ET104S0M-N16 Application Features

Basic Information : Brand Name Model Name Type Model Alias
  ET104S0M-N16 a-Si TFT-LCD , LCM BA104S01-300-3HP0
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
  -20 ~ 70 °C -30 ~ 80 °C



BOE ET104S0M-N16 Mechanical Features

Screen Size : 10.4"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
800(RGB)×600, SVGA RGB Vertical Stripe 0.088×0.264 mm 0.264×0.264 mm [96PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
211.2×158.4 mm 215.0×162.0 mm 236×176.9 mm 5.6±0.3 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
300g (Max.) - Antiglare (Haze 25%)
Holes & Brackets : Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel



BOE ET104S0M-N16 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
350 cd/m² (Typ.) TN, Normally White, Transmissive 800:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
12 o'clock 80/80/65/75 (Typ.)(CR≥10) 30 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
8381K 262K/16.7M (6-bit / 6-bit + Hi-FRC) X:0.285; Y:0.320
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
54% 76% 57%
DCI-P3 Coverage Rec.2020 Coverage Remarks
57% 41% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25/1.43 (Typ./Max.)(9 points)



BOE ET104S0M-N16 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
WLED Edge light type (Top side) 30K(Min.) 6S4P Array -
WLED Electrical : Input Voltage Input Current Power Consumption
19.8V (Typ.) 110mA (Typ.) 1.92/1.98W (Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
STM MSB24038P5 1 pcs 5 pins 1.25 mm
WLED Driver Electrical : Input Voltage Input Current Power Consumption
12.0±1.2V - 2.42/2.84W (Typ./Max.)



BOE ET104S0M-N16 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 180/230mA (Typ./Max.) 0.59/0.76W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 6/8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
STM MSB24013P20 1 pcs 20 pins 1.0 mm



whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 211.2(W)×158.4(H) mm, outline size of 236(W)×176.9(H)×5.9(D) mm, viewing area size of 215.0(W)×162.0(H) mm, with surface treament of Antiglare (Haze 25%), net weight of 300g (Max.). As a TN, Normally White, Transmissive LCM product, ET104S0M-N16 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/65/75 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 55% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours, With LED Driver. ET104S0M-N16 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.)



ET104S0M-N16 BOE 10.4" 800(RGB)×600, 350 cd/m² INDUSTRIAL LCD DISPLAY


Buy cheap ET104S0M-N16 BOE 10.4" 800(RGB)×600, 350 cd/m² INDUSTRIAL LCD DISPLAY product

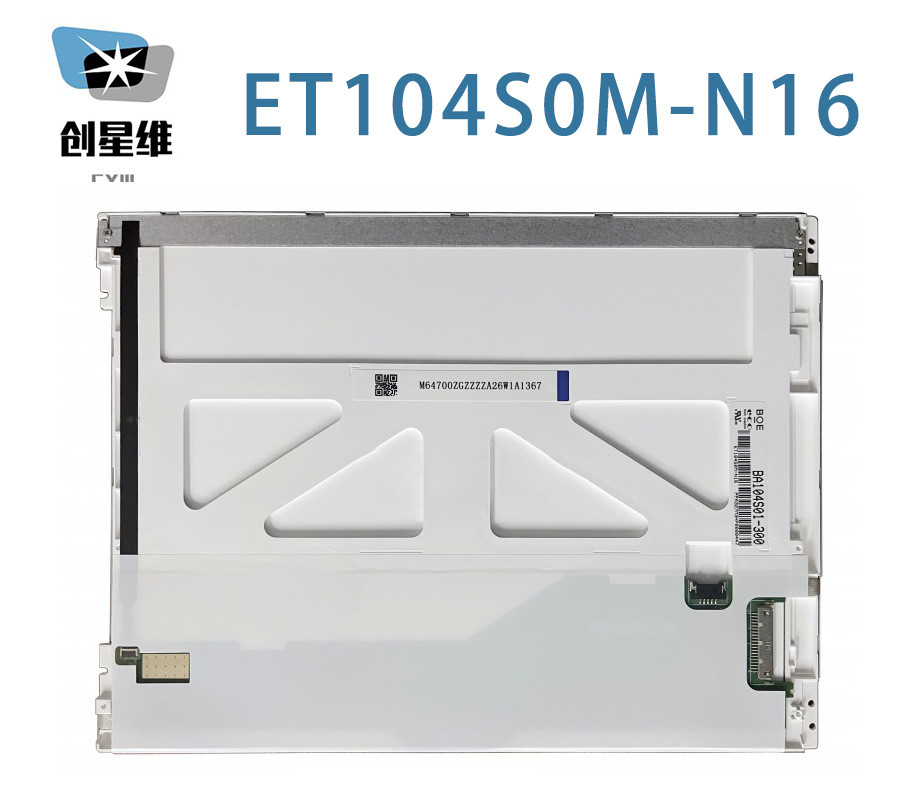

ET104S0M-N16 BOE 10.4" 800(RGB)×600, 350 cd/m² INDUSTRIAL LCD DISPLAY Images
