HSD101PWW1-H00 HannStar 10.1" 1280(RGB)×800, 300 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

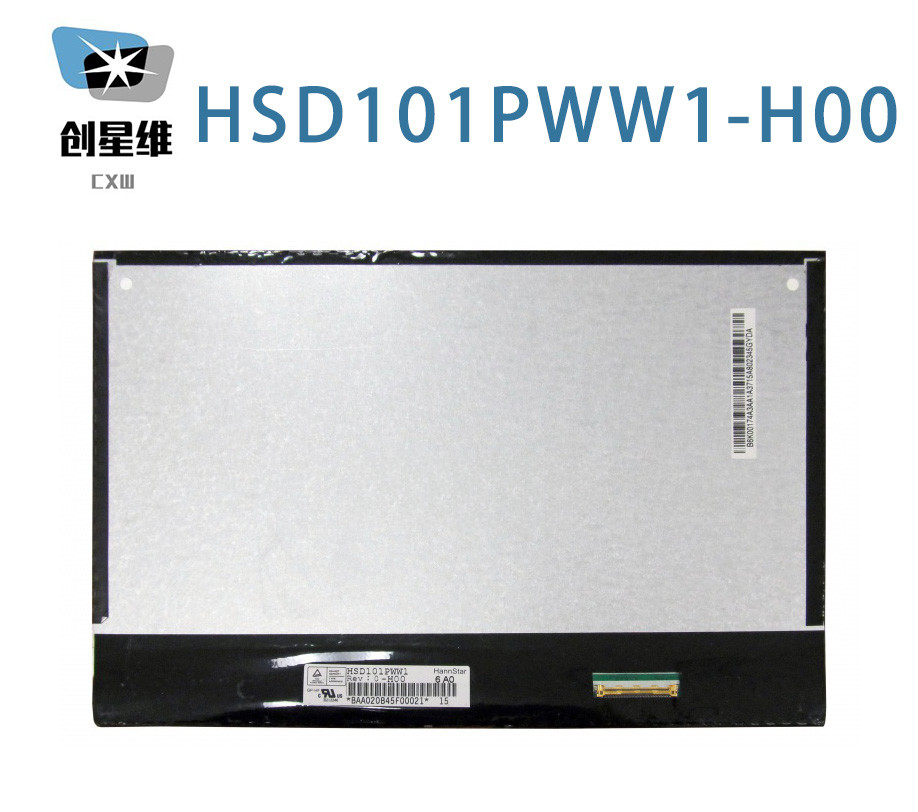

HSD101PWW1-H00 HannStar 10.1" 1280(RGB)×800, 300 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : HannStar

Model Number : HSD101PWW1-H00

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : HannStar

Diagonal Size : 10.1"

Resolution : 1280(RGB)×800, WXGA 149PPI

Outline Size : 229.46(W)×149.2(H)×5.2(D) mm

Luminance : 300 cd/m² (Typ.)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Max. Ratings : Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Contact Now

HannStar HSD101PWW1-H00 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
  HSD101PWW1-H00 a-Si TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
  0 ~ 50 °C -20 ~ 60 °C



HannStar HSD101PWW1-H00 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
300 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 25 (Typ.)(Tr+Td)
Best View on Display Mode Contrast Ratio
Symmetry IPS Pro, Normally Black, Transmissive 800 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
45% 63% 47%
DCI-P3 Coverage Rec.2020 Coverage Remarks
46% 33% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.50 (Max.)(5/13 points)



HannStar HSD101PWW1-H00 Mechanical Features

Panel Size : 10.1"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1280(RGB)×800 [WXGA] RGB Vertical Stripe 0.1695×0.1695 [149PPI] 0.0565×0.1695
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
216.96(H) × 135.6(V) - 229.46(H) × 149.2(V) 2.8/5.2 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:10 (H:V)
Mounting : Without
Other Detail : Weight Panel Cover Treatment
198g (Max.) - Hard coating



HannStar HSD101PWW1-H00 Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type - - 10K(Min.) -
Interface Features : Position Backlight Driver Type
- With LED Driver Included in signal interface
Driver Electrical : Voltage Supply Current Supply Power Consumption
4.5/5.5V (Min./Max.) - 2.91W (Max.)





HannStar HSD101PWW1-H00 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.) 0.27A (Typ.) 1.0W (Max.)
Interface Features : Position Signal Type
- LVDS (1 ch, 6-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
I-PEX 20455-040E-12 0.5 mm 40 pins 1 pcs



whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 216.96(W)×135.6(H) mm, outline size of 229.46(W)×149.2(H)×5.2(D) mm, with surface treament of Hard coating, net weight of 198g (Max.). As a IPS Pro, Normally Black, Transmissive LCM product, HSD101PWW1-H00 can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With LED Driver. HSD101PWW1-H00 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
