IVO M133NWFC R2 Application Features
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
| | M133NWFC R2 | a-Si TFT-LCD , LCM | - |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| | 0 ~ 50 °C | -20 ~ 60 °C |
IVO M133NWFC R2 Mechanical Features
| Screen Size : | 13.3" |
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.051×0.153 mm | 0.153×0.153 mm [166PPI] |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 293.76×165.24 mm | - | 298.76×177.04 mm | 3.8W (Typ.) mm |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Slim (PCBA Bent, T≤3.0mm) |
| Other Spec : | Mass | Panel Cover | Surface Treatment |
| 195g (Max.) | - | Antiglare |
| Holes & Brackets : | Without |
IVO M133NWFC R2 Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
| 1250 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 2000:1 (Typ.) (Transmissive) |
| Good View at | Viewing Angle | Response Time |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 30 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 100% | 74% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| White Uniformity : | 1.54/1.82 (Typ./Max.)(13 points) |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable |
IVO M133NWFC R2 Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
| WLED | Edge light type | 15K(Min.) | - | - | - |
| Interface Features : | WLED Driver State | Physical Type | Interface Position |
| With LED Driver | Included in signal interface | - |
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption |
| 5/12/21V (Min./Typ./Max.) | - | 5.14W (Max.) |
IVO M133NWFC R2 Interface Features
| Signal Electrical : | Input Voltage | Input Current | Power Consumption |
| 3.3V (Typ.) | - | 0.6/0.75W (Typ./Max.) |
| Interface Features : | Signal Type | Physical Type | Interface Position |
| eDP (2 Lanes), eDP1.4 | Connector | |
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20455-030E-66 | 1 pcs | 30 pins | 0.5 mm | EDP-30P2L-020A |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 293.76(W)×165.24(H) mm, outline size of 298.76(W)×177.04(H) mm, with surface treament of Antiglare, net weight of 195g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, M133NWFC R2 can provides 1250 cd/m² display brightness 2000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. M133NWFC R2 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

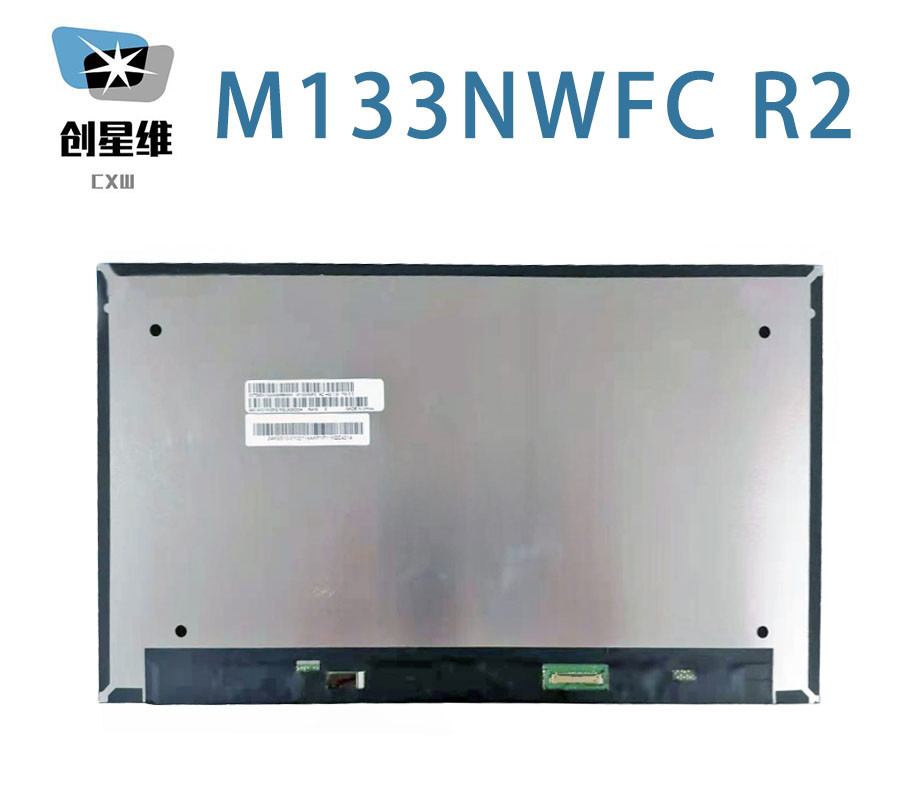

M133NWFC R2 IVO 13.3" 1920(RGB)×1080, 1250 cd/m² INDUSTRIAL LCD DISPLAY Images
|
