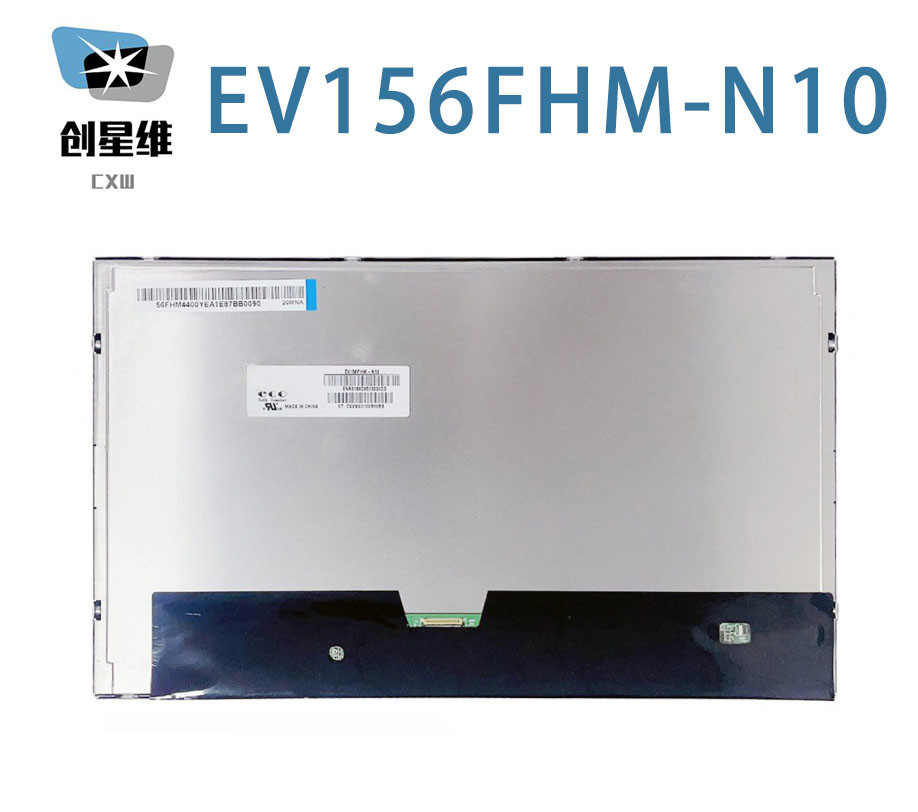

EV156FHM-N10 BOE 15.6" 1920(RGB)×1080, 500 cd/m² INDUSTRIAL LCD DISPLAY

Sapientia Display Co.,LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

EV156FHM-N10 BOE 15.6" 1920(RGB)×1080, 500 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : BOE

Model Number : EV156FHM-N10

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Delivery Time : 1-2DAYS

Packaging Details : STANDARD PACKING

Brand : BOE

Diagonal Size : 15.6"

Resolution : 1920(RGB)×1080, FHD 141PPI

Outline (mm) : 363.8×216×9.9 (H×V×D)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Max. Ratings : Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C

Contact Now

BOE EV156FHM-N10 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
  EV156FHM-N10 a-Si TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
  0 ~ 60 °C -20 ~ 60 °C



BOE EV156FHM-N10 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
500 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 20 (Typ.)(Tr+Td)
Best View on Display Mode Contrast Ratio
Symmetry ADS, Normally Black, Transmissive 1200 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamut : NTSC Ratio sRGB Coverage Adobe RGB Coverage
79% 99% 80%
DCI-P3 Coverage Rec.2020 Coverage Remarks
82% 59% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.33 (Typ./Max.)(9 points)



BOE EV156FHM-N10 Mechanical Features

Panel Size : 15.6"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1920(RGB)×1080 [FHD] RGB Vertical Stripe 0.17925×0.17925 [141PPI] 0.05975×0.17925
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
344.16(H) × 193.59(V) 348.2(H) × 197.6(V) 363.8(H) × 216(V) 9.6±0.3 mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:9 (H:V)
Mounting : Side mounting holes (4 pcs) on left, right bezel
Other Detail : Weight Panel Cover Treatment
850g (Max.) - Hard coating



BOE EV156FHM-N10 Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type 8S4P 4 strings 50K(Min.) -
Interface Features : Position Backlight Driver Type
- With LED Driver Included in signal interface
Driver Electrical : Voltage Supply Current Supply Power Consumption
12.0±1.2V - 8.8W (Max.)



BOE EV156FHM-N10 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.) 300mA (Typ.) 4.2W (Max.)
Interface Features : Position Signal Type
  eDP (2 Lanes), HBR1 (2.7G/lane) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
STM MSAK24025P30 0.5 mm 30 pins 1 pcs EDP-30P2L-020T



whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 344.16(W)×193.59(H) mm, outline size of 363.8(W)×216(H)×9.9(D) mm, viewing area size of 348.2(W)×197.6(H) mm, with surface treament of Hard coating, net weight of 850g (Max.). As a ADS, Normally Black, Transmissive LCM product, EV156FHM-N10 can provides 500 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 79% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. EV156FHM-N10 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.)
