BOE NV126B5M-N42 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
| | NV126B5M-N42 | a-Si TFT-LCD , LCM | BOE0921 |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| | 0 ~ 60 °C | -20 ~ 65 °C |
BOE NV126B5M-N42 Mechanical Features
| Panel Size : | 12.6 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1920(RGB)×515 | RGB Vertical Stripe | 0.0537×0.1611 mm | 0.1611×0.1611 mm [157PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 309.312×82.9665 mm | - | 315.61×94.02 mm | 3.0/5.0 (Typ./Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | >3:1 (W : H) | Landscape type | |
| Fixation : | Without |
| Other Features : | Panel Cover | Weight | Surface |
| - | 175g (Max.) | Antiglare (Haze 40%), Hard coating |
BOE NV126B5M-N42 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 400 cd/m² (Typ.) | ADS, Normally Black, Transmissive | 1200:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6832K | 16.7M (8-bit) | X:0.308; Y:0.322 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 67% | 50% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.50 (Max.)(5/13 points) |
BOE NV126B5M-N42 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 136/152mA (Typ./Max.) | 3.3V (Typ.) | 0.5W (Max.) |
| Interface Features : | Position | Type | Interface |
| - | Connector | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJU | IS050-L30B-C10 | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020V |
BOE NV126B5M-N42 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type | 6 strings | 8S6P | 15K(Min.) | - |
| Interface Features : | Position | Type | WLED Driver |
| - | Included in signal interface | With LED Driver |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
| 200mA (Max.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 2.4W (Max.) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 309.312(W)×82.9665(H) mm, outline size of 315.61(W)×94.02(H)×5(D) mm, with surface treament of Antiglare (Haze 40%), Hard coating, net weight of 175g (Max.). As a ADS, Normally Black, Transmissive LCM product, NV126B5M-N42 can provides 400 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 45% (NTSC). This product adopted 8S6P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NV126B5M-N42 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
|
|

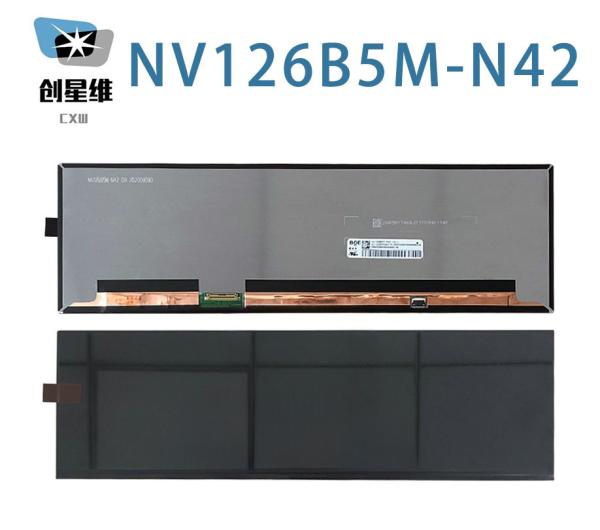

NV126B5M-N42 BOE 12.6" 1920(RGB)×515 400 cd/m² INDUSTRIAL LCD DISPLAY Images
|
